Simplicity 9518 Series User Manual

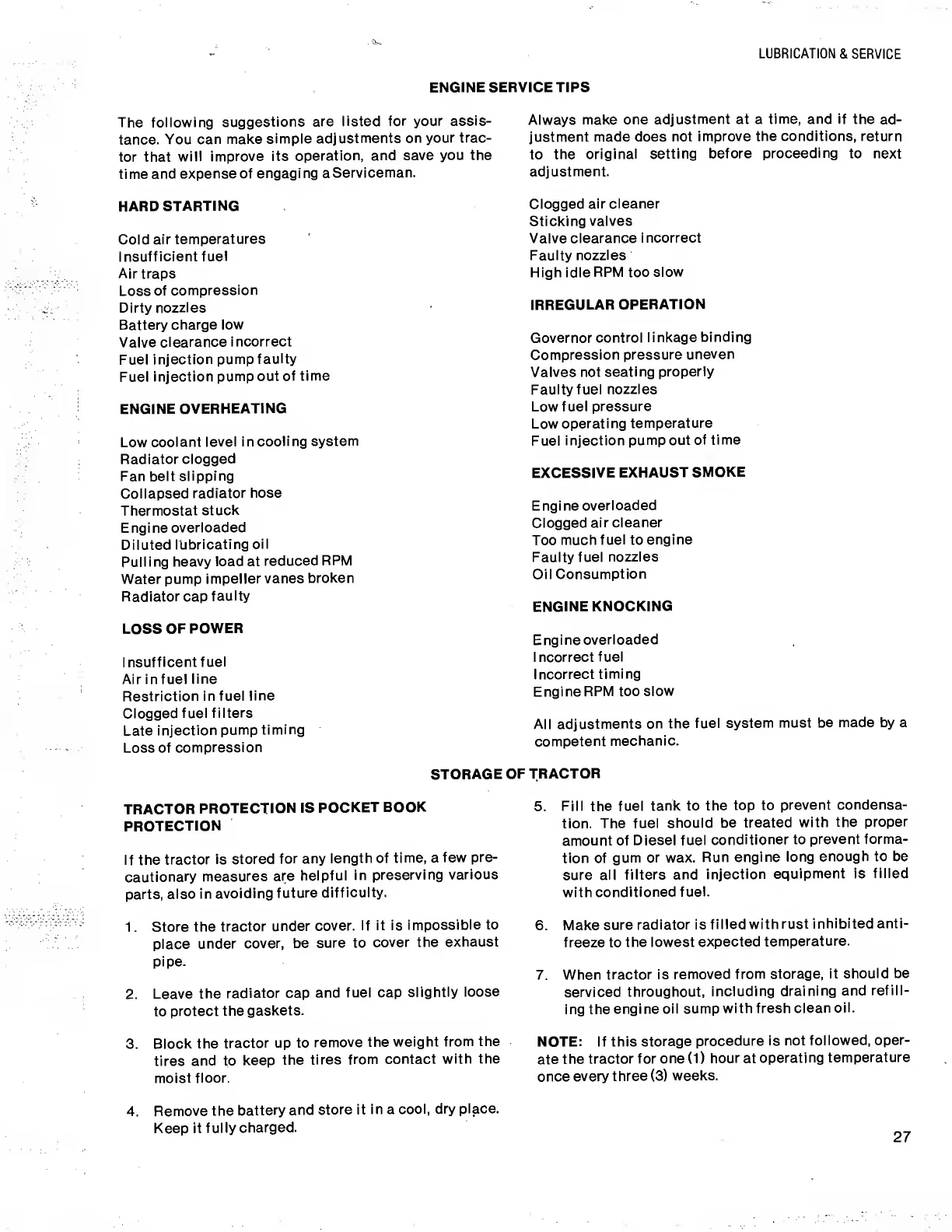

LUBRICATION & SERVICE
ENGINE SERVICE TIPS
The following suggestions are listed for your assis¬
tance. You can make simple adjustments on your trac¬
tor that will improve its operation, and save you the
time and expense of engaging aServiceman.
HARD STARTING
Cold air temperatures
Insufficient fuel
Air traps
Loss of compression
Dirty nozzles
Battery charge low
Valve clearance incorrect
Fuel injection pump faulty
Fuel injection pump out of time
ENGINE OVERHEATING
Low coolant level in cooling system
Radiator clogged
Fan belt slipping
Collapsed radiator hose
Thermostat stuck
Engine overloaded
Diluted lubricating oil
Pulling heavy load at reduced RPM
Water pump impeller vanes broken
Radiator cap faulty
LOSS OF POWER
Insufficent fuel
Air in fuel line
Restriction in fuel line
Clogged fuel filters
Late injection pump timing
Loss of compression
Always make one adjustment at a time, and if the ad¬
justment made does not improve the conditions, return
to the original setting before proceeding to next
adjustment.
Clogged air cleaner
Sticking valves
Valve clearance incorrect
Faulty nozzles
High idle RPM too slow
IRREGULAR OPERATION
Governor control linkage binding
Compression pressure uneven
Valves not seating properly
Faulty fuel nozzles
Low fuel pressure
Low operating temperature
Fuel injection pump out of time
EXCESSIVE EXHAUST SMOKE
Engine overloaded
Clogged air cleaner
Too much fuel to engine
Faulty fuel nozzles
Oil Consumption
ENGINE KNOCKING
Engine overloaded
Incorrect fuel
Incorrect timing
Engine RPM too slow
All adjustments on the fuel system must be made by a
competent mechanic.
STORAGE OF TRACTOR
TRACTOR PROTECTION IS POCKET BOOK
PROTECTION
If the tractor is stored for any length of time, a few pre¬
cautionary measures are helpful in preserving various
parts, also in avoiding future difficulty.
1. Store the tractor under cover. If it is impossible to
place under cover, be sure to cover the exhaust
pipe.
2. Leave the radiator cap and fuel cap slightly loose
to protect the gaskets.
3. Block the tractor up to remove the weight from the
tires and to keep the tires from contact with the
moist floor.
5. Fill the fuel tank to the top to prevent condensa¬
tion. The fuel should be treated with the proper
amount of Diesel fuel conditioner to prevent forma¬
tion of gum or wax. Run engine long enough to be
sure all filters and injection equipment is filled
with conditioned fuel.
6. Make sure radiator is filled with rust inhibited anti¬
freeze to the lowest expected temperature.
7. When tractor is removed from storage, it should be
serviced throughout, including draining and refill¬
ing the engine oil sump with fresh cleanoil.
NOTE: If this storage procedure is not followed, oper¬
ate the tractor for one (1) hour at operating temperature
once every three (3) weeks.
4. R emove the battery and store it in a cool, dry place.
Keep it fully charged.
27
