LUBRICATION. & SERVICE
T-69355

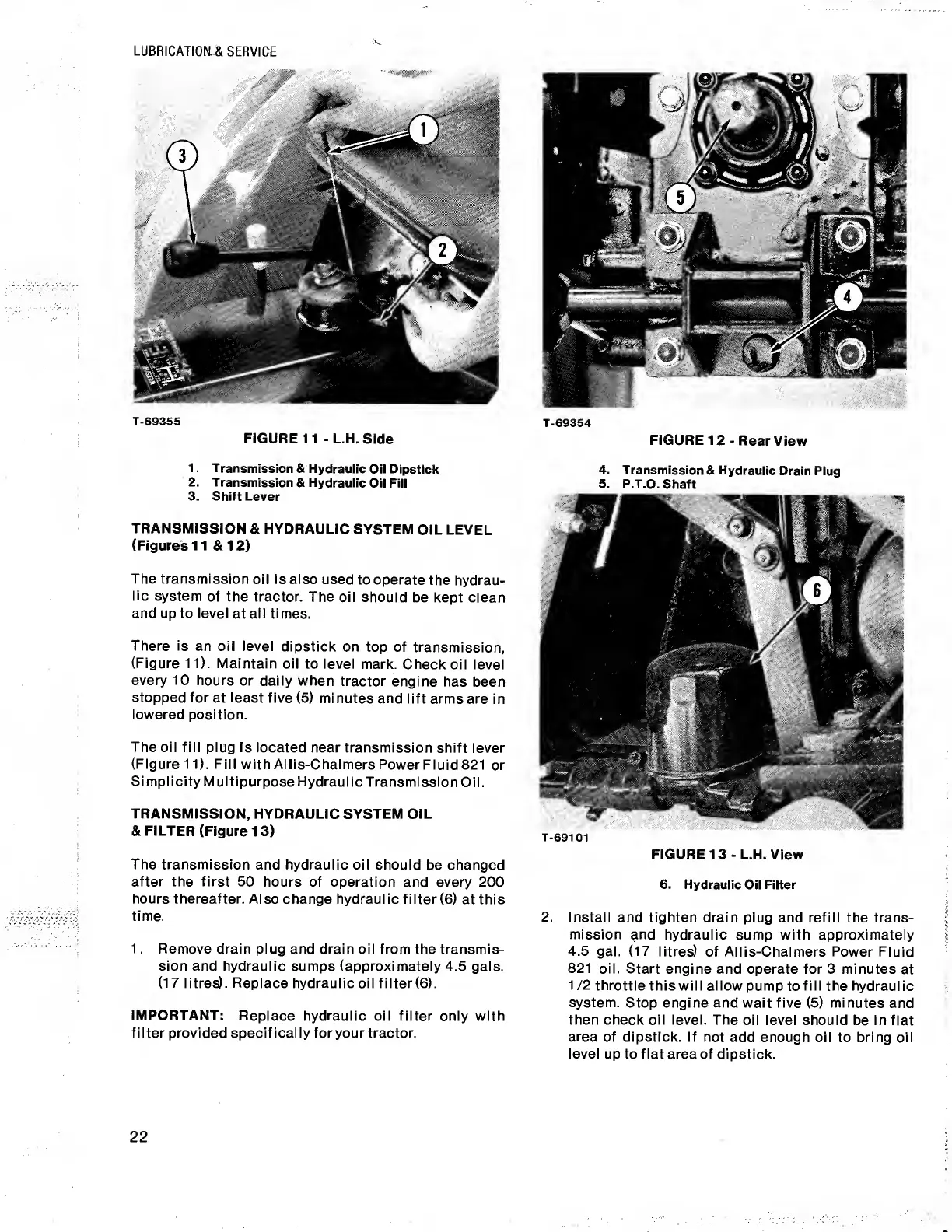

FIGURE 11 - L.H. Side
1. Transmission & Hydraulic Oil Dipstick
2. Transmission & Hydraulic Oil Fill
3. Shift Lever
TRANSMISSION & HYDRAULIC SYSTEM OIL LEVEL
(Figures 11 & 12)
The transmission oil is also used tooperate the hydrau¬
lic system of the tractor. The oil should be kept clean
and up to level at all times.
There is an oil level dipstick on top of transmission,
(Figure 11). Maintain oil to level mark. Check oil level
every 10 hours or daily when tractor engine has been
stopped for at least five (5) minutes and lift arms are in
lowered position.
The oil fill plug is located near transmission shift lever
(Figure 11). Fill with Allis-Chalmers Power Fluid 821 or
Simplicity Multipurpose Hydraulic Transmission Oil.
TRANSMISSION, HYDRAULIC SYSTEM OIL
& FILTER (Figure 13)
The transmission and hydraulic oil should be changed
after the first 50 hours of operation and every 200
hours thereafter. Also change hydraulic filter (6) at this
time.
1. Remove drain plug and drain oil from the transmis¬
sion and hydraulic sumps (approximately 4.5 gals.
(17 litres). Replace hydraulic oil fiIter (6).
IMPORTANT: Replace hydraulic oil filter only with
filter provided specifically for your tractor.
T-69354
FIGURE 12 - Rear View
4. Transmission & Hydraulic Drain Plug
5. P.T.O. Shaft
T-69101
FIGURE 13-L.H. View
6. Hydraulic Oil Filter
2. Install and tighten drain plug and refill the trans¬
mission and hydraulic sump with approximately
4.5 gal. (17 litres) of Allis-Chalmers Power Fluid
821 oil. Start engine and operate for 3 minutes at
1 /2 throttle this will allow pump to fill the hydraulic
system. Stop engine and wait five (5) minutes and
then check oil level. The oil level should be in flat
area of dipstick. If not add enough oil to bring oil
level up to flat area of dipstick.
22
