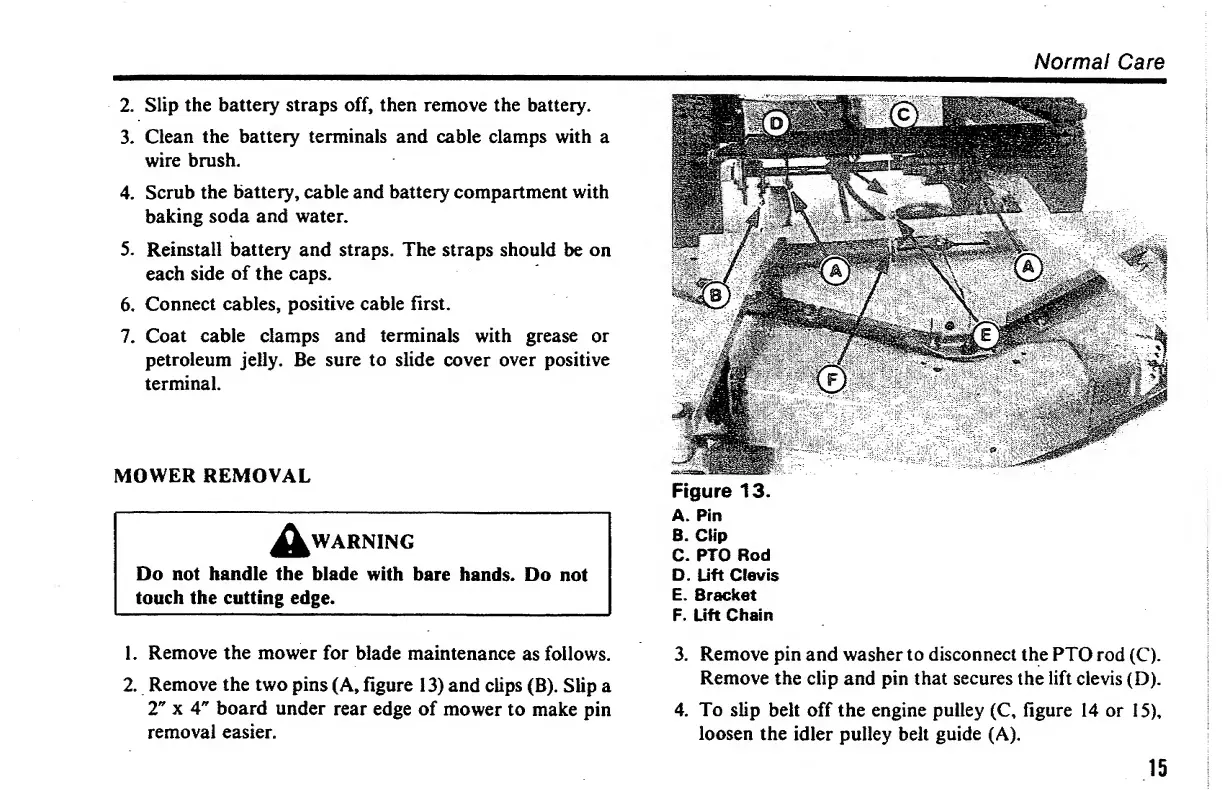

2. Slip the battery straps off, then remove the battery.
3. Clean the battery terminals and cable clamps with a
wire brush.
4. Scrub the battery, cable and battery compartment with
baking soda and water.
5. Reinstall battery and straps. The straps should be on
each side of the caps.
6. Connect cables, positive cable first.
7. Coat cable clamps and terminals with grease or
petroleum jelly. Be sure to slide cover over positive
terminal.
MOWER REMOVAL
^WARNING
Do not handle the blade with bare hands. Do not
touch the cutting edge.
1. Remove the mower for blade maintenance as follows.
2. Remove the two pins (A, figure 13) and clips (B). Slip a
2 " x 4 " board under rear edge of mower to make pin
removal easier.
Normal Care
Figure 13.
A. Pin
B. Clip
C. PTO Rod
D. Lift C!evi$
E. Bracket
F. Lift Chain
3. Remove pin and washer to disconnect the PTO rod (C).
Remove the clip and pin that secures the lift clevis (D).
4. To slip belt off the engine pulley (C, figure 14 or 15),
loosen the idler pulley belt guide (A).
15
