Troubleshooting
5. The rider with discharged battery should now start.
Reverse the jump starting procedure exactly to remove the
jumper cables. Then reinstall the vent caps and throw the
cloths away as they may have corrosive acid on them.
^WARNING
Any procedure other than the above could result in: (1)
personal injury caused by electrolyte squirting out of
the battery vents, (2) personal injury or property
damage due to the battery explosion, (3) damage to the
charging system of the booster vehicle or the other
immobilized vehicle.
Do not attempt to jump start a vehicle having a frozen
battery because the battery may rupture or explode. If
a frozen battery is suspected, examine all fill vents of
the battery. If ice can be seen, do not attempt to start
with jumper cables.
BELT REPLACEMENT
Awarning
Before starting belt replacement, place the rider on a
level surface. Stop the engine and remove the key to
prevent startup.
MOWER BELT
1. Loosen the belt guide on the idler pulley, and slip the
belt off the engine pulley.
2. For the 42" mower remove the two belt covers (A, figure
19) by removing nuts and washers at four locations (B)
and one screw (C). For the 36" mower, remove the two
screws at each end of belt cover (A, figure 20).

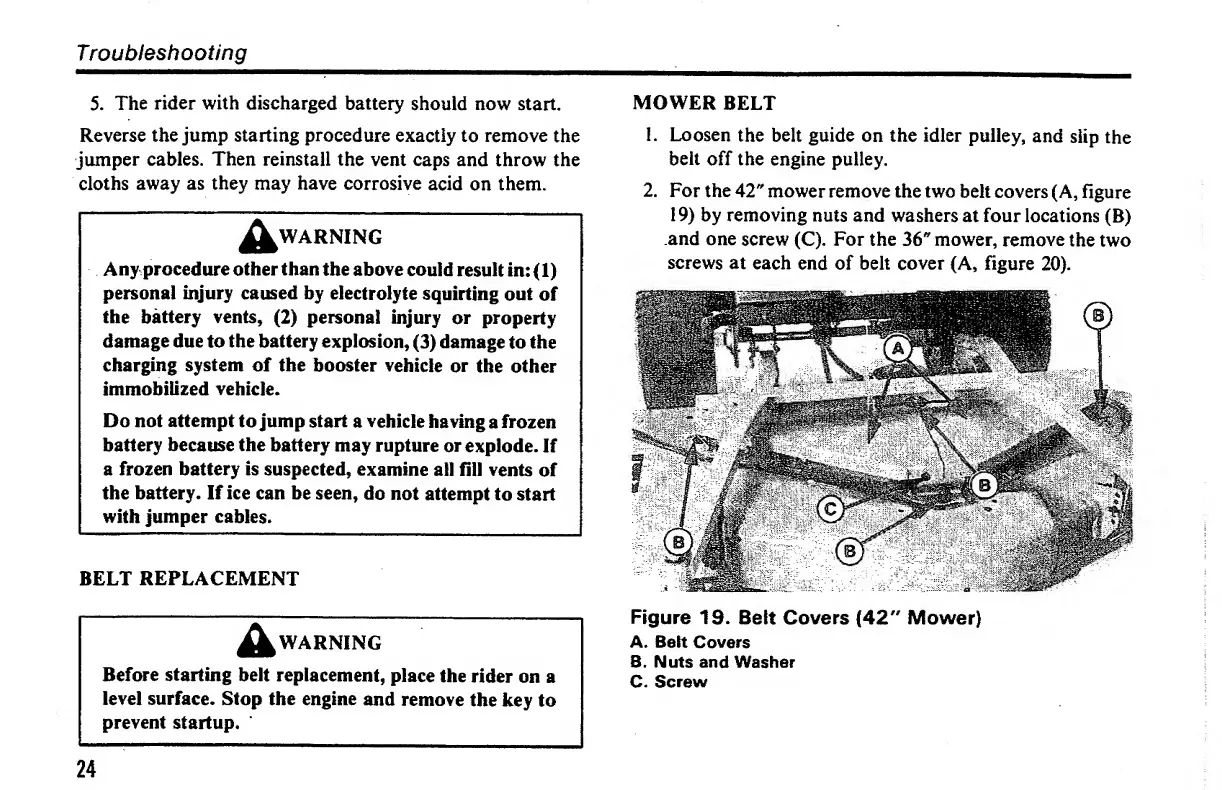

Figure 19. Belt Covers {42" Mower)
A. Belt Covers
B. Nuts and Washer
C. Screw
24
