Simplicity SunRunner 1691199 User Manual

Normal Care
Blade Installation
1. Reinstall the blade(s) with the tabs pointing upward.

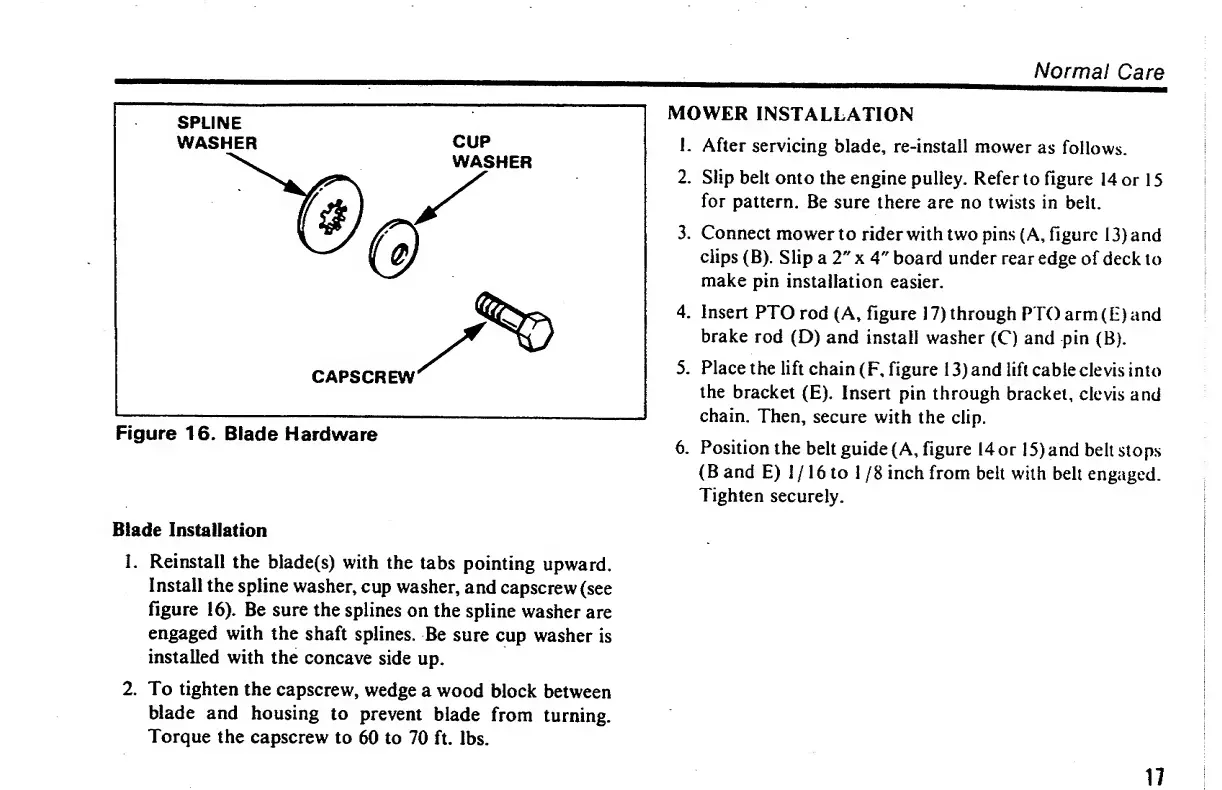

Install the spline washer, cup washer, and capscrew (see
figure 16). Be sure the splines on the spline washer are
engaged with the shaft splines. Be sure cup washer is
installed with the concave side up.
2. To tighten the capscrew, wedge a wood block between
blade and housing to prevent blade from turning.
Torque the capscrew to 60 to 70 ft. lbs.
MOWER INSTALLATION
1. After servicing blade, re-install mower as follows.
2. Slip belt onto the engine pulley. Refer to figure 14 or 15
for pattern. Be sure there are no twists in belt.
3. Connect mower to rider with two pins (A, figure 13) and
clips (B). Slip a 2" x 4" board under rear edge of deck to
make pin installation easier.
4. Insert PTOrod (A, figure 17) through PTO arm (E) and
brake rod (D) and install washer (C) and pin (B).
5. Place the lift chain (F, figure 13) and lift cable clevis into
the bracket (E). Insert pin through bracket, clevis and
chain. Then, secure with the clip.
6. Position the belt guide (A, figure 14or !5) and belt stops
(B and E) 1 /16 to 1 /8 inch from belt with belt engaged.
Tighten securely.
