Adjustments
3. Turn the blades side-to-side, and measure from outside
tips of blade to ground. If there is more than 1 /8 inch
difference, raise or lower one side of the mower. To do
this, turn in, or out, the leveling bolt at front (A, figure
27) and the leveling bolt at rear bracket (B). Be sure to
turn both bolts the same number of turns. Recheck the
measurement, then go to step 4 to check front-to-back
leveling.

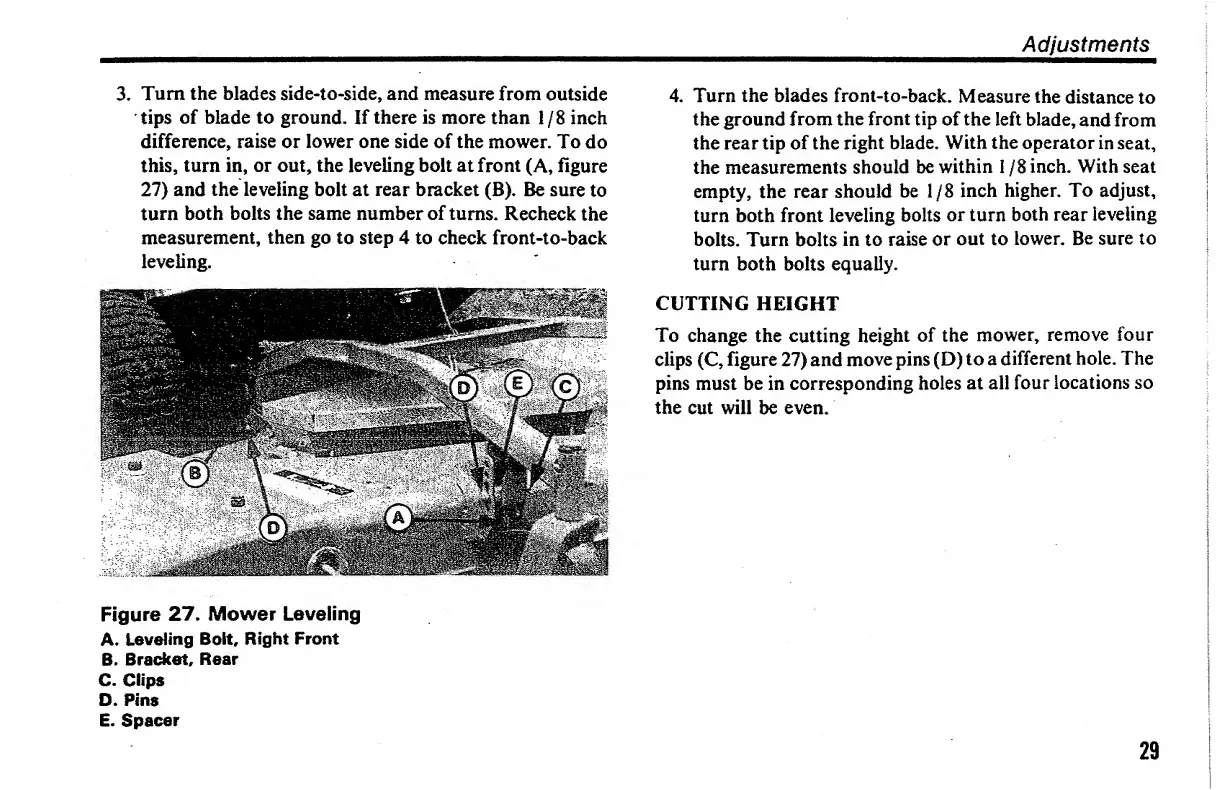

Figure 27. Mower Leveling
A. Leveling Bolt, Right Front
B. Bracket, Rear
C. Clips
D. Pins
E. Spacer
4. Turn the blades front-to-back. Measure the distance to
the ground from the front tip of the left blade, and from
the rear tip of the right blade. With the operator in seat,
the measurements should be within I /8 inch. With seat
empty, the rear should be 1/8 inch higher. To adjust,
turn both front leveling bolts or turn both rear leveling
bolts. Turn bolts in to raise or out to lower. Be sure to
turn both bolts equally.
CUTTING HEIGHT
To change the cutting height of the mower, remove four
clips (C, figure 27) and move pins (D) to a different hole. The
pins must be in corresponding holes at all four locations so
the cut will be even.
29
