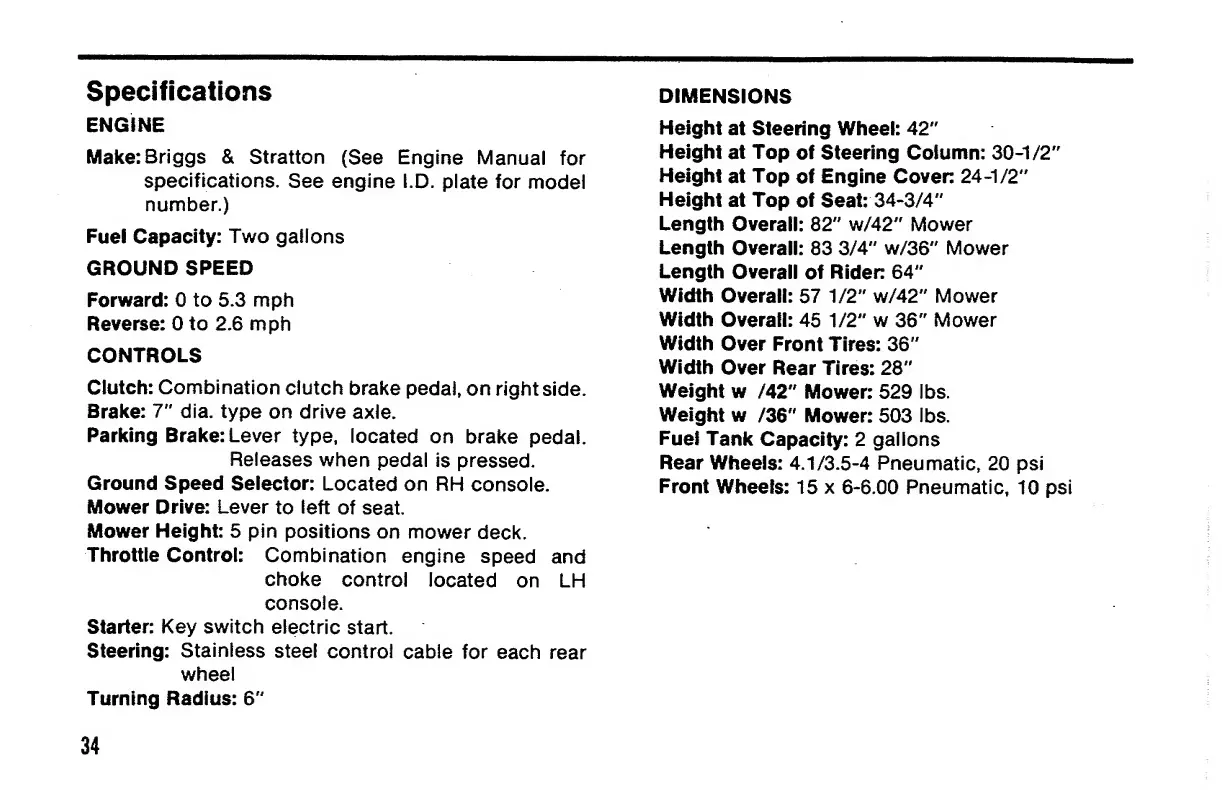

Specifications
ENGINE
Make: B r iggs & Stratton (See Engine Manual for
specifications. See engine I.D. plate for model
number.)
Fuel Capacity: Two gallons
GROUND SPEED
Forward: 0 to 5.3 mph
Reverse: 0 to 2.6 mph
CONTROLS
Clutch: Combination clutch brake pedal, on right side.
Brake: 7" dia. type on drive axle.
Parking Brake: Lever type, located on brake pedal.
Releases when pedal is pressed.
Ground Speed Selector: Located on RH console.
Mower Drive: Lever to left of seat.
Mower Height: 5 pin positions on mower deck.
Throttle Control: Combination engine speed and
choke control located on LH
console.
Starter: Key switch electric start.
Steering: Stainless steel control cable for each rear
wheel
Turning Radius: 6"
34
DIMENSIONS
Height at Steering Wheel: 42"
Height at Top of Steering Column: 30-1/2"
Height at Top of Engine Coven 24-1/2"
Height at Top of Seat: 34-3/4"
Length Overall: 82" w/42" Mower
Length Overall: 83 3/4" w/36" Mower
Length Overall of Riden 64"
Width Overall: 57 1/2" w/42" Mower
Width Overall: 45 1/2" w 36" Mower
Width Over Front Tires: 36"
Width Over Rear Tires: 28"
Weight w /42" Mower: 529 lbs.
Weight w /36" Mower: 503 lbs.
Fuel Tank Capacity: 2 gallons
Rear Wheels: 4.1/3.5-4 Pneumatic, 20 psi
Front Wheels: 15 x 6-6.00 Pneumatic, 10 psi
