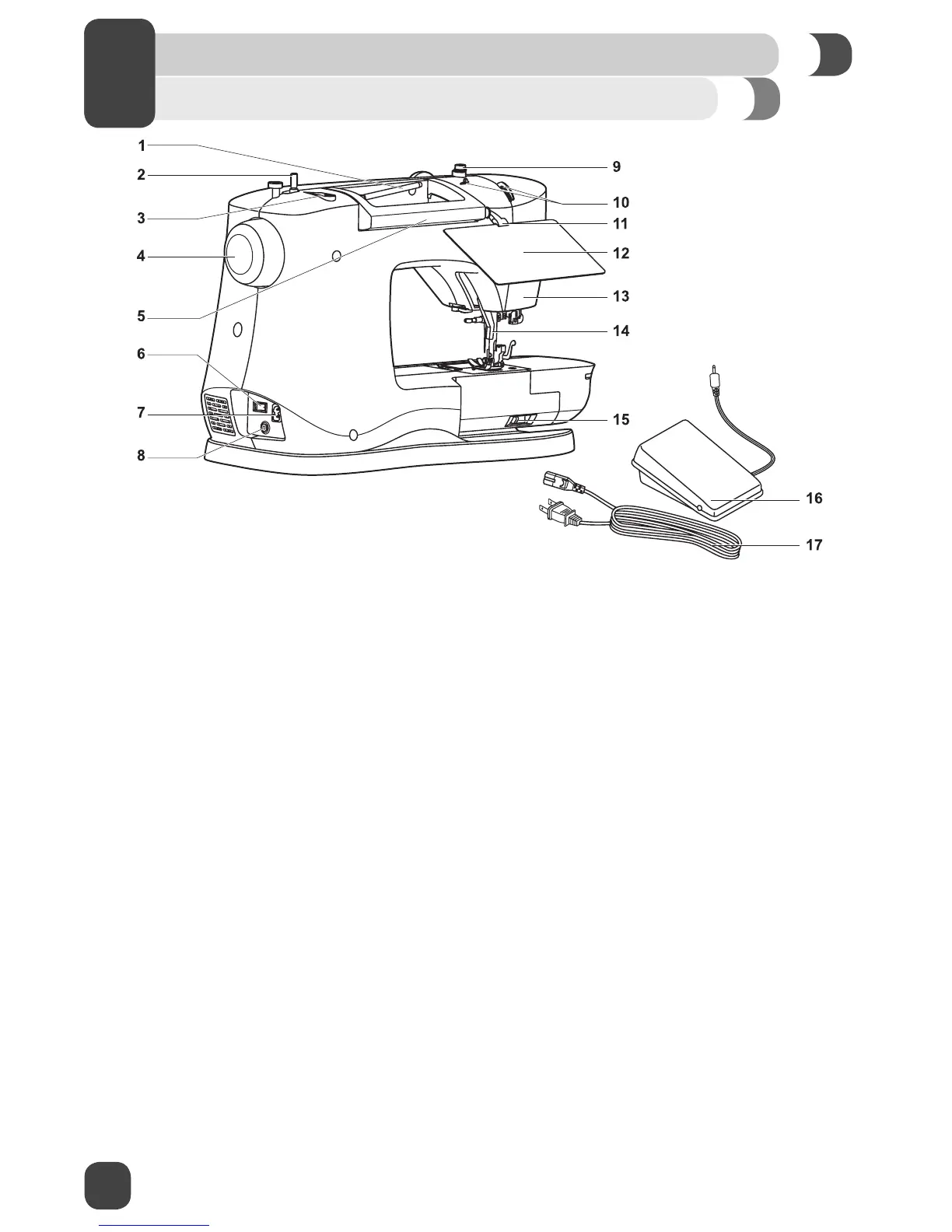

Main Parts of the Machine Back
ABOUT YOUR MACHINE
1. HORIZONTAL SPOOL PIN holds the thread spool and spool cap for the upper thread.
2. BOBBIN WINDING SPINDLE holds bobbin as it winds. (See Page 13)
3. HOLE FOR SECOND SPOOL PIN is used to hold an additional spool pin, for thread spools to be
used in upright position or for using two spools at once for twin needle sewing.
4.
HANDWHEEL (ALWAYS TURN IT TOWARD YOU)
, controls movement of the needle and the
thread take-up lever
.
5. HANDLE is used for lifting and transporting the machine.
6.
POWER AND LIGHT SWITCH turns on machine and sewing light simultaneously. (See Page 12)
7.
MAIN PLUG SOCKET is used to connect the power cord. (See Page 12)
8.
FOOT CONTROL CONNECTOR is where the foot control connects to the machine. (See Page 12)
9.
BOBBIN WINDING TENSION DISK
holds the thread snuggly to help ensure smooth and even
bobbin winding. (See Page 13)
10. PRE-TENSION THREAD GUIDES help maintain the Àow of the thread during sewing. (See Page
15)
1
1
.
STITCH CHART HOLDER is inserted into the left side of the handle to hold the Pattern Stitch Chart.
12.
STITCH PATTERN CHART
shows all available stitches for easy selection. Flip it toward you in order
to view the stitches. This chart is located in the bag where the instruction manual is stored.
13. F
ACE PLATE houses and protects the interior mechanisms of the machine.
14.
PRESSER FOOT LIFTER
raises and lowers presser foot. It should be placed up for machine
threading and down for sewing. (See Page 29)
15.
DROP FEED LEVER
controls whether the feed teeth are up for sewing or down for attaching a
button. (See Page 27)
16. FOOT
CONTROL controls sewing speed by the amount of pressure applied by user. (See Page 12)
17. POWER
CORD connects the machine to the power source. (See Page 12)
