14 S0100 / S0105 104 73 97-26

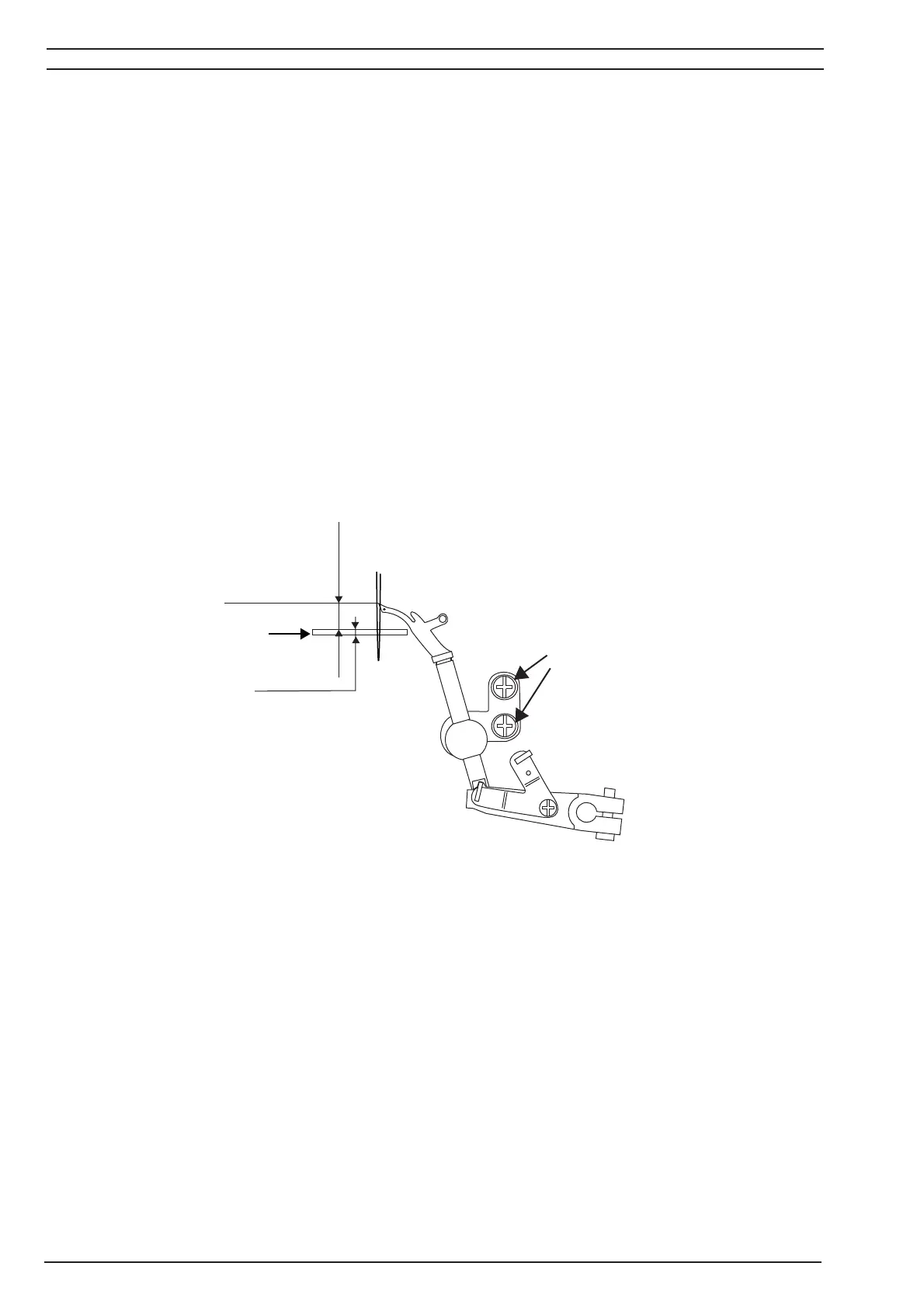

7. Upper looper retainer bracket
CHECK
When the upper looper point so its is at center of the right needle the upper looper height
should be 10 mm over the needle plate (A).
ADJUSTMENT
1. Set the upper looper point so its is at center of the right needle.
2. Loosen two upper looper retainer guide bracket screw's (B) and move upper looper retai-
ner, as required, so that the upper looper height is 10 mm over the needle plate.
3. Firmly tighten the two upper looper retainer guide bracket screws taking every care not to
move the upper looper retainer guide bracket out of position.
10 mm
2 mm
(B)
(A)
