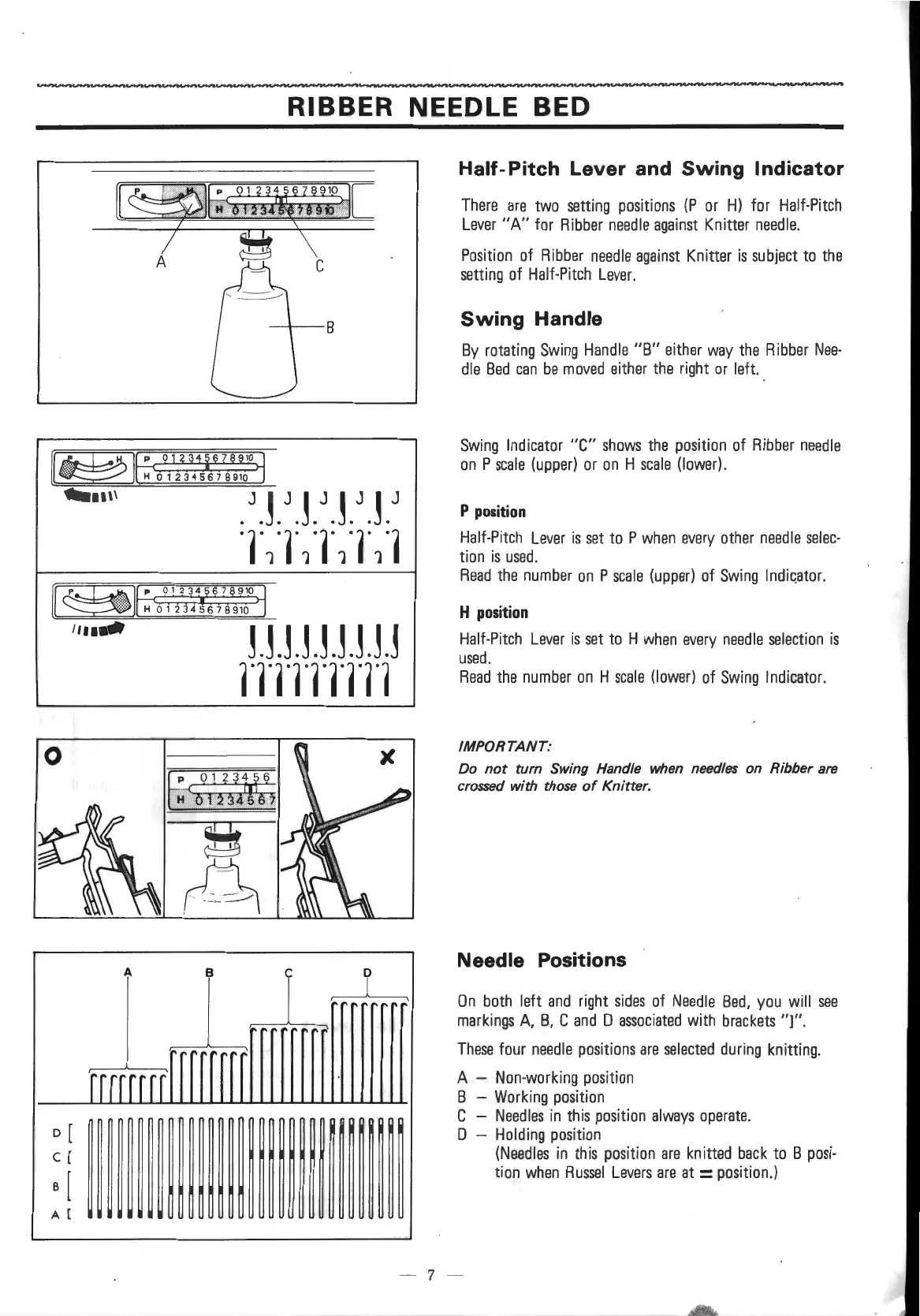

Singer SRP-50 User Manual

RIBBER NEEDLE BED
J.!.J.!.J.!.J.!.J
·j·1·j·1·i·1·j·1·j
I[ ~~I p o1234567891o 1
II ?II H 012345678910 J
D [
c [
B [
A [
, ....
Half-Pitch Lever and Swing Indicator
There are two setting positions (P or H) for Half-Pitch
Lever "A" for Ribber needle against Knitter needle.
Position of Ribber needle against Knitter is subject to the
setting of Half-Pitch Lever.
Swing Handle
By rotating Swing Handle "B" either way the Ribber Nee-
dle Bed can be moved either the right or left.
Swing Indicator "C" shows the position of Ribber needle
on P scale (upper) or on H scale (lower).
P position
Half-Pitch Lever is set to P when every other needle selec-
tion is used.
Read the number on P scale (upper) of Swing lndic;ator.
H position
Half-Pitch Lever is set to H when every needle selection is
used.
Read the number on H scale (lower) of Swing Indicator.
IMPORTANT:
Do not turn Swing Handle when needles on Ribber are
crossed with those of Knitter.
Needle Positions
On both left and right sides of Needle Bed, you will see
markings A, B, C and 0 associated with brackets "]".
These four needle positions are selected during knitting.
A -
Non-working position
B - Working position
C - Needles in this position always operate.
0 - Holding position
- 7 -
(Needles in this position are knitted back to B posi-
tion when Russel Levers are at =position.)
