Singer SRP-50 - Ribber Carriage Controls Explained

c
B
-
-
@I=
.=
=
®
-
-
J
n

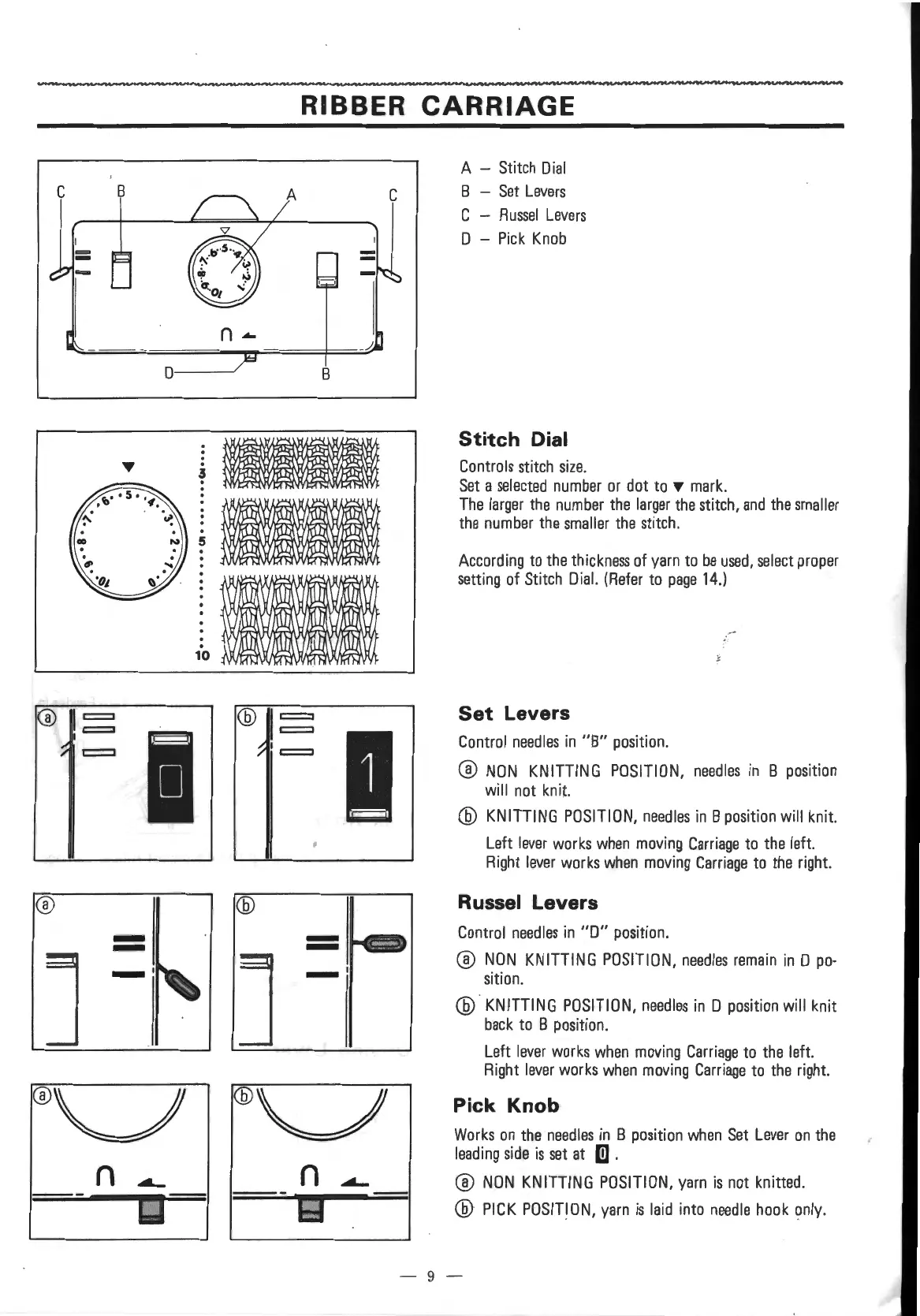

RIBBER CARRIAGE
A
c
n-
D--____/
B
~-
.
.
.
5
10
I
®
J
-I
n
g
A - Stitch Dial
B - Set Levers
C - Russel Levers
D - Pick Knob
Stitch Dial
Controls stitch size.
Set a selected number or dot to T mark .
The larger the number the larger the stitch, and the smaller
the number the smaller the stitch .
According to the thickness of yarn to be used, select proper
setting of Stitch Dial. (Refer to page 14.)
Set Levers
Control needles in "B" position.
@ NON KNITTING POSITION, needles in B position
will not knit.
@ KNITTING POSITION, needles in B position will knit.
Left
lever works when moving Carriage to the left.
Right lever works when moving Carriage to the right.
Russel Levers
Control needles in "D" position.
@ NON KNITTING POSITION, needles remain in D po-
sition.
@ KNITTING POSITION, needles in D position will knit
back to B position.
Left lever works when moving Carriage to the left.
Right lever works when moving Carriage to the right.
Pick Knob
Works on the needles in B position when Set Lever on the
leading side is set at m .
@ NON KNITTING POSITION, yarn is not knitted.
® PICK POSITION, yarn is laid into needle hook only.
- 9 -
