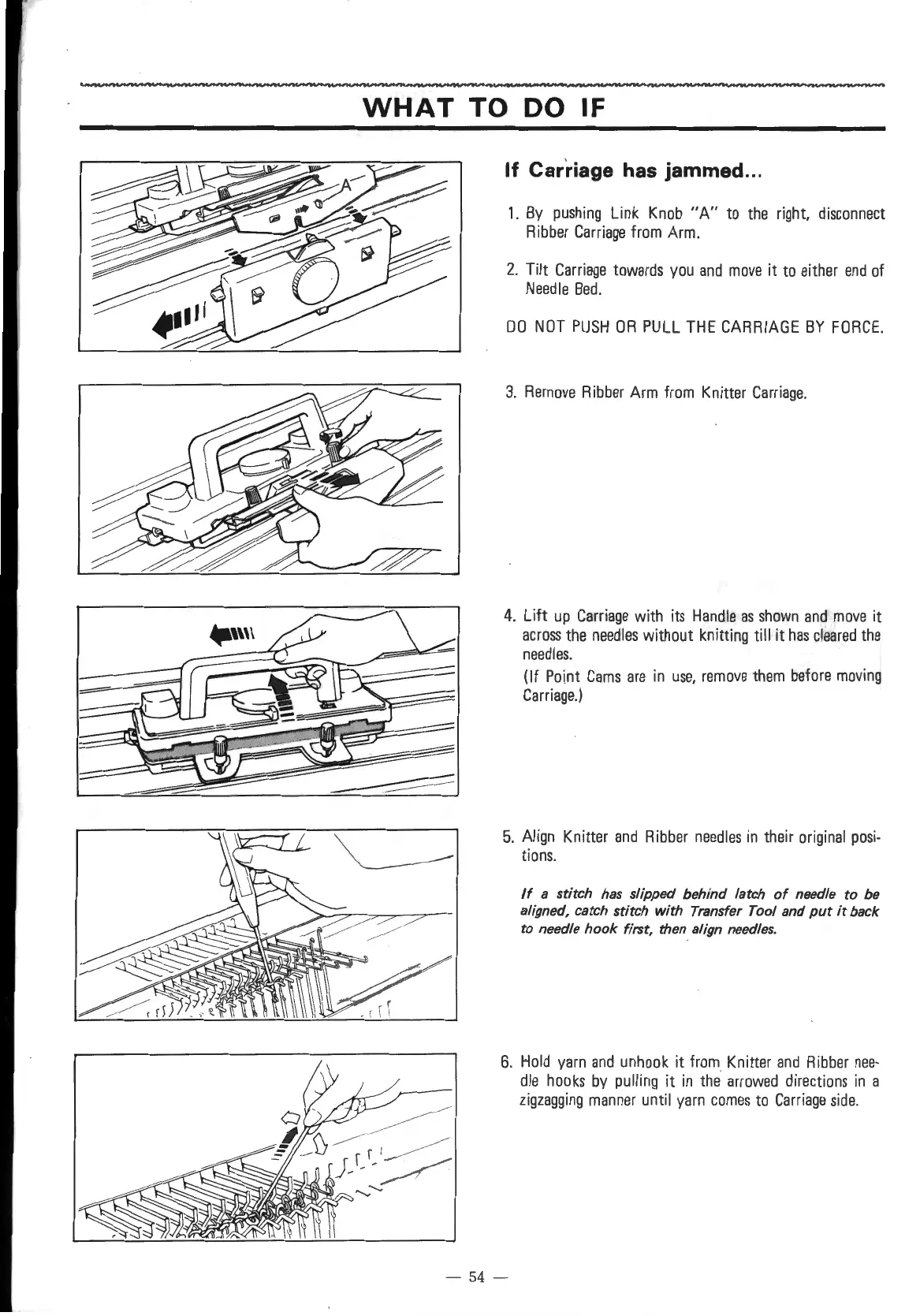

WHAT TO DO IF
If Carriage has jammed ...
1. By pushing Link Knob "A" to the right, disconnect
Ribber Carriage from Arm.
2. Tilt Carriage towards you and move it to either end of
Needle Bed .
DO NOT PUSH OR PULL THE CARRIAGE BY FORCE.
3. Remove Ribber Arm from Knitter Carriage.
4. Lift up Carriage with its Handle as shown and move it
across the needles without knitting till it has cleared the
needles .
(If
Point Cams are in use, remove them before moving
Carriage.)
5. Align Kn itter and Ribber needles in their orig i nal posi-
tions .
If a stitch has slipped behind latch of needle to be
aligned, catch stitch
with Transfer Tool and put it back
to needle hook first, then align needles.
6. Hold yarn and unhook it from Knitter and Ribber nee -
dle hooks by pulling it in the arrowed di rections in a
zigzagg i ng manner until yarn comes to Carriage side .
- 54 -
