OCTAVIA
Crank Assembly 13
Edition 01.99
S00.5125.50.20
------------
13-1 -------------
9 - 45 Nm
10 - 25 Nm
11 - Guide pulley
12 - 20 Nm
♦ Left-hand thread
13 - Belt pulley
♦ For crankshaft
14 - 100 Nm
♦ Lock flywheel for slackening and tight-
ening
Engine removed: with MP 1-504
Engine installed: with auxiliary tool
⇒ page 13-7
15 - Power steering pressure switch -F88-
♦ With sealing ring rolled on
♦ Tighten to 15 Nm
16 - Banjo bolt, 30 Nm
♦ Remove and install together with
power steering pressure switch
17 - Sealing ring
♦ Replace
18 - Pressure line
19 - Hydraulic pump
♦ For power steering
♦ Drive back threaded bushes for retain-
ing bolts slightly to more easily posi-
tion hydraulic pump against bracket
♦ Removing and installing:
⇒ Running Gear; Repair Group 48; Remov-
ing and installing hydraulic pump
20 - Belt pulley
♦ For hydraulic pump
21 - 25 Nm
22 - Ribbed V-belt
♦ Mark direction of running before re-
moving
♦ Inspect condition
⇒ Inspection and Maintenance; Descriptions
of operations; Ribbed V-belt: Inspecting con-
dition
♦ Do not kink
♦ Running diagram of ribbed V-belt
⇒ Fig. 1
♦ Removing and installing
⇒ page 13-2
Disassembling and assembling engine
Removing and installing ribbed V-belt
Note:
Before removing the ribbed V-belt, mark the di-
rection of running. If a belt which has already
been used is fitted on to run in the opposite di-
rection, it may be destroyed. Ensure the belt is
correctly fitted in the belt pulleys when installed.

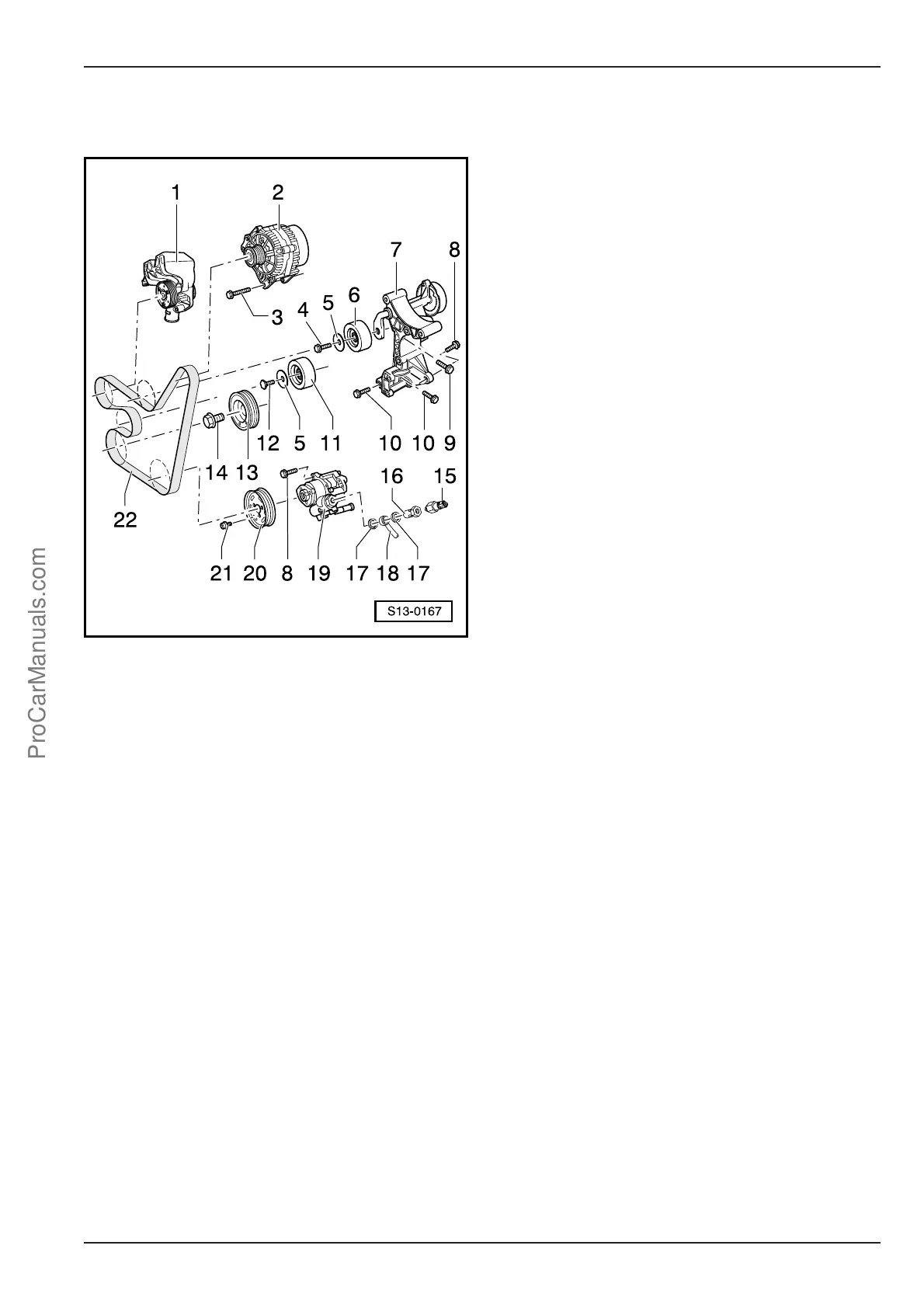

1 - Coolant pump
♦ Removing and installing
⇒ page 19-8
2 - Alternator
♦ Drive back threaded bushes for retain-
ing bolts slightly to more easily posi-
tion alternator against bracket
3 - 25 Nm
4 - 25 Nm
♦ Left-hand thread
5 - Dished washer
♦ Curved side faces out
6 - Tensioning pulley
♦ Slackening ⇒ page 13-2
7 - Bracket
8 - 25 Nm
