OCTAVIA
15
Cylinder Head/Valve Gear
Edition 06.01
S00.5125.51.20

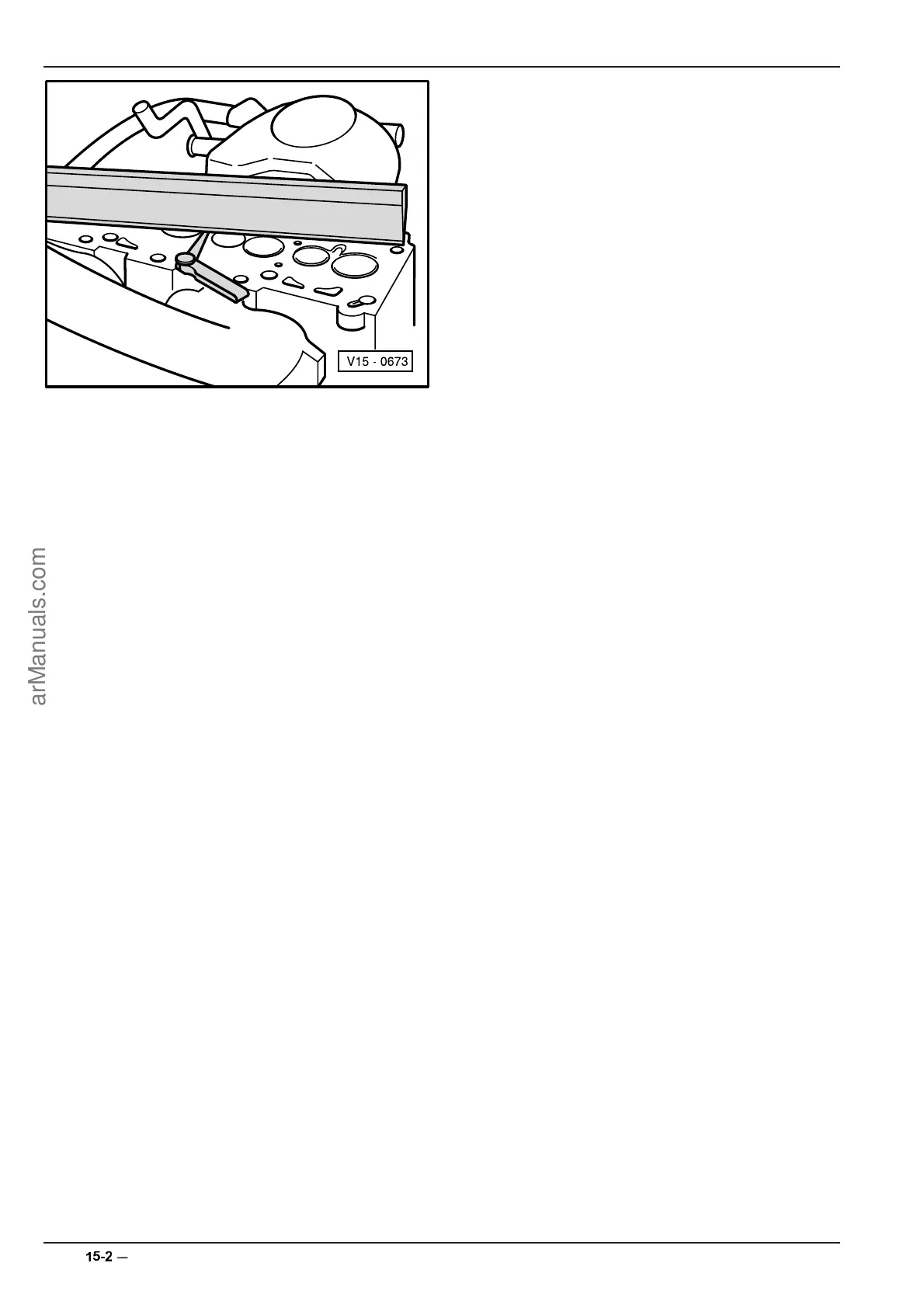

K Fig. 1 Inspecting cylinder head for distor-
tion
Special tools, testers and aids required
♦ Straightedge
♦ Feeler gauge
Max. permissible distortion: 0.05 mm
(minimum clearance of base of straightedge:
100 mm)
If the distortion is greater 0.05 mm, replace cyl-
inder head, do not rework.
Removing and installing cylinder
head
l Engine installed
Special tools, testers and aids required
♦ Drip tray, (e.g. V.A.G 1306)
♦ Pliers for spring strap clips
♦ Flat scraper
Removing
- On vehicles fitted with coded radio set, pay
attention to code, determine if necessary.
- Switch off ignition (if not already off) and dis-
connect earth strap of battery.
- Remove front exhaust pipe together with
catalytic converter ⇒ page 26-1.
- Remove noise insulation in middle and on
left.
- Drain coolant ⇒ page 19-2.
- Remove engine trim panel ⇒ page 10-2.
------------
-------------
