OCTAVIA
Cooling System 19
Edition 06.01
S00.5125.51.20
------------
19-7 -------------
Removing and installing coolant thermostat housing, rear coolant pipe
Notes:
♦ Draining and filling system with coolant
⇒ page 19-2.
♦ Do not separate coolant thermostat housing
otherwise the leaktightness of the housing
is no longer assured. If operational problems
occur at the thermostat, replace coolant ther-
mostat housing complete ⇒ Parts List.

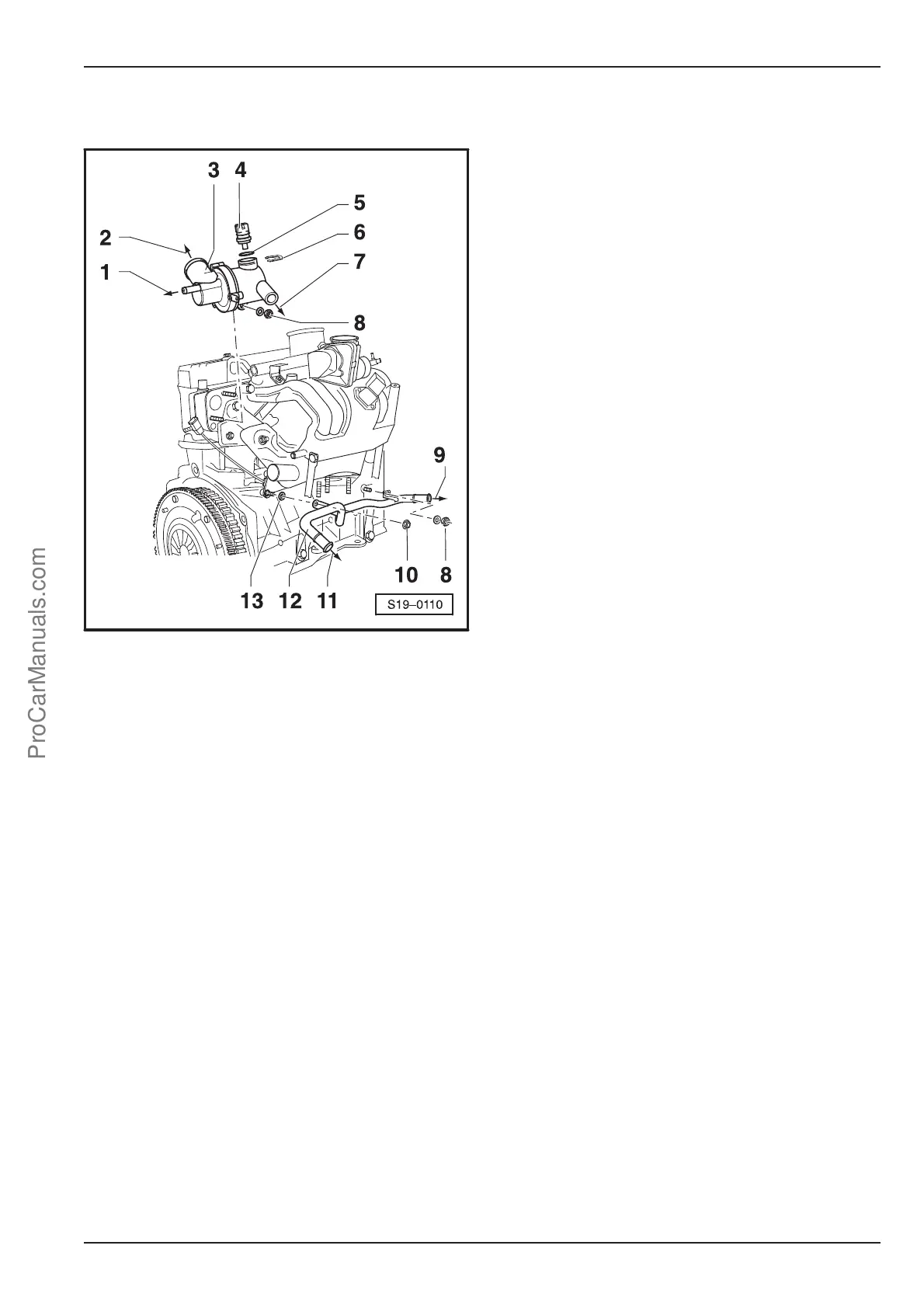

1 - To expansion reservoir
2 - To top of radiator
3 - Coolant thermostat housing
♦ with coolant thermostat
♦ start of opening: approx. 88 °C
♦ end of opening: approx. 103 °C
4 - Coolant temperature sender -G62-
♦ with coolant temperature gauge sen-
der -G2-
5 - O-ring
♦ replace
6 - Retaining clip
7 - To heat exchanger
8 - 20 Nm
9 - To front coolant pipe
10 - 10 Nm
11 - To heat exchanger
12 - Rear coolant pipe
13 - Washer
