9 SENSOR SETTING
— When choosing sensor, standard of sensor curve will be needed. If temperature sensor is set as
SGH (120ºC resistor type), sensor curve should be SGH (120
o
C resistor type); If it is set as SGD
(120ºC resistor type), sensor curve should be SGD curve.
— If there is difference between standard sensor curve and chosen sensor curve, select “defined
sensor”, and then input defined sensor curve.
— When sensor curve is inputted, X value (resistance) must be in accordance with the order of higher
to lower, otherwise errors will occur.
— When sensor is selected as “Not used”, temperature, pressure and fuel level will be display as “- - -”
in LCD.
— If there is no pressure sensor, but only has low pressure alarm switch, then you must set pressure
sensor as “Not used”, otherwise oil pressure low alarm shutdown may appear.

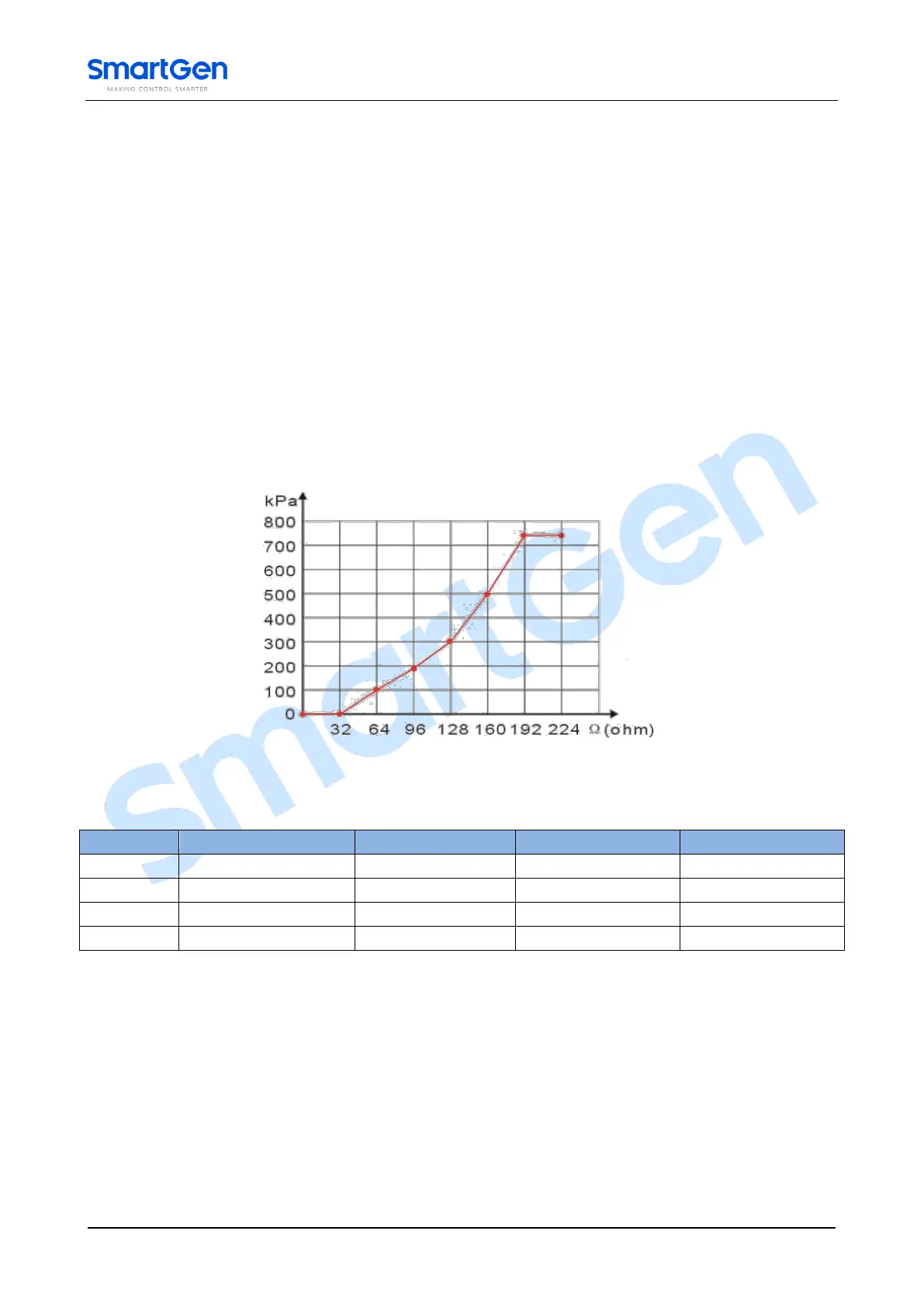

— Can set several points of forehand or backmost as the same ordinate, as the following picture:
Fig.4 – Sensor Curve
Table 12 – Conventional Pressure Unit Conversion Table
