HGM7220N/HGM7220S GENSET CONTROLLER USER MANUAL
HGM7220N/HGM7220S Genset Controller 2019-02-28 Version 1.0 Page 37 of 60
Config. Sensor 1 High Warning
Config. Sensor 1 Low Warning
Config. Sensor 1 High Shutdown
Config.Sensor 1 Low Shutdown
Config. Sensor 2 High Warning
Config. Sensor 2 Low Warning
Config. Sensor 2 High Shutdown
Config. Sensor 2 Low Shutdown
Activated when system in stop mode.
Activated when system in manual mode.
Activated when system in auto mode.
Generator On Load Indication

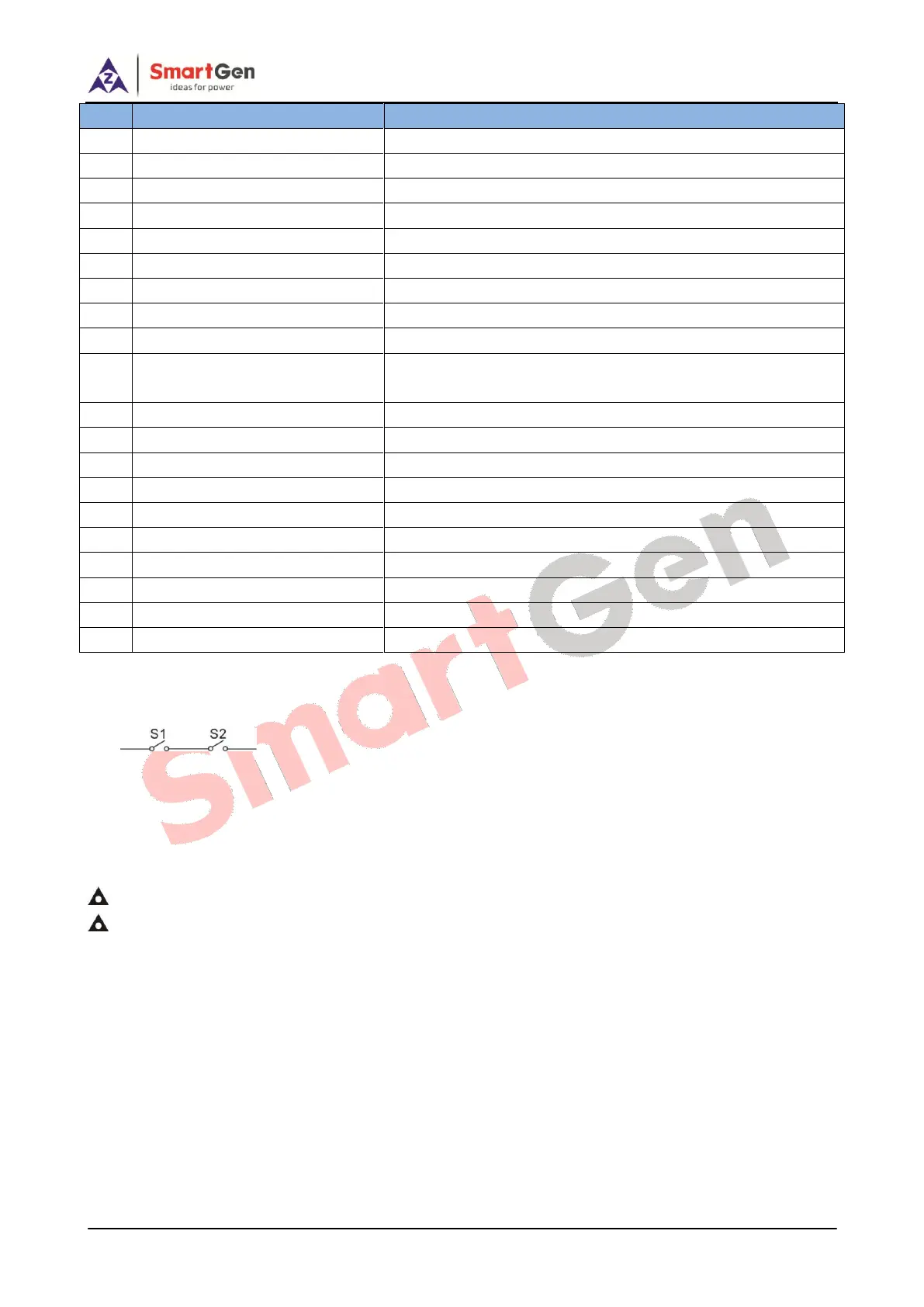

8.2.1. CUSTOM PERIOD OUTPUT
Defined Period output is composed by 2 parts, period output S1 and condition output S2.
While S1 and S2 are TRUE synchronously, OUTPUT;
While S1 or S2 is FALSE, NOT OUTPUT.
Period output S1 can set generator’s one or more period output freely, can set the delayed time and
output time after enter into period.
Condition output S2 can set as any conditions in output ports.
NOTE: when delay time and output time both are 0 in period output S1, it is TRUE in this period.
NOTE: when selected period is standby, it is cycle output and other periods are single output.
Example,
Output period: start
Delay output time: 2s
Output time: 3s
Condition output contents: output port 1 is active.
Close when condition output active/inactive: close when active (disconnect when inactive);
Output port 1 active, after enter “starts time” and delay 2s, this defined period output is outputting, after 3s, stop outputting;
Output port 1 inactive, defined output period is not outputting.
