Chapter 2 Contact input/output communication
2.4 Setting and checking HRR Series
2-8
Contact output signal 1 Select maintenance
11. Press the [▼] key. Displays screen for setting the selected maintenance for the Contact
output signal 1. The alarm is valid when the “selected maintenance status signal output”
is active.
Select the maintenance alarm No. to be allocated to Contact output signal 1.
●
Setting range: MT.01 to MT.05 (Initial value: MT.01)
Contact output signal 2 Select function
12. Press the [▼] key. Displays screen for setting the function for the Contact output signal 2.
Displays the function for the Contact output signal 2.
Contact output signal 2 operation
13. Press the [▼] key. Displays screen for setting the operation for the Contact output signal 2
Set value Explanation
Initial value
(Default setting)
No output signal
―
Operation status signal output
―
Remote status signal output
○
Unused
―
Ready completion (TEMP READY) signal output
―
TEMP OUT (temperature is out of the range) signal output
―
FLT (operation stop) alarm signal output
―
WRN (operation continue alarm) signal output
―
Notice for maintenance signal output
―
Alarm status signal output
―
Pass through signal of the contact input signal 1
―
Pass through signal of the contact input signal 2
―
Selected alarm status signal output
―
Selected notice for maintenance signal output
―

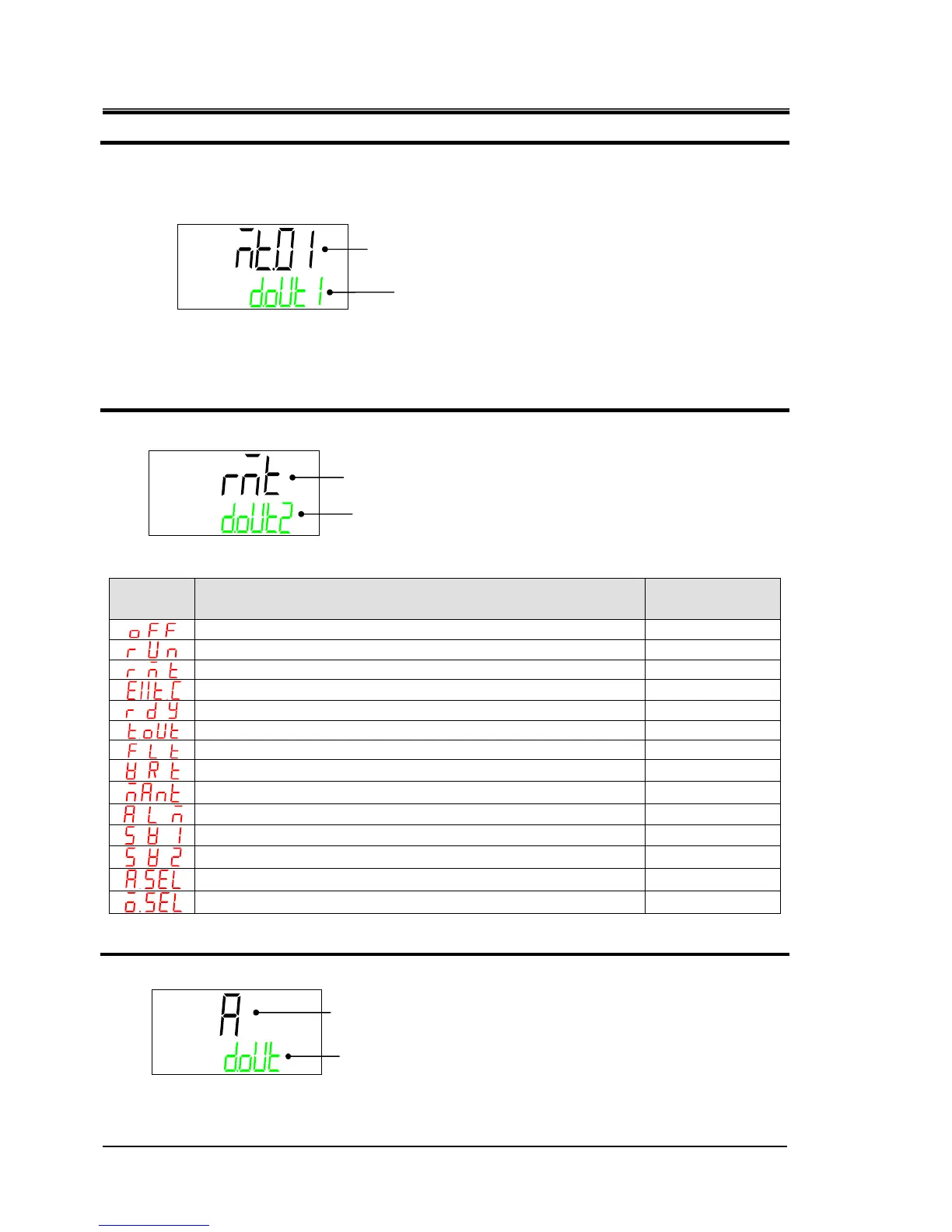

Contact output signal 1 Selected maintenance alarm No.
DOUT1 ⇒ MANT ⇒ CODE(Alternately displayed)
Contact output signal 2 Function
DOUT2 ⇒ SEL(Alternately displayed)
DOUT ⇒ SEL(Alternately displayed)
Contact output signal 2 operation
