Supply Voltage: 12V

●

Communication: LIN

●

Working temperature: -20°C +50°C

●

Environmental protection rate: IP65

5.3.3 Connections.

The following table describes COMPACT display connector pin-out.

COMPACT Display Connector

Pin Name Type

1 INPUT 1 DIGITAL INPUT with PULL-UP

2 INPUT 2 DIGITAL INPUT with PULL-UP

3 INPUT 3 DIGITAL INPUT with PULL-UP

4 INPUT 4 DIGITAL INPUT with PULL-UP

5 LIN-BUS 19.2 kBit/s I/O DIGITAL

6 NOT USED NOT USED

7 GND POWER IN

8 +12 V POWER IN

In a standard display software, INPUT 1, INPUT 2, INPUT 3 and INPUT 4 terminals are

intended to drive LEDs, however the use is highly dependent on the specific application.

5.3.4 Mechanical drawings

Figures 6 , 7 , 8 and 9 show the technical drawings for COMPACT display

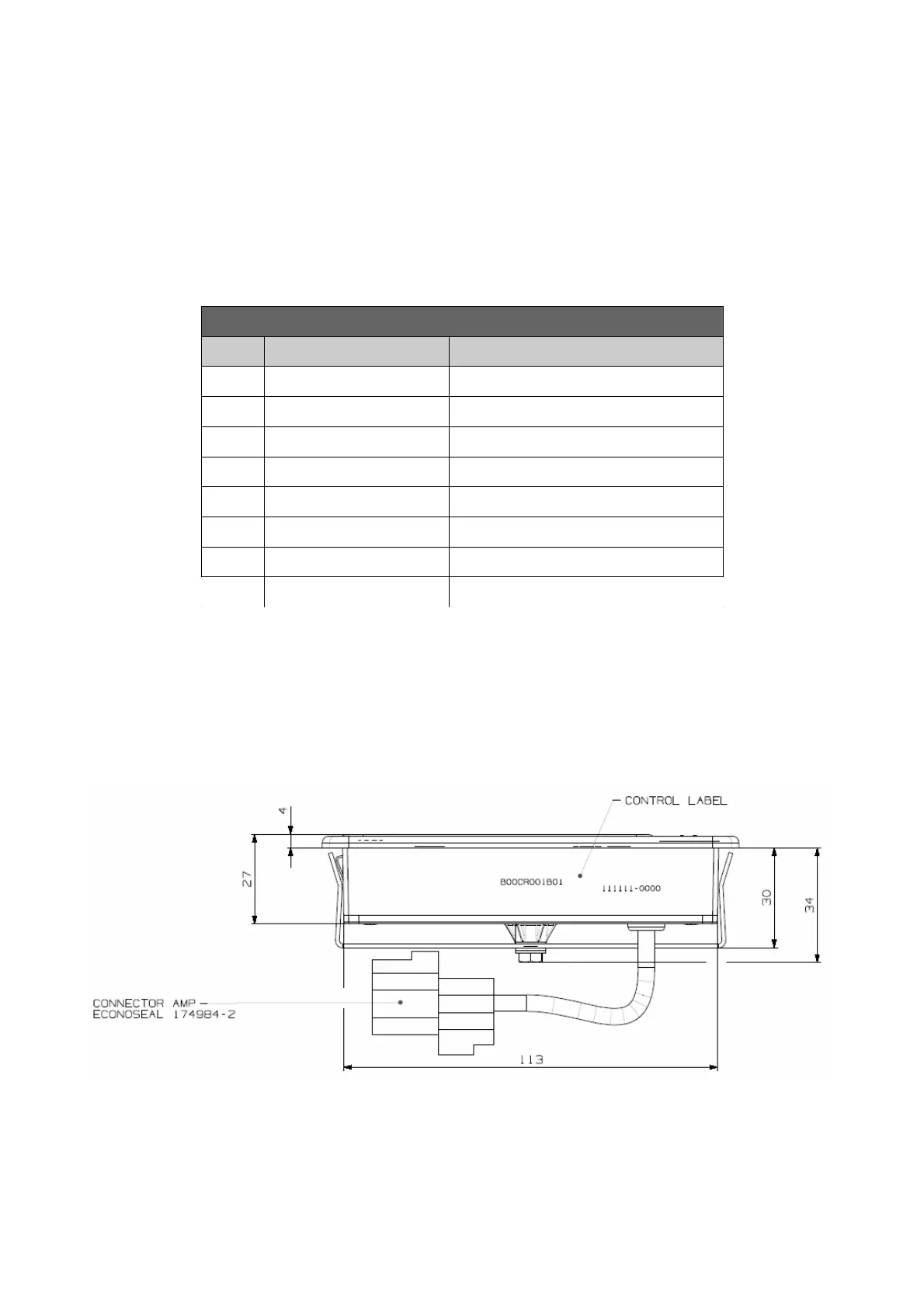

Figure 6: COMPACT display seen from side view .

PRELIMINARY VERSION 34
