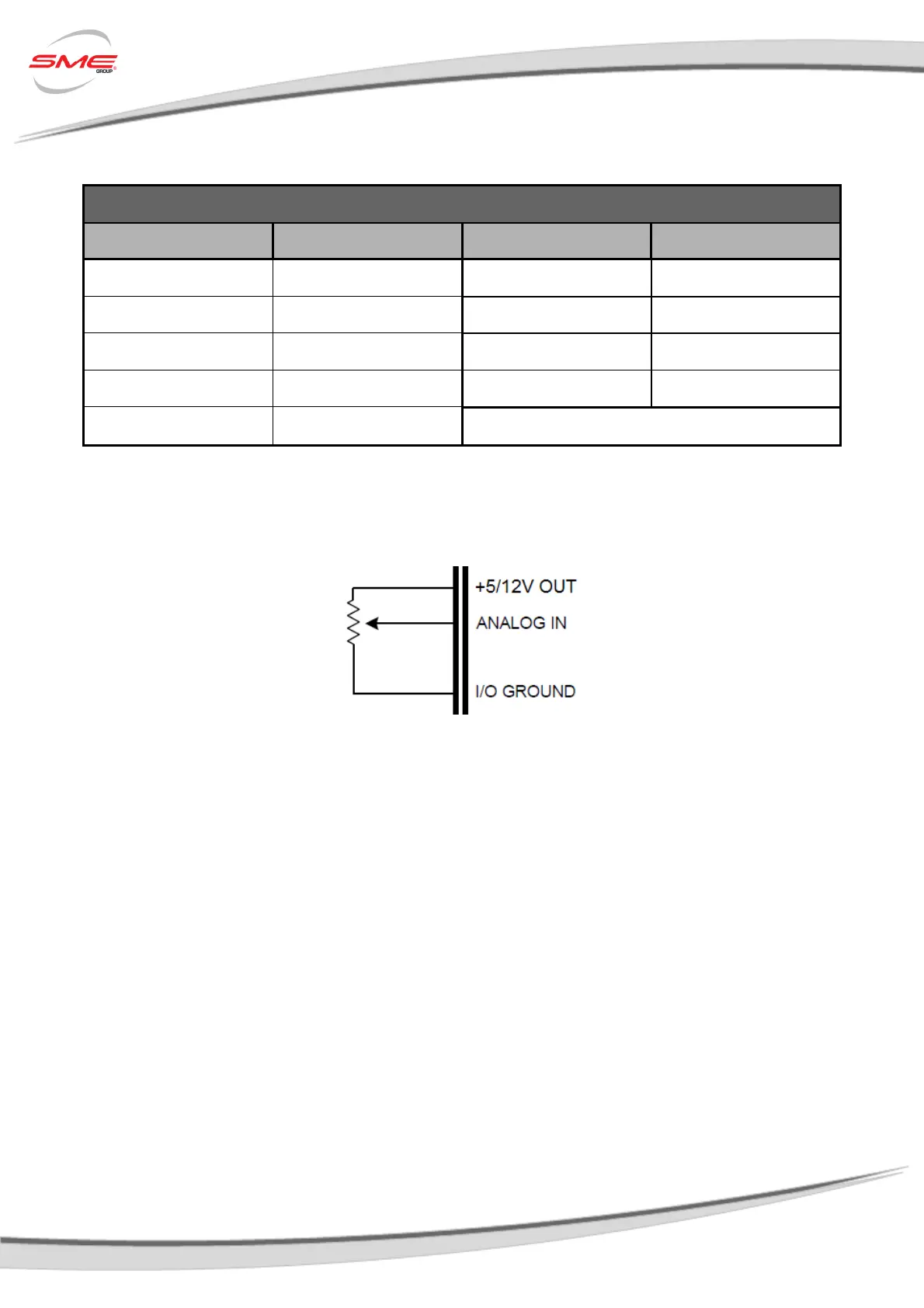

3.5.2 Analog Inputs
Analog Inputs on Controller
Pin Meaning Pin Meaning
K1 - 9 I/O Ground K1 - 22 Analog Input 3
K1 - 10 +12V Out K1 - 23 Analog Input 4
K1 - 11 Analog Input 1 K1 - 34 Analog Input 5
K1 - 12 I/O Ground K1 - 35 +5V Out
K1 - 17 Analog Input 2
Wiring
All Analog Inputs are 0÷12V pull down, with an internal impedance equal to 125KΩ.
Figure 8 - Potentiometer connected to Analog Input
