3.5.4 Digital Outputs (ON/OFF)
Digital Outputs on Controller
Pin Meaning Pin Meaning
K1 - 10 +12V Out K1 - 31 Digital Output 2 (Max 2A)
K1 - 25 Coil Return K1 - 35 +5V Out
K1 - 30 Digital Output 1 (Max 2A)
Wiring
The Digital Output (low side output) is the negative reference applied to the load. The positive
reference is given by the other pin connected:

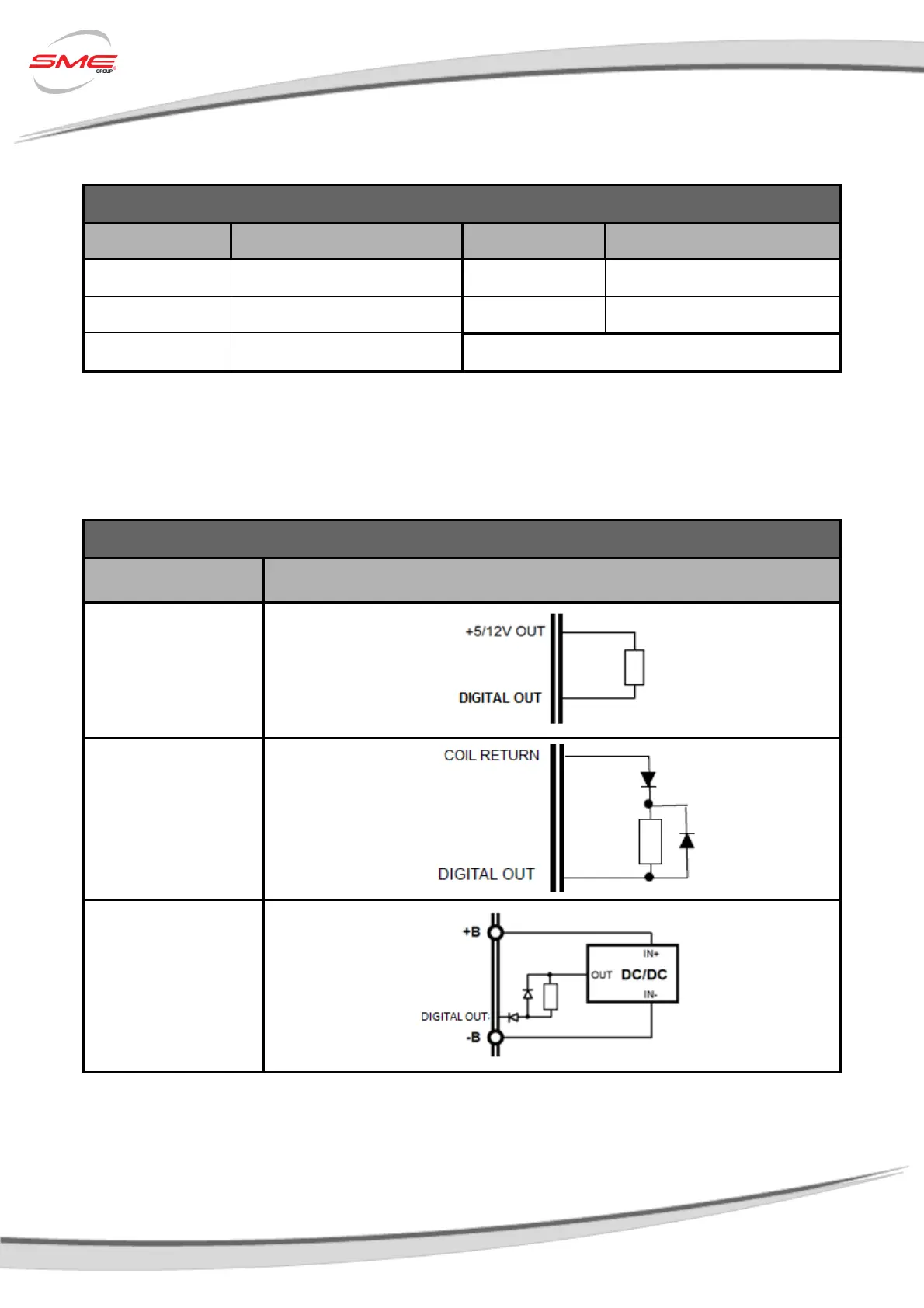

Digital Outputs Wiring on Controller
Positive Reference How to wire
Controller +5/12V
Battery Voltage
External Supply from
a DC/DC converter
