SME AC-X1 User Manual

ACX1_TAU_SYNC_UserManual_En
Page 29 of 37
SME S.p.A. Via della Tecnica 40 Z.I.
36071 ARZIGNANO (VI) ITALY
Phone +39 0444 470511 - Fax +39 0444 451803
sales@sme-group.com - www.sme-group.com

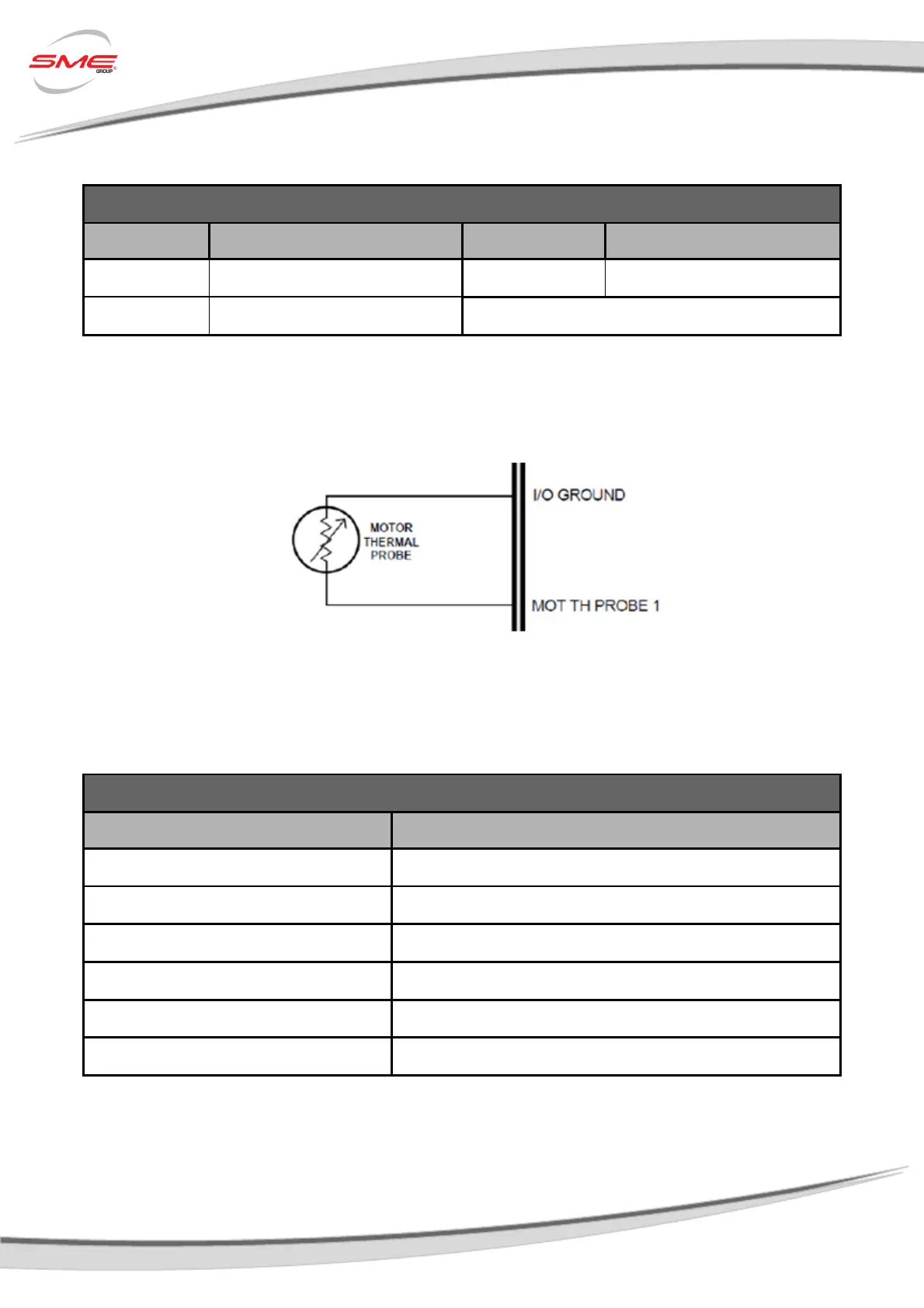

3.5.6 Thermal Probe
Thermal Probe Inputs on Controller
Pin Meaning Pin Meaning
K1 - 9 I/O Ground K1 - 32 Motor Temperature Probe
K1 - 12 I/O Ground
Wiring
The Controller can acquire the Motor Temperature through the Thermal Sensor:
Figure 11 - Thermal Probe Wiring
The following sensors are supported:
Thermal Probe supported on Controller
Code Meaning
DKF103N3 NTC – Negative Temperature Coefficient
KTY84-130/150 PTC – Positive Temperature Coefficient
KTY83-121/122 PTC – Positive Temperature Coefficient
PT 1000 PTC – Positive Temperature Coefficient
SWITCH - (NO) Normally Open Switch
SWITCH - (NC) Normally Closed Switch
