3.5.7 Serial
Serial Pins on Controller
Pin Meaning Pin Meaning
K3 - 2
RS-232 RX
K3 - 5 I/O Ground
K3 – 3
RS-232 TX
K3 - 9 +5V Out
Wiring
The Controller communicates with the PC trough the serial RS-232 with a speed of 38.4Kbps.

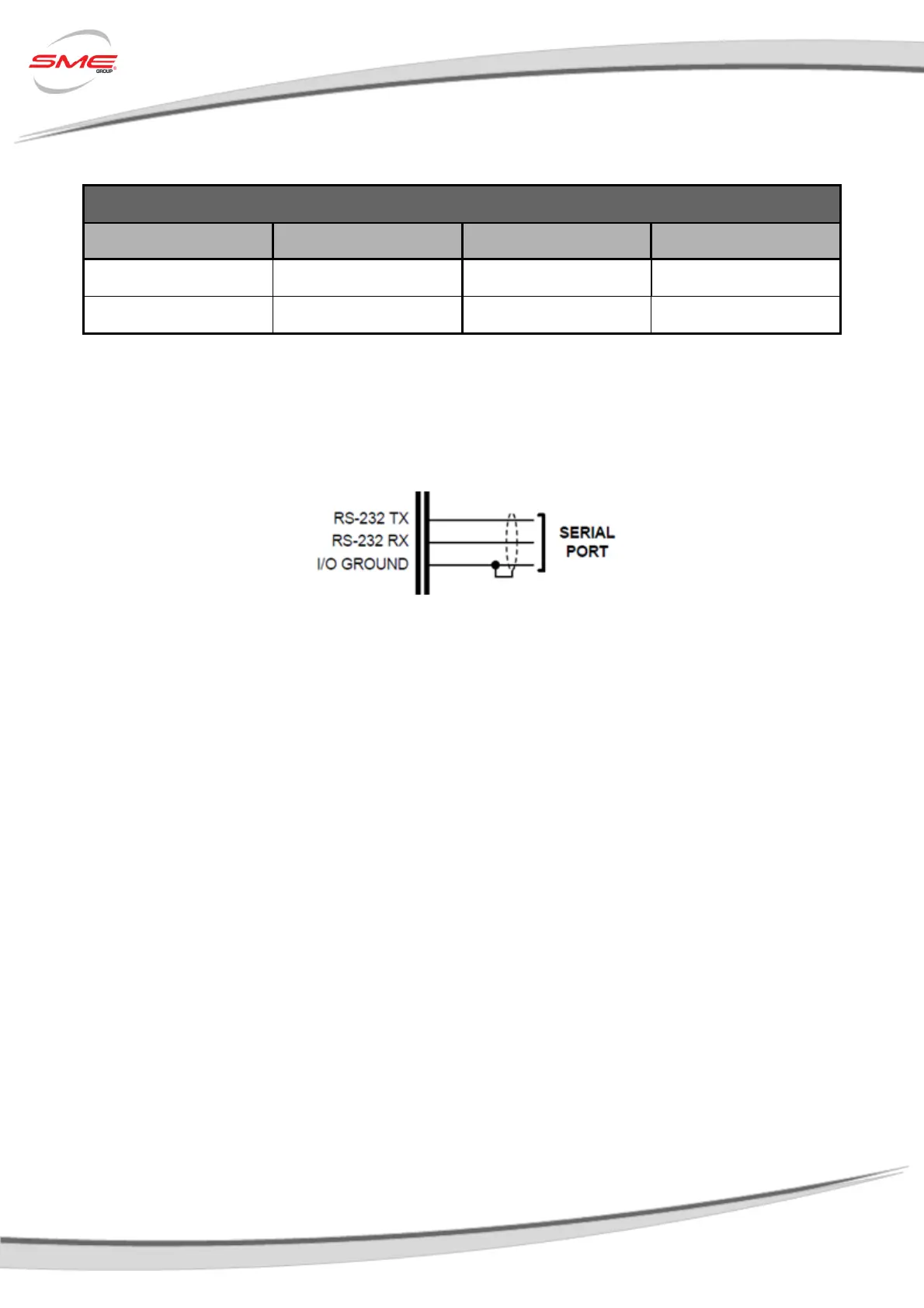

Figure 12 - Serial Wiring
You can communicate with the controller through:
• RS-232 serial port, using an interconnection cable.
• USB port, using a serial-to-USB converter:
o Supported: Prolific chip
o Recommended: FTDI chip
