Connecting the Grounding Cable
Connect the grounding cable from the battery to the grounding hole on the side of
the inverter, as shown below. Use an M6 screw.

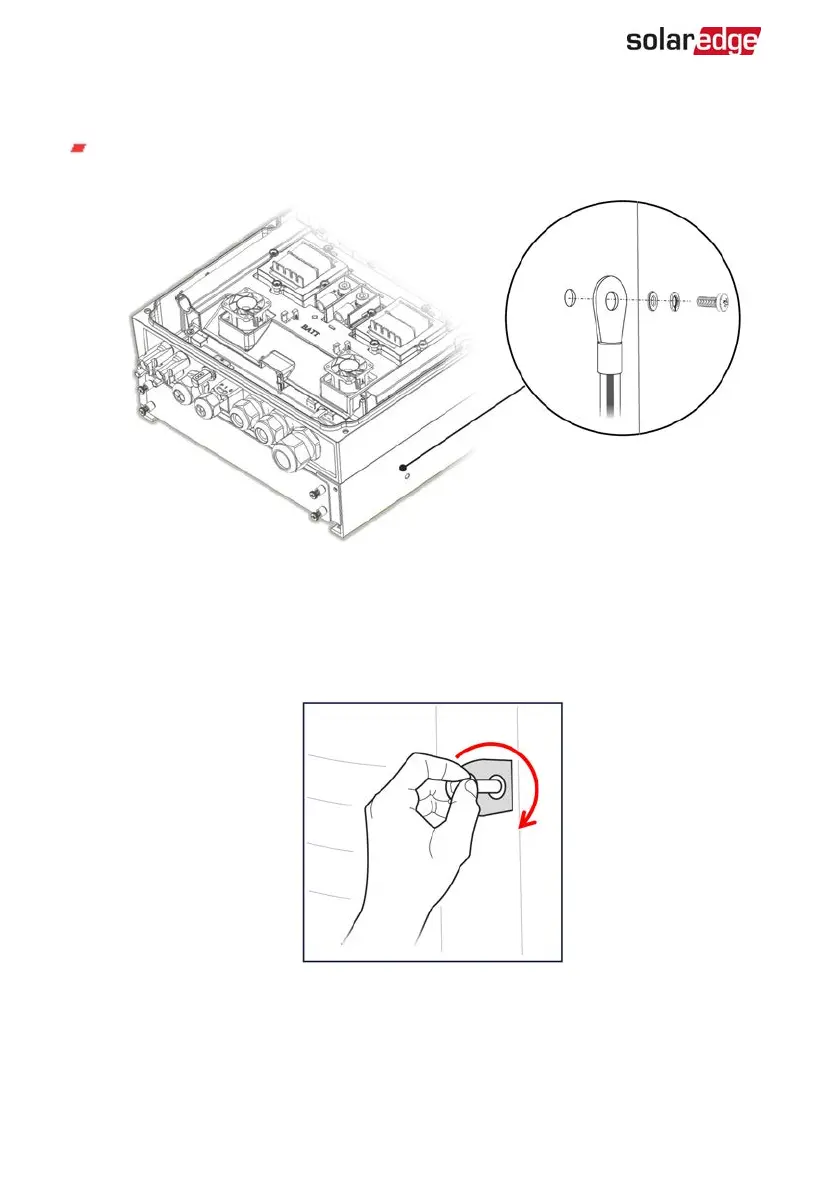

Figure 18: Grounding the battery
Closing the Inverter Cover
1. Mount the cover.
2.
Fasten all bolts slightly with a hand, so that they hold the cover.
StorEdge Three Phase Inverter MAN-01-00648-1.3
39 Closing the Inverter Cover
