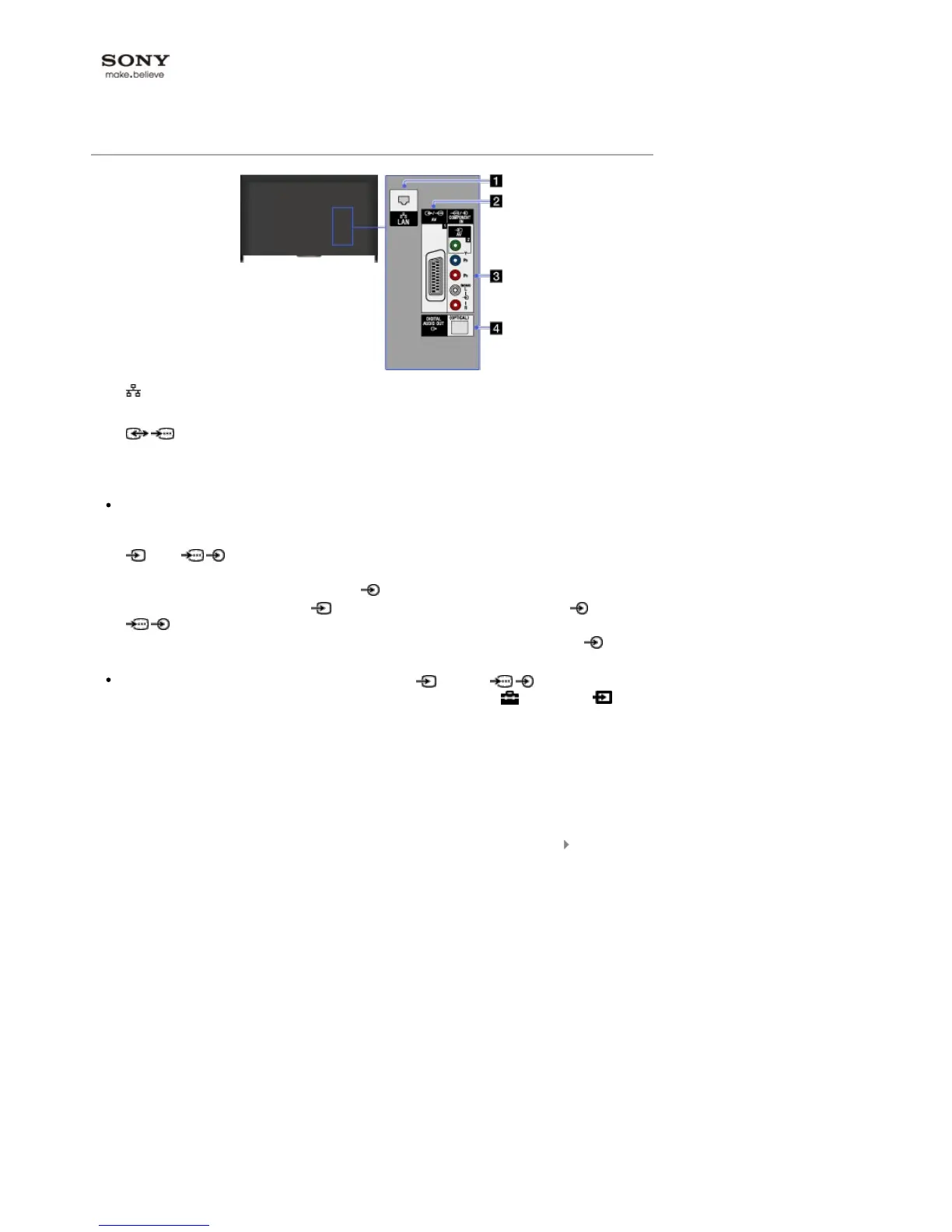

Terminals on the rear (centre)
1. LAN
Connects to an existing network using an Ethernet cable.
2. / AV1
Connect with a SCART cable. When you connect an analogue decoder, the TV tuner outputs
scrambled signals to the decoder, and the decoder unscrambles the signals before outputting
them.
The SCART out setting must be made when outputting digital RF on certain models or in
certain regions. Press the OPTIONS button, then select [SCART REC on].
3. AV2, / COMPONENT IN
This input can be used as a composite video input or as a component video input. When
connecting a mono device, connect to the L (MONO) audio jack (socket).
For a composite connection, use AV2 for video signals, and also connect to (L/R) of
/ COMPONENT IN for audio signals.
For a component connection, use Y, PB, PR for video signals, and also connect to (L/R) for
audio signals.
The TV will automatically detect and switch between AV2 and / COMPONENT IN.
To manually set the input type, press the HOME button, then select [Settings] →
[External Inputs] → [AV2/Component Input].
4. DIGITAL AUDIO OUT (OPTICAL)
You can listen to the TV’s sound on a connected home theatre system with digital audio input
(optical).
