Chapter 1 Overview

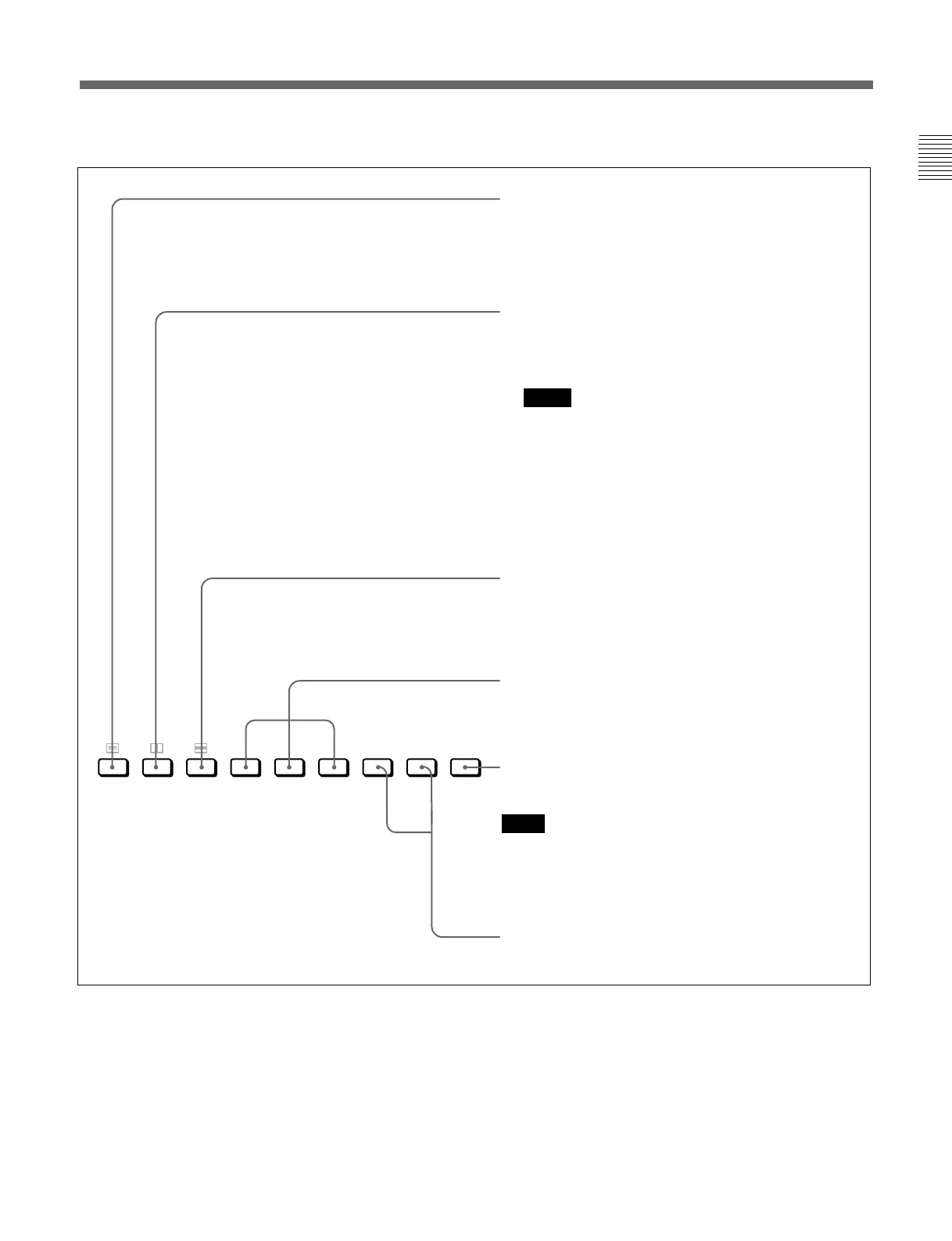

Function buttons in SHIFT ON mode (LEDs of function buttons in amber)
16:9 button: When this button is pushed in (ON), the aspect
ratio changes to 16:9, and when set to OFF, the aspect
ratio changes to 4:3.
The aspect ratio is fixed to 16:9 when the signal other than
4:3 signal format is input. For details, see “Available
Signal Format” on page 53(E).
SYNC button: When this button is pushed in (ON), the
monitor synchronizes to the sync signal input to the SYNC
connectors on the BKM-129X (EXT SYNC). When set to
OFF, it synchronizes to the sync signal included in the
signals being monitored (INT SYNC).
Notes
• When INT SYNC is selected, use a component including
a sync signal on the Y signal, and use RGB signal
including a sync signal on the G signal.
• When the BKM-129X is not installed to the monitor or
serial digital signals are monitored, INT SYNC is
automatically selected. You cannot select EXT SYNC.
B ONLY (blue only) button: When this button is pushed in
(ON), red and green signals are cut, and only the blue
signal is displayed as a monochrome picture. It makes it
easy to adjust CHROMA and PHASE, and to check VTR
noise.
R/G/B buttons: When these buttons are pushed in (ON),
R(red), G(green), and B(blue) beams are cut respectively.
MARKER button: When this button is pushed in (ON), a 4:3
marker is displayed and it is possible to check the 4:3 aspect
area in the 16:9 picture.
Note
The 4:3 marker is not displayed when the signals of the 4:3
aspect ratio are monitored or the monitor is in H/V delay mode
F3/F4 buttons: For future expansion.
16:9 SYNC R G B
MONO APT COMB
F3
F1
F4
F2
MARKER
ADDRESS
B ONLY
