Location and Function of Parts and Controls
10
Location and Function of Parts and Controls

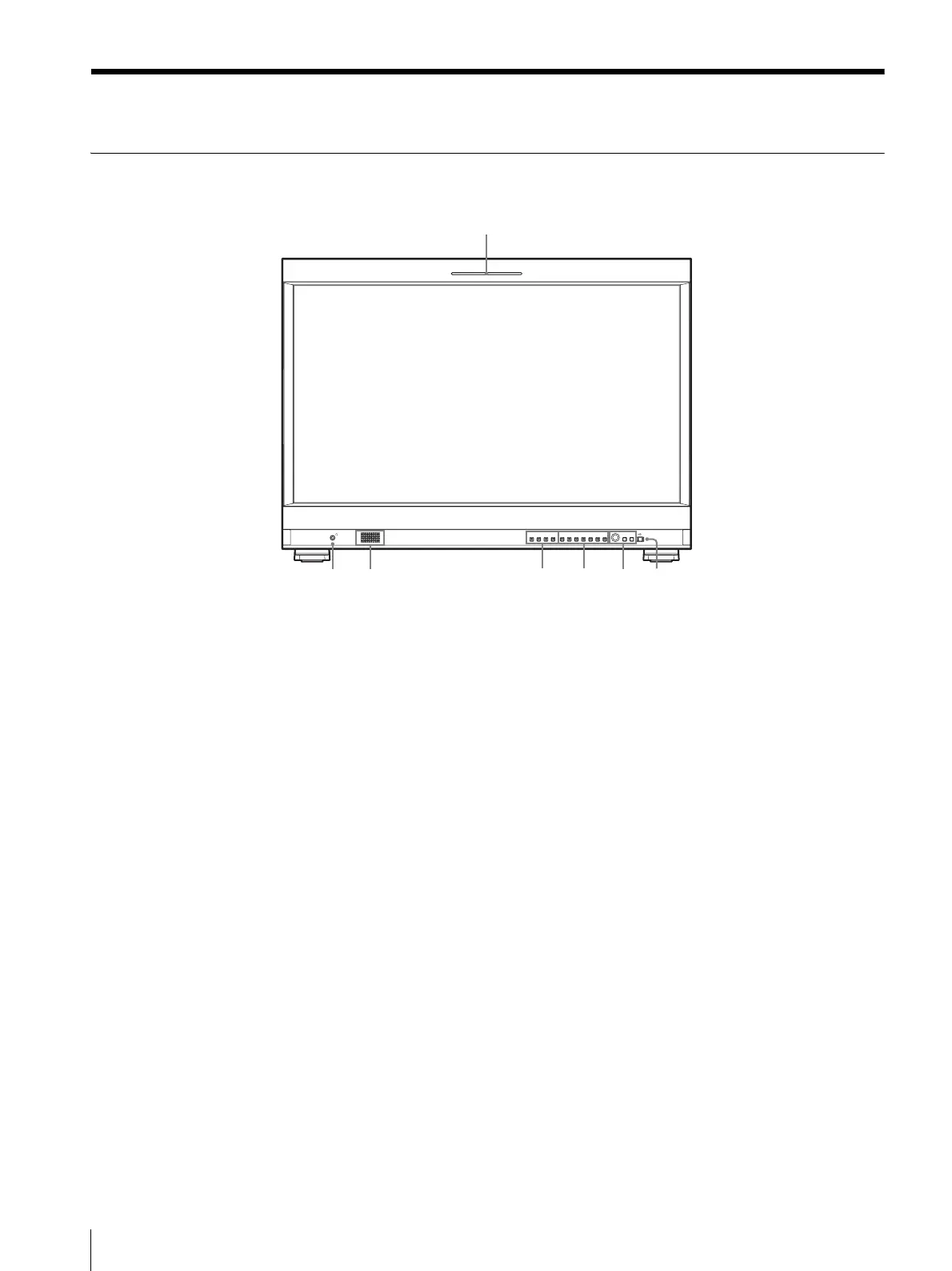

Front Panel
a Tally lamp
You can check the status of the monitor by the color of
the tally lamp.
The tally lamp lights in red, green or amber according to
the setting of PARALLEL REMOTE in the REMOTE
menu.
b i (headphones) jack
The audio signal which is selected by the input select
button is output in stereo sound.
c Speaker
The audio signal which is selected by the input select
button is output in monaural sound (L + R).
When SDI signals are input, the audio which is selected
in AUDIO SETTING of the USER CONFIG menu is
output (see page 31).
The audio signals from the speaker are output from the
AUDIO OUT connector on the rear (see page 14).
Audio signals will not be output when headphones are
connected to the i jack.
d Input select buttons
Press to monitor the signal input to each connector.
SDI 1 button: to monitor the signal through the SDI 1
input connector
SDI 2 button: to monitor the signal through the SDI 2
input connector
HDMI button: to monitor the signal through the
HDMI connector
COMPOSITE button: to monitor the signal through
the COMPOSITE IN connector
e Function buttons
You can turn the assigned function on or off.
The factory setting is as follows;
F1 button: BRIGHTNESS
F2 button: CONTRAST
F3 button: CHROMA
F4 button: SCAN
F5 button: H/V DELAY
F6 button: VOLUME
F7 button: I/P MODE
You can assign various functions in FUNCTION
BUTTON SETTING of the USER CONFIG menu.
Press the button BRIGHTNESS, CONTRAST,
CHROMA, VOLUME, PHASE, or APERTURE
function assigned to display the adjustment screen.
Press the same button again, and the adjustment screen
disappears, but you can adjust the value without the
setting value display.
For details of the function assigned to the function
button, see page 29.
f Menu operation buttons
Displays or sets the on-screen menu.
Menu selection control
SDI 1 SDI 2
F1 F2 F3 F4 F5 F6 F7
COMPOSITE
RETURN
MENU
HDMI
32
