9

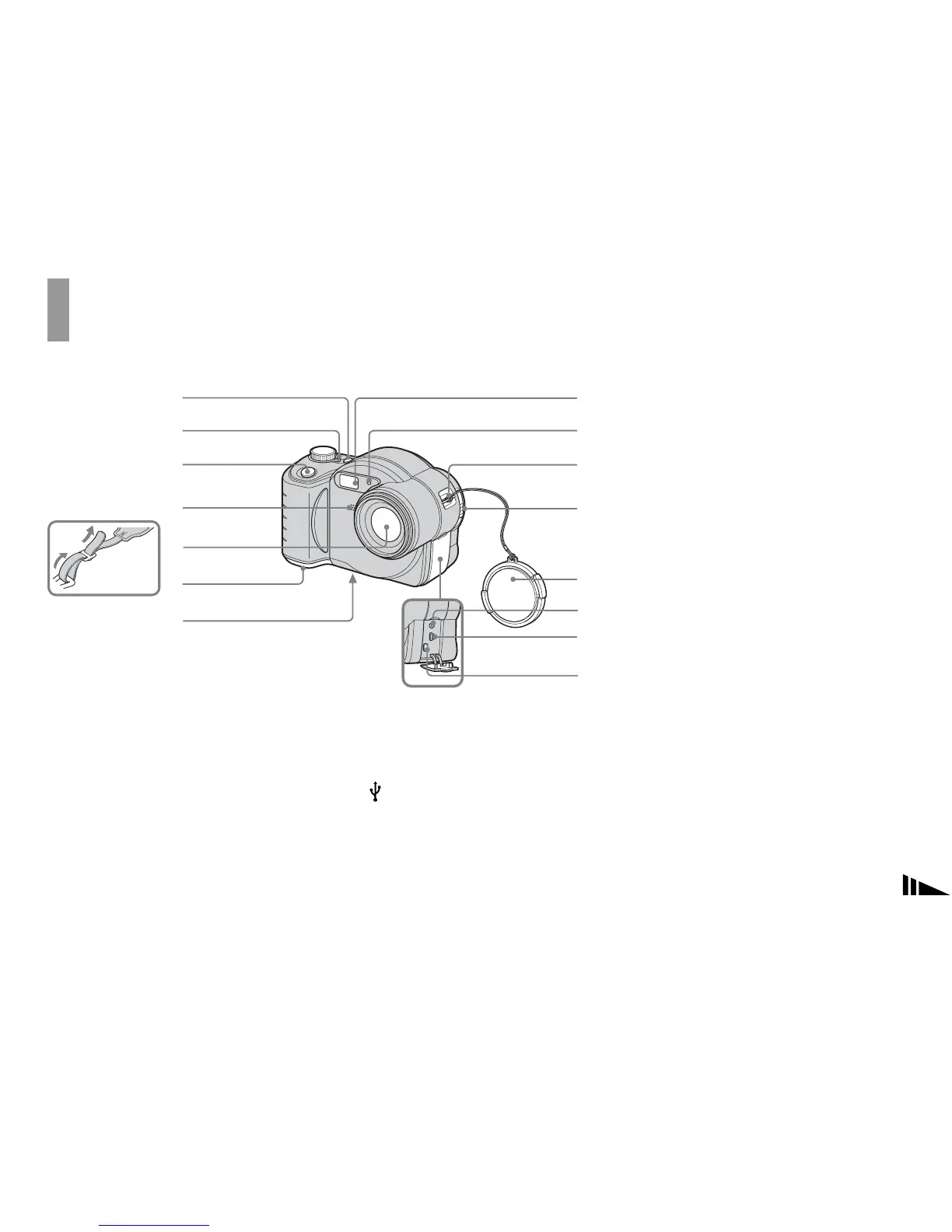

Identifying the parts
See the pages in parentheses for details of operation.
A POWER button (15)
B POWER lamp (15)
C Shutter button (22)
D Microphone
E Lens
F Battery cover (11)
G Tripod receptacle (bottom
surface)
H Flash emitter (27)
I Self-timer lamp (26)/
AF illuminator (28, 105)
J Hook for lens cap/shoulder strap
K Disc cover OPEN lever (18)
L Lens cap
M A/V OUT (MONO) jack (33)
N (USB) jack (84)
O DC IN jack (11, 14)
2
3
6
4
qs
0
qa
8
7
9
qd
qf
qg
5
Attaching the
shoulder strap
• Use a tripod with a screw length of less than 5.5
mm (7/32 inch). You will be unable to firmly
secure the camera to tripods having longer
screws, and may damage the camera.
• Do not touch the microphone while recording.
• The “3.2 MEGA PIXELS” indicated on the
camera shows the number of effective pixels.
The number of actually recorded pixels is
maximum 3.1 MEGA PIXELS. The effective
pixels number is determined according to the
recommendation of the JCIA (Japan Camera
Industry Association).
