13
CDX-MP40

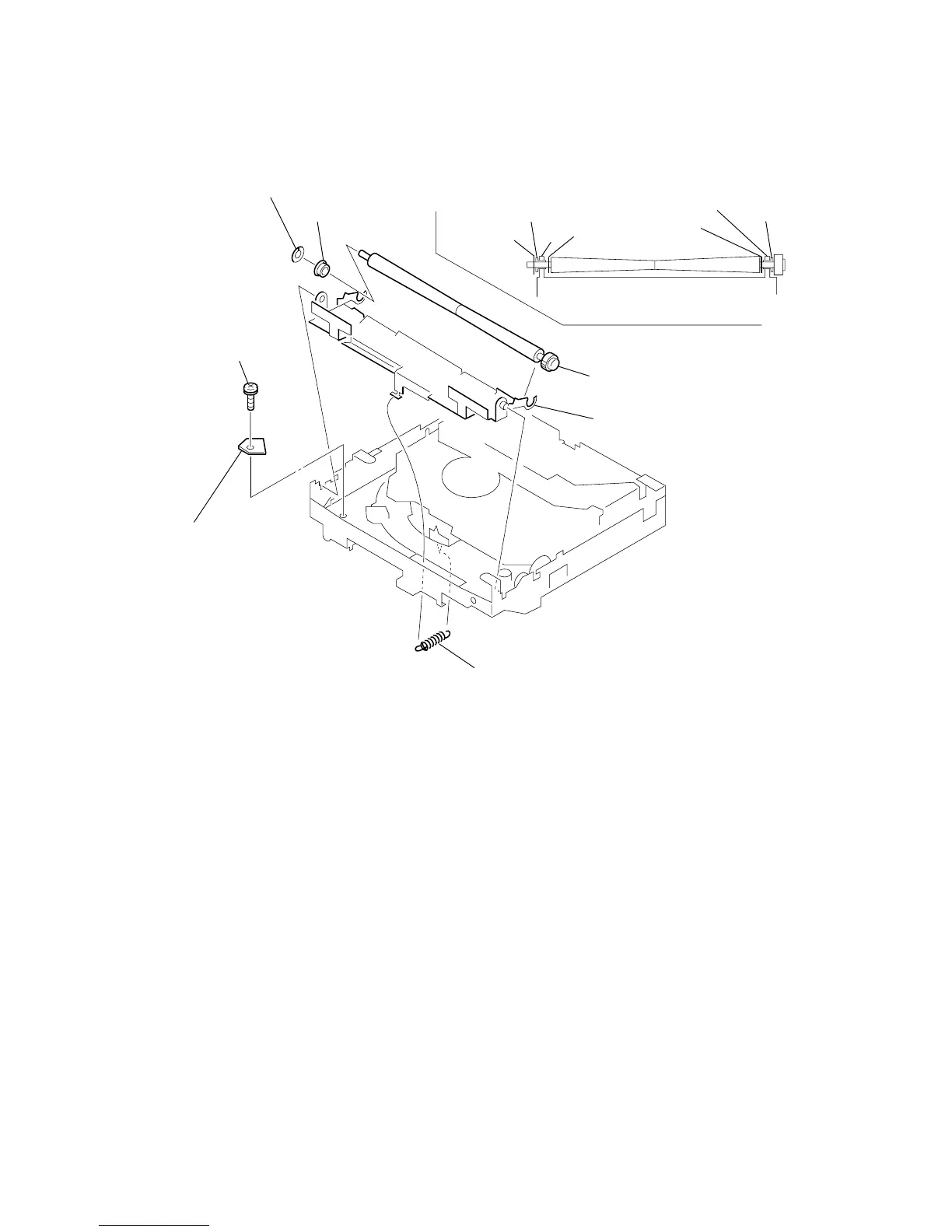

2-8. SHAFT ROLLER
ASSY
, LOAD SW BOARD
•
When installing, take note of the positions
arm (roller) and washers. (Fig. 1)
Fig. 1
1
tension spring (RA)
2
arm
(roller)
3
retaining ring
(RA)
4
shaft retainer
(roller)
5
shaft roller assy
shaft retainer (roller)
shaft retainer (roller)
retaining ring (RA)
arm
arm
washer
washer
6
special screw
7
LOAD SW board
12
14
