14
CDX-MP40

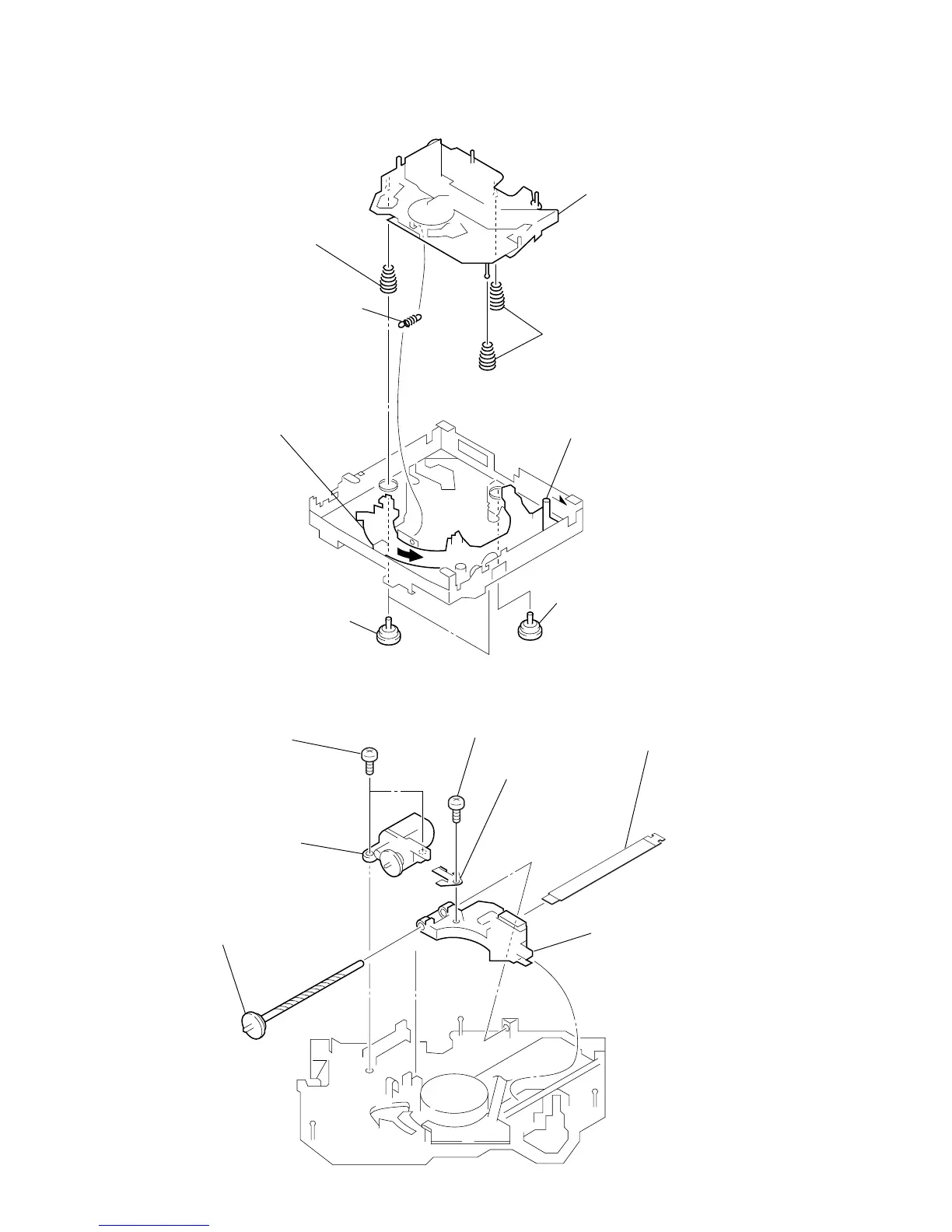

2-9. FLOA
TING BLOCK
ASSY
2-10. OPTICAL PICK-UP BLOCK
1
tension spring (KF1)
7
compression spring (FL)
8
compression spring (FL)
6
floating block assy
5
Turn loading ring in the
direction of the arrow.
4
Fit lever (D) in the direction of the arrow.
2
damper (T)
3
damper (T)
3
P 2x3
1
P 2x3
2
sled motor assy (M902)
5
optical pick-up (KSS-721A)
7
PICK-UP FLEXIBLE board
4
plate spring (feed)
6
shaft (feed) assy
13
15
Table of Contents
Table of Contents
4
Default Chapter
4
Schematic Diagram -Main Section (1/2)
4
1 General
5
Location of Controls (US, Canadian Model)
5
Location of Controls (AEP, UK Model)
5
Connections (US, Canadian Model)
6
Connections (AEP, UK Model)
7
2 Disassembly
9
Sub Panel Assy (CD)
9
CD Mechanism Block
10
Main Board
10
Heat Sink
11
Chassis (T) Sub Assy
11
Lever Section
12
Servo Board
12
Shaft Roller Assy, Load Sw Board
13
Floating Block Assy
14
Optical Pick-Up Block
14
3 Diagrams
15
IC Pin Descriptions
15
Circuit Boards Location
20
Block Diagram -CD Section
21
Block Diagram -Main Section
22
Block Diagram -Display Section
23
Printed Wiring Boards -CD Mechanism Section
24
Schematic Diagram -CD Mechanism Section (1/2)
26
Schematic Diagram -CD Mechanism Section (2/2)
27
Printed Wiring Boards -Main Section
28
Schematic Diagram -Main Section (1/2)
29
Schematic Diagram -Main Section (2/2)
30
Printed Wiring Board -Relay Section
31
(US, Canadian Model)
32
(US, Canadian Model)
33
(AEP, UK Model)
34
Schematic Diagram -Relay, Key Section
35
(AEP, UK Model)
35
IC Block Diagrams
36
4 Exploded Views
38
Chassis Section
38
Front Panel Section
39
CD Mechanism Section (1)
40
CD Mechanism Section (2)
41
CD Mechanism Section (3)
42
5 Electrical Parts List
43
Table of Contents
54
Printed Wiring Boards -Main Section
55
Schematic Diagram -Main Section (2/2)
57
IC Block Diagrams
59
Exploded View -Chassis Section
60
Electrical Parts List
61
