CDX-MP40

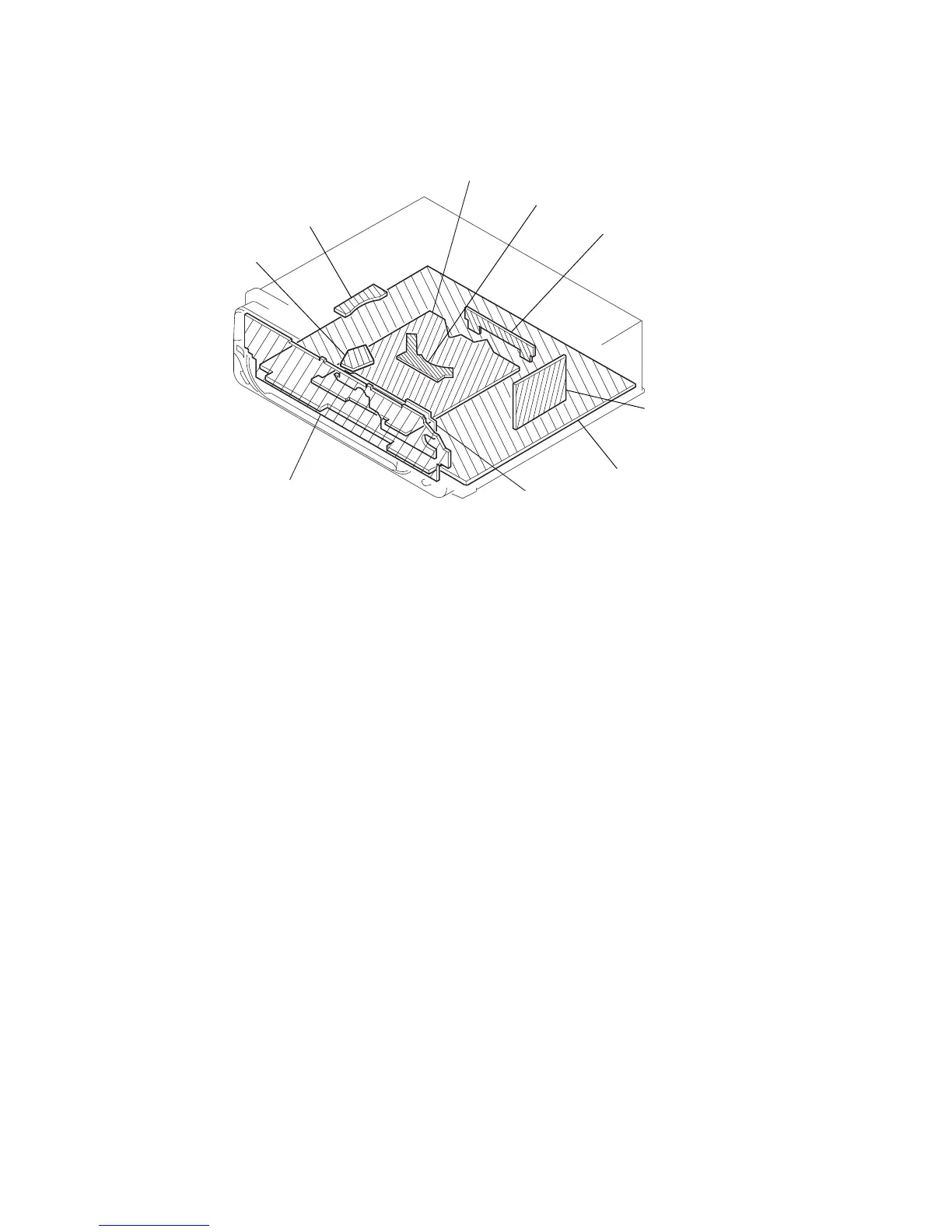

3-2. CIRCUIT BOARDS LOCATION
MAIN board
SERVO board
LIMIT SW board
SPEAKER board
tuner unit
(TUX501)
RELAY board
DISC IN SW board
LOAD SW board
DISPLAY board (US, CND)
KEY board (AEP, UK)
