8
CDX-MP40
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color Cabinet’s Color
• Accessories are given in the last of this
parts list.
RR

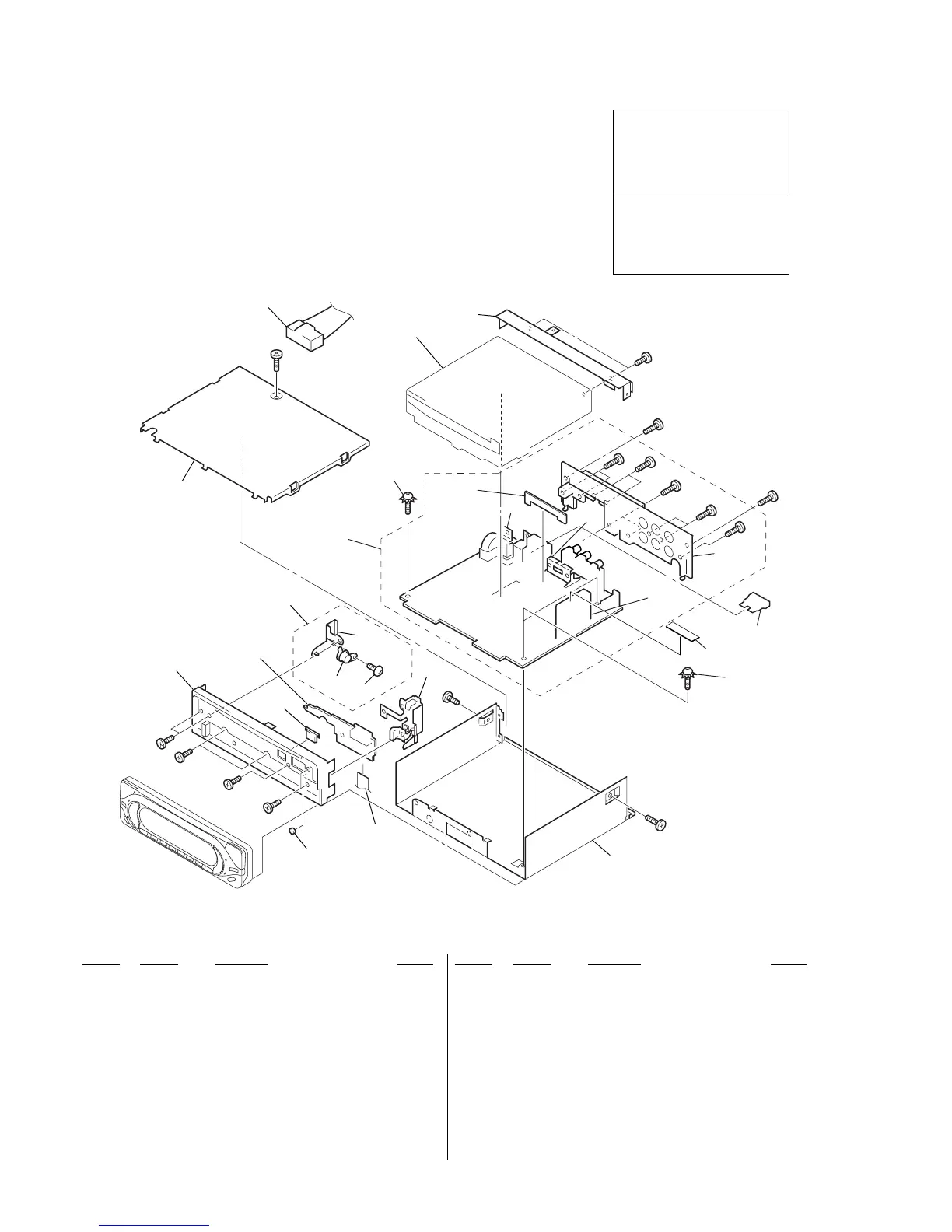

6. EXPLODED VIEW — CHASSIS SECTION —
1 X-3382-626-1 PANEL ASSY (CD), SUB
2 3-246-441-01 BUTTON (EJECT)
3 1-792-173-11 CABLE, FLAT (FFC) 12P
4 X-3376-699-6 GEAR ASSY
5 3-243-177-01 CUSHION (SUB PANEL)
6 3-030-909-03 DAMPER, OIL
7 3-713-786-51 SCREW +P 2X3
8 X-3377-621-8 LOCK ASSY
9 1-776-527-61 CORD (WITH CONNECTOR) (ISO) (POWER)
10 3-246-007-01 BRACKET (CD)
11 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT
12 A-3274-836-A MAIN BOARD, COMPLETE
13 3-041-261-11 BRACKET (TR)
* 14 3-040-998-01 BRACKET (IC)
15 3-246-481-01 PLATE (TU), GROUND
* 16 3-246-005-11 CHASSIS (CD)
F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A
TUX501 A-3220-887-A TUNER UNIT (TUX-030)
#1 7-685-792-09 SCREW +PTT 2.6X6 (S)
#2 7-621-772-20 SCREW +B 2X5
#3 7-685-793-09 SCREW +PTT 2.6X8 (S)
#4 7-685-795-09 SCREW +PTT 2.6X12 (S)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
9
10
2
MG-393MC-121
#1
#1
1
6
7
8
3
16
15
#1
#2
#2
#2
#1
#1
not supplied
not
supplied
(SPEAKER
board)
not
supplied
not
supplied
not supplied
(RELAY board)
4
5
11
11
12
13
14
TUX501
#3
#3
#3
#3
#3
#3
#4
F901
To Next Page
