CDX-MP40
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark

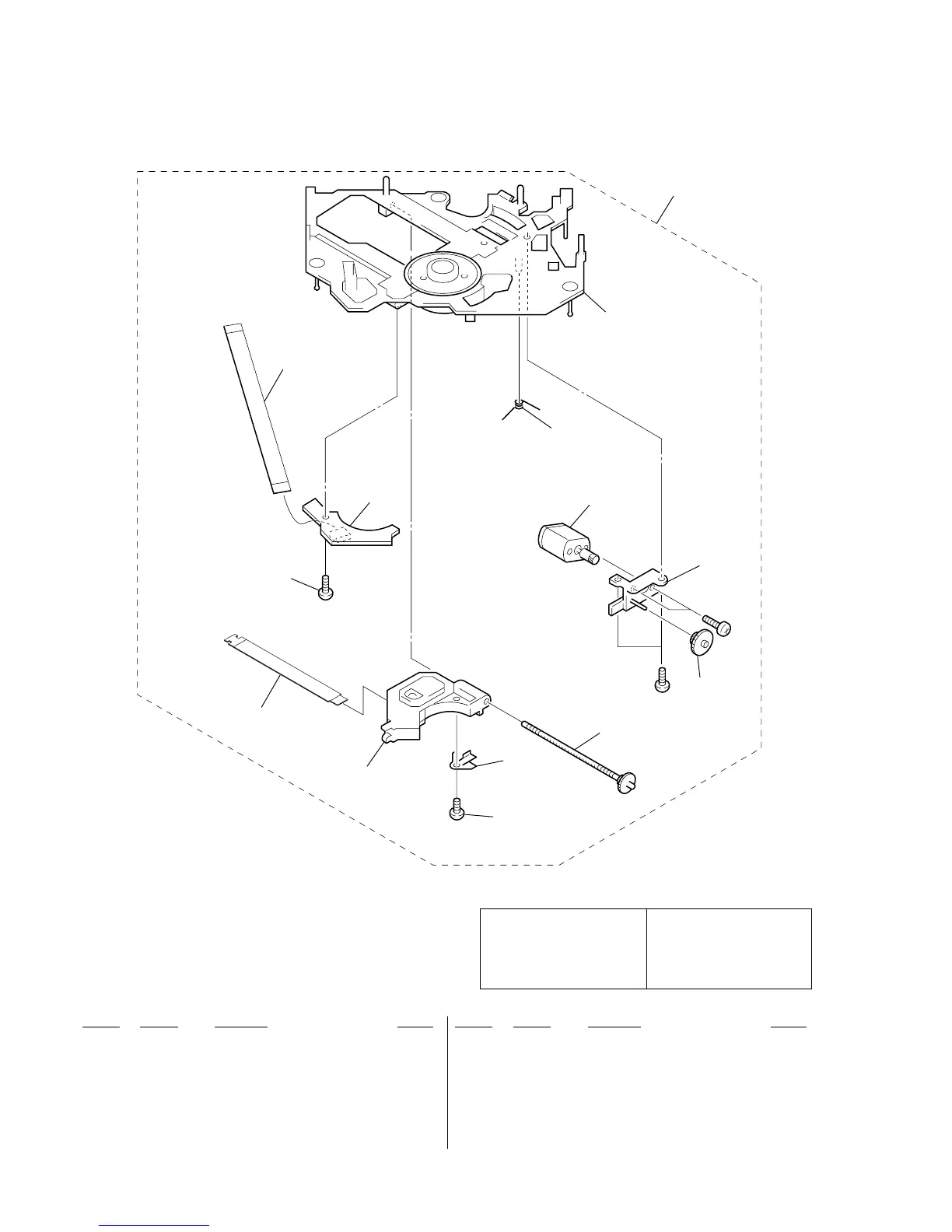

4-5. CD MECHANISM SECTION (3)
(MG-393MC-121)
The components identified by
mark 0 or dotted line with mark
0 are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque 0 sont critiques pour
la sécurité.
Ne les remplacer que par une piéce
portant le numéro spécifié.
201 A-3337-193-A FLOATING BLOCK ASSY
202 3-040-029-01 SPRING (SL), TORSION
203 3-040-045-01 BASE (DRIVING)
204 3-040-194-01 GEAR (MIDWAY)
205 A-3301-983-A SHAFT (FEED) ASSY
206 3-040-030-01 SPRING (FEED), PLATE
207 1-823-951-11 CABLE, FLEXIBLE FLAT (16 CORE)
208 A-3274-254-A LIMIT SW BOARD, COMPLETE
209 3-909-607-01 SCREW
0 210 8-820-165-06 OPTICAL PICK-UP KSS-721A/C-RP
211 1-676-707-11 PICK-UP FLEXIBLE BOARD
M902 A-3301-985-A MOTOR ASSY, SLED (SLED)
#7 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE 3
#10 7-627-850-28 SCREW, PRECISION +P 1.4X3
M902
not supplied
#7
#10
206
209
209
210
211
205
208
204
203
202
207
201
