Getting Started

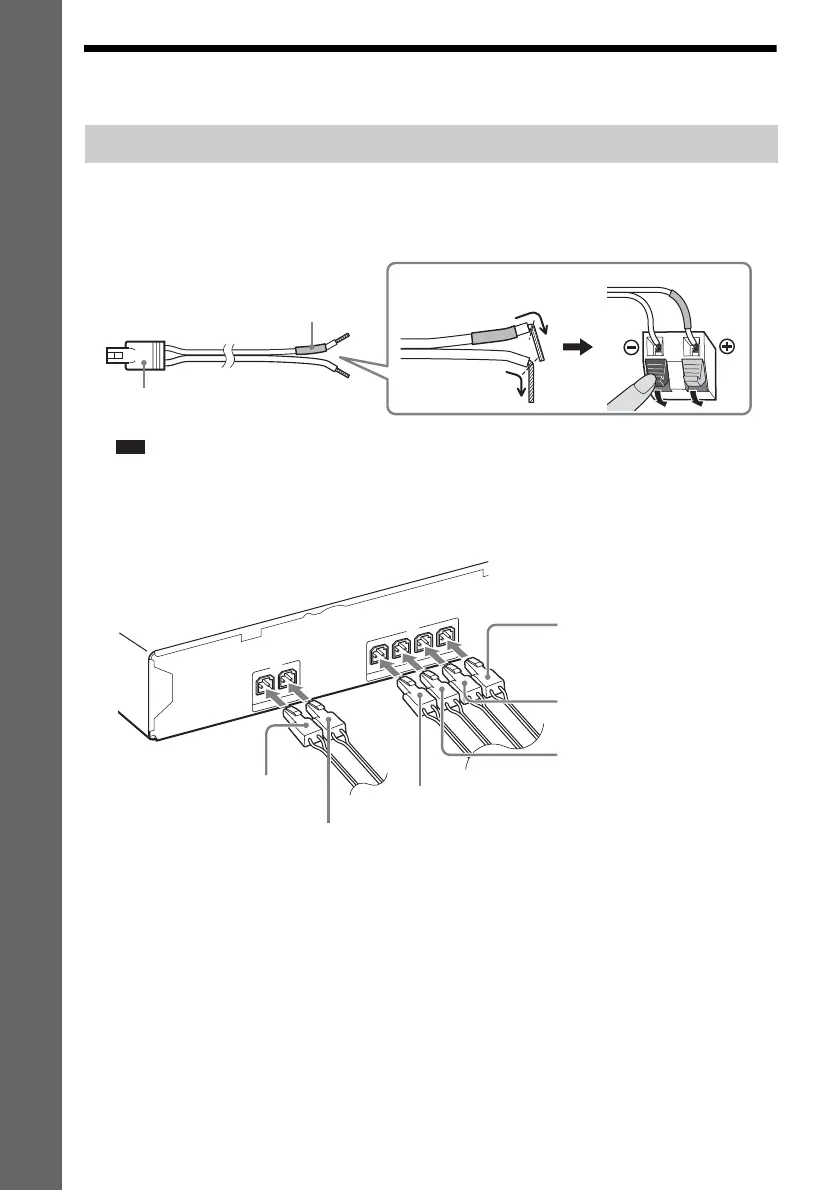

Step 2: Connecting the System
1 Connect the speaker cord with the color tube to 3, and the speaker cord without the
color tube to #.
The subwoofer speaker cord is fixed to the subwoofer.
Note
• Do not catch the speaker cord insulation (rubber covering) in the speaker terminals.
2 Insert the connectors of the speaker cords to match the color of the SPEAKERS jacks
of the unit until they click.
Connecting the speakers
Color tube
(–)
(+)
Rear of the speaker
Connector
SPEAKERS
S
U
R
R
S
U
R
L
TV
O
P
TIC
A
DIGITAL
IN
SPEAKERS
S
U
B
W
O
O
FE
R
C
E
N
T
E
R
F
R
O
N
T
R
F
R
O
N
T L
Green
(Center speaker)
Purple
(Subwoofer)
White
(Front left speaker (L))
Red
(Front right speaker (R))
Gray
(Surround right speaker (R))
Blue
(Surround left speaker (L))
