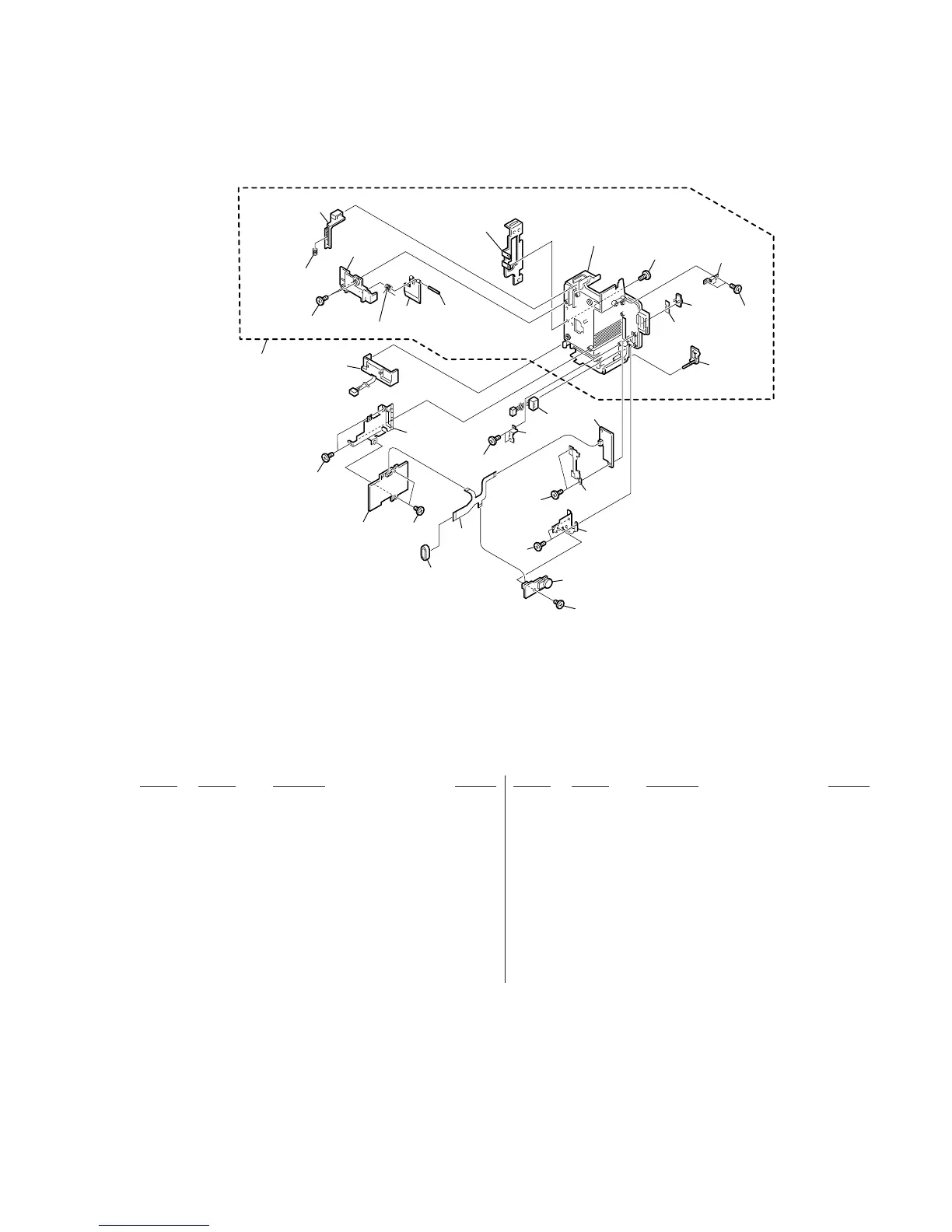

6-1-7. BATTERY PANEL SECTION
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
MS-049
Board
MK-014
not supplied
not
supplied
not
supplied
not supplied
not supplied
301
302
303
303
303
303
303
319
320
321
303
311
312
322
313
314
315
316
317
318
304
305
306
307
309
310
308
306
301 A-7074-408-A MK-014 BOARD, COMPLETE
* 302 3-060-678-01 RETAINER, MK
303 3-948-339-61 TAPPING
* 304 3-060-679-01 HOLDER, KP
305 A-7074-406-A KP-010 BOARD, COMPLETE
306 3-053-121-11 BOLT (M2), SPRING
307 1-678-058-11 FP-190 FLEXIBLE BOARD
308 A-7074-407-A MS-049 BOARD, COMPLETE
309 X-3950-589-1 HOLDER ASSY, MS
310 1-694-411-11 TERMINAL BOARD, BATTERY
* 311 3-060-680-01 RETAINER, DC JACK
312 1-794-637-11 CONNECTOR, DC-IN
313 X-3950-593-1 PANEL (D) ASSY, BATTERY
314 3-060-592-01 BRACKET (R), S BELT
315 3-060-595-01 CLAW, BT LOCK
316 3-060-594-11 LEVER, BT RELEASE
317 3-053-121-41 BOLT (M2), SPRING
* 318 3-060-774-01 JOINT, BT-R
319 3-060-598-01 BUTTON, AL
320 3-060-776-01 SHEET, AL
321 3-060-773-01 COVER, DC JACK
322 1-469-829-11 CORE, FERRITE (US)
