Sony DVCAM DSR-PD150 User Manual

6-13

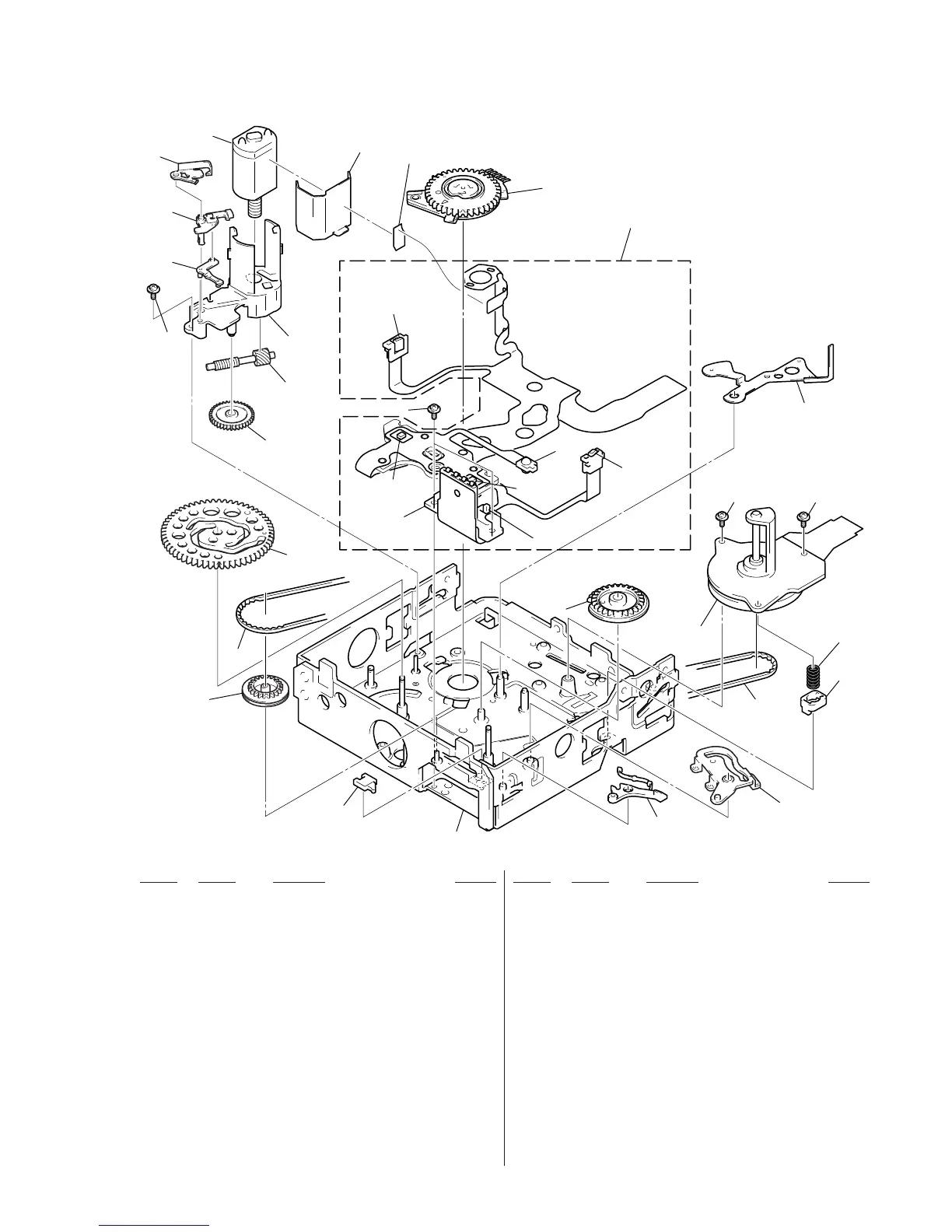

6-1-13. EACH GEARS AND LOADING/CAPSTAN MOTOR ASSEMBLY
801
802
803
804
805
806
807
808
809
811
812
813
814
807
802
819
820
815
816
817
818
810
807
807
M903
M902
S901
S902
S903
CN901
H901
Q901
D901
H902
Q902
Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks
801 3-988-274-01 PULLEY, CONVERSION
802 3-988-276-02 BELT, TIMING
803 3-988-216-01 GEAR, CAM
804 3-988-211-01 GEAR, DECELERATION
805 3-988-210-01 SHAFT, WORM
806 3-988-207-01 HOLDER, MOTOR
807 3-947-503-01 SCREW (M1.4)
808 3-988-303-01 ARM, SPRING HOOK DRIVING
809 3-988-271-01 BASE, SPRING HOOK FULCRUM
810 3-988-302-01 HOOK, TG1 SPRING
811 3-988-208-01 SHIELD, MOTOR
812 1-657-785-11 FP-248 FLEXIBLE BOARD (DEW SENSOR)
813 A-7073-418-A FP-594 FLEXIBLE BOARD, COMPLETE
814 3-988-280-03 ARM, HC DRIVING
815 3-988-239-01 GEAR, GL DRIVING
816 3-988-223-01 ARM, EJECT
817 3-988-224-01 ARM, PINCH PRESS
818 X-3948-431-2 CHASSIS ASSY
819 3-050-170-01 HOLDER
820 3-051-787-02 SPRING (CAP), COMPRESSION COIL
CN901 1-784-723-11 PIN, CONNECTOR 4P
D901 8-719-067-13 DIODE GL453K
H901 8-719-061-28 DIODE HW-105C-FT-V (S REEL)
H902 8-719-061-28 DIODE HW-105C-FT-V (T REEL)
M902 8-835-606-01 MOTOR, DC SCD15A/C-NP (CAPSTAN)
M903 X-3948-346-1 MOTOR ASSY, LOADING
Q901 8-729-907-25 PHOTO TRANSISTOR PT4850F (TAPE END)
Q902 8-729-907-25 PHOTO TRANSISTOR PT4850F (TAPE TOP)
S901 1-771-039-51 SWITCH, PUSH (CASSETTE IN)
S902 1-572-719-32 SWITCH, PUSH (1 KEY) (REC PROOF)
S903 1-771-325-11 ENCODER, ROTARY (SWITCH) (MODE)
