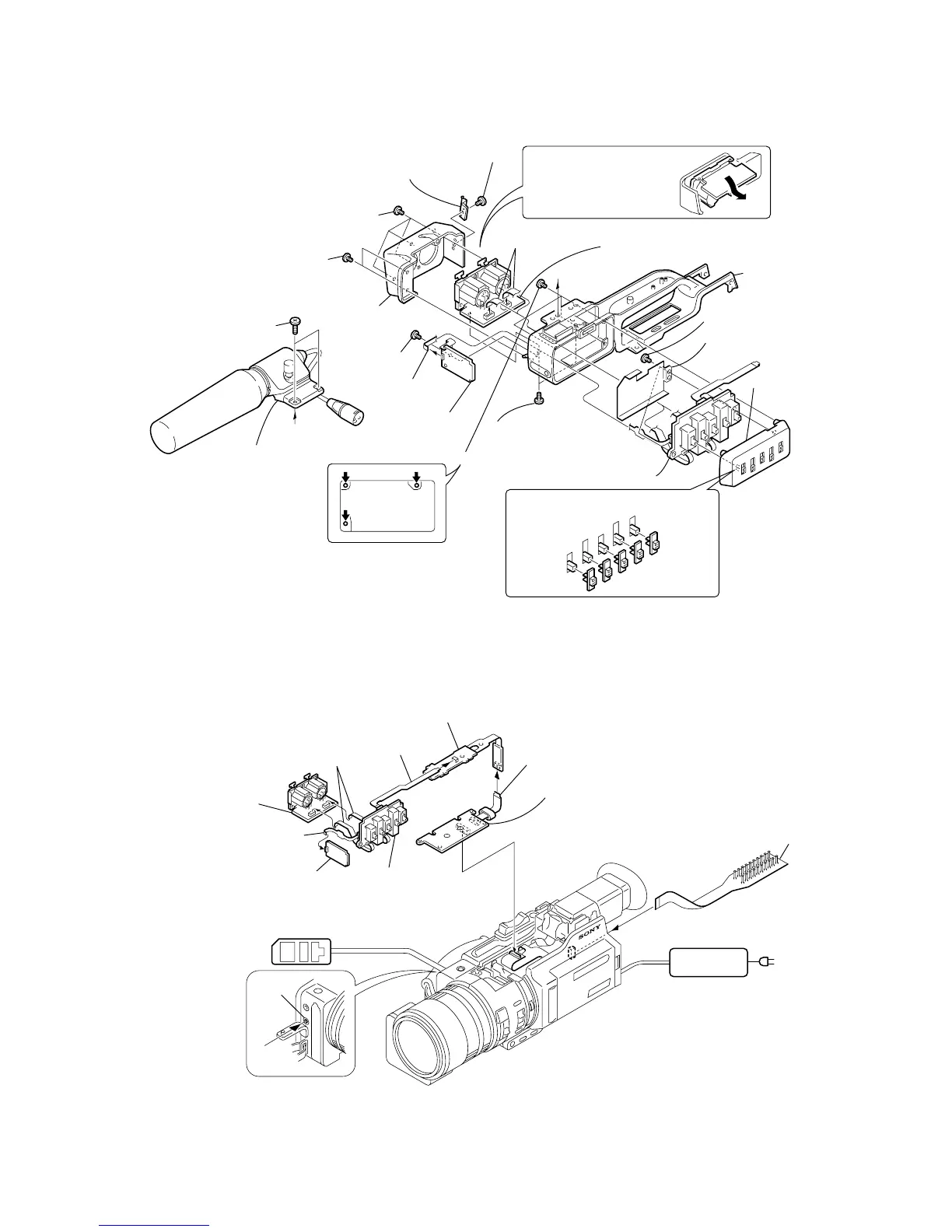

2-5. XD-001, XS-001, XM-001 BOARDS
XM-001 board
XD-001 board
XS-001 board
FP-217 flexible
board (16P)
FP-218 flexible
board (13P)
FP-216 flexible
board (20P)
MA-386D board
FP-202 flexible board (27P)
FK-076 board
Adjustment remote
commander (RM-95)
LANC
jack
AC POWER
ADAPTOR
AC IN
CPC-13 jig
(J-6082-443-A)
[FK-076, XD-001, XS-001, XM-001, MA-386D BOARDS SERVICE POSITION]
2 Microphone holder
assembly
w; Handle (D) assembly,
(Upper) cabinet
4 Two screws
(M2
× 5), spring bolt
qg Three Tapping screws
(M2
× 5)
3 Two screws
(M2 × 5), spring bolt
6 Four screws
(M2.6)
7 Screw (M2.6)
qd Tapping screw
(B2 × 5)
qa Handle cabinet (R)
8 Cable holder
qh Two tapping screws (B2 × 5)
qf XD-001 board,
DD bracket
0 XM-001 board,
XLR sheet metal
Remove the XM-001 board
and XLR sheet metal in the
direction of the arrow.
qk XS-001 board
ql Handle cabinet (L)
assembly
qs FP-218 flexible
board (13P)
5 Two FP-217 flexible
boards (16P)
qj SW insulated plate
1 Two screws
(B3
× 10)
A
A
PRECAUTION DURING INSTALLATION
9
When installing it, align the five switch
positions as arrow.
