SECTION 4
PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS
4-1 4-2
FRAME SCHEMATIC DIAGRAM

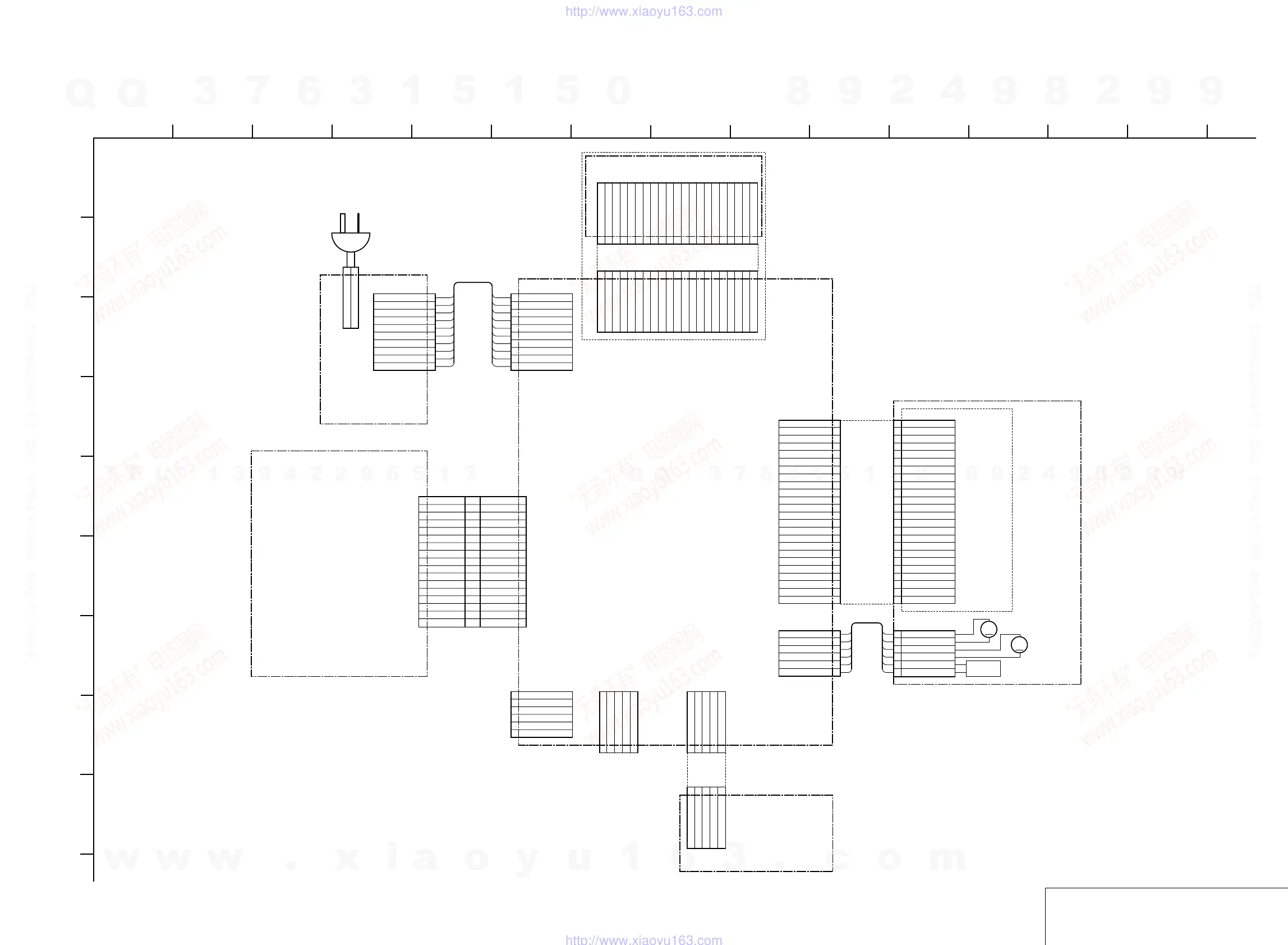

4-1. FRAME SCHEMATIC DIAGRAM
M
M
SWITCHING
REGULATOR
IF-124 BOARD
MV-045 BOARD
MS-203 BOARD
BASE UNIT
OPTICAL
DEVICE
SW+8V
SC_IN (N)
2P
AC_IN (L)
2 1
1
1-963-090-11
Harness
PM-119
10P
CNXXX
10P
CN501
MTR GND 2
EVER+11V 3
EVER+5V 4
SW+3.3V 5
SW+5V 6
GND 7
P-CONT 8
POWER SW 9
EVER-10V 10
SW+8V1
MTR GND2
EVER+11V3
EVER+5V4
SW+3.3V5
SW+5V6
GND7
P-CONT8
POWER SW9
EVER-10V10
GND
POWER_SWITCH
SW-10V
A_MUTE
EVER+3.3V
PCONT
SW+3.3V
V_MUTE
SCO
GND
SOO
SIO
XIFBUSY
XIFCS
3.3V_MNT
SYSRST
GND
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
GND
POWER_SWITCH
SW-10V
A_MUTE
EVER+3.3V
PCONT
TXD
PI TE FE GND RF
5 4 3 2 1
OCSW1 / REV CKSW1 / FWD GND / CTL LDM- LDM+
1 2 3 4 5
OCSW1 / REV
CKSW1 / FWD
GND / CTL
LDM-
LDM+
5 4 3 2 1
RXD
GND
+3.3V
V2REF0
RF MON
1
2
3
4
5
6
SW+3.3V
V_MUTE
SCO
GND
SOO
SIO
XIFBUSY
XIFCS
3.3V_MNT
SYSRST
GND
17P
CN401
17P
*CN106
6P
CN105
5P CN103 TO SERVO JIG 5P CN202
CN001
5P
1-830-283-11
FFC
(FIM-003)
1.0 pitch
24P
CN101
GND (LD) 1
LD (650) 2
N.C 3
N.C 4
PD 5
LD (780) 6
VR (650) 7
VR (780) 8
N.C 9
VoE/e+g 10
Vcc 11
Vc 12
GND (PDIC) 13
VoF/f+n 14
VoB/b 15
VoA/a 16
RF 17
(LO:DVD, HI:CD) MSW 18
VoD/d 19
VoC/c 20
TRK- 21
TRK+ 22
FCS+ 23
FCS- 24
24P
CN101
GND (LD)24
LD (650)23
N.C22
N.C21
PD20
LD (780)19
VR (650)18
VR (780)17
N.C16
VoE/e+g15
Vcc14
Vc13
GND (PDIC)12
VoF/f+n11
VoB/b10
VoA/a9
RF8
(LO:DVD, HI:CD) MSW7
VoD/d6
VoC/c5
TRK-4
TRK+3
FCS+2
FCS-1
1-830-282-12
FFC
(FMD-004)
0.5 pitch
HARNESS
MD-108
1-963-091-11
SP-
SP+
LIMIT
(GND) LIMIT
SL-
SL+
1
2
3
4
5
6
6P
CN201
SP-
SP+
LIMIT
(GND) LIMIT
SL-
SL+
6
5
4
3
2
1
6P
CNXXX
SPINDLE
MOTOR
LIMIT
SWITCH
SLIDER
MOTOR
ER-037 BOARD
1-830-284-11
FFC (FEM-001) 1.0 pitch
V
*CN302 21P 21P CN901
VIDEO-5V
GND
SC
GND
SY
GND
Y/G
GND
Cb/B
XV_MUTE
Cr/R
WIDE
SW+5V
DISC/XEXT
+11V
ERAUDIOR
EURO_GND_AUDIO
SW+8V SW+8V SW+8V
21 20 19 18 17 16 15 14 13 12 11 10
9 8 7 6 5 4 3 2 1
V -5V GND SC GND SY GND Y/G GND Cb/B XV_MUTE Cr/R WIDE +5V DISC/XEXT +11V ERAUDIOR GND (AU) EUROVY ERAUDIOL RGBSEL
1 2 3 4 5 6 7 8 9
10 11 12 13 14 15 16 17 18 19 20 21
