Sony DVP-NS32 User Manual

DVP-NS30/NS32/NS33/NS52P
D
C
E
F
B
A
1
2
5
4
3
Power Board
ER-037 Board
IF-124 Board
(INTERFACE)
MV-045 Board
(CPU, Servo-DSP, AVDEC,
DRIVE, VIDEO, AUDIO, POWER)
There are a few cases that the part printed on
this diagram isn’t mounted in this model.
For printed wiring board
CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER
MV-045

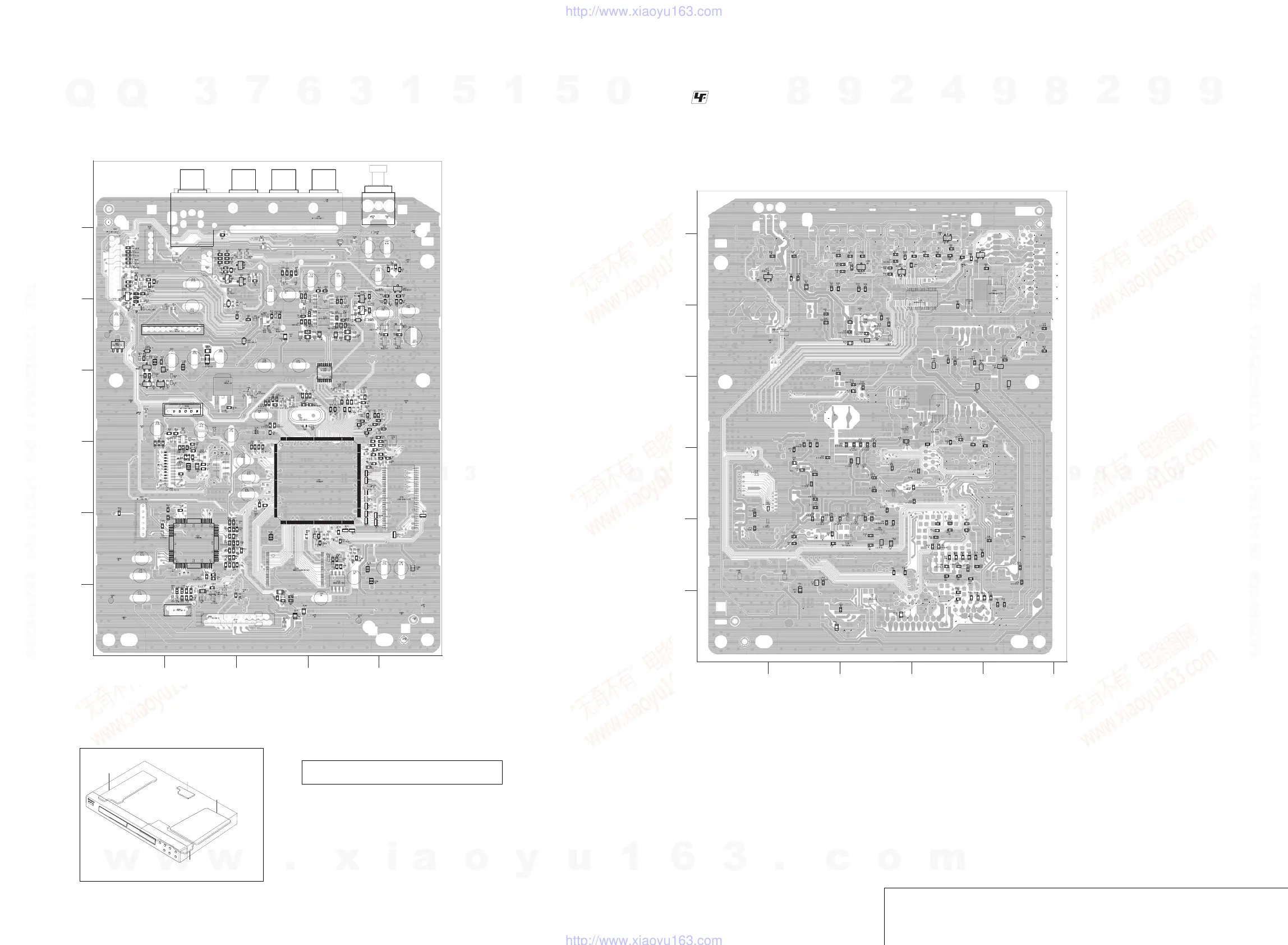

MV-045 (CPU, Servo-DSP, AVDEC, DRIVE, VIDEO, AUDIO, POWER) PRINTED WIRING BOARD
• : Uses unleaded solder.
MV-045 BOARD SIDE A MV-045 BOARD SIDE B
4-5
D
C
E
F
G
B
A
1
2
5
4
3
MV-045 BOARD
A SIDE
IC101 C-4
IC102 B-3
IC103 B-4
IC104 C-5
IC108 A-2
IC110 D-2
IC201 B-2
IC401 E-4
IC402 E-4
IC404 G-5
IC405 G-4
IC406 E-4
Q101 C-4
Q102 D-2
Q103 C-4
Q304 F-3
Q305 F-2
Q307 F-4
Q371 F-1
Q372 F-1
Q373 E-1
Q374 F-1
Q401 E-3
Q402 E-5
Q403 E-3
Q404 E-4
Q405 F-4
Q406 E-5
Q409 E-5
Q410 F-5
Q414 F-3
Q417 F-2
Q501 E-1
Q502 E-1
Q503 D-1
Q504 D-1
D201 A-2
D310 E-2
D501 A-3
D402 E-4
D403 F-4
D405 E-4
B SIDE
IC105 B-3
IC106 D-4
IC107 D-3
IC303 F-5
IC304 F-4
IC403 E-3
IC501 A-3
Q407 F-3
Q408 F-3
Q411 F-1
Q416 E-3
D308 F-4
D309 F-4
D401 E2
D404 E-3
