Sony DVP-NS32 User Manual

7-2
DVP-NS30/NS32/NS33/NS52P
1.0 ± 0.08 Vp-p

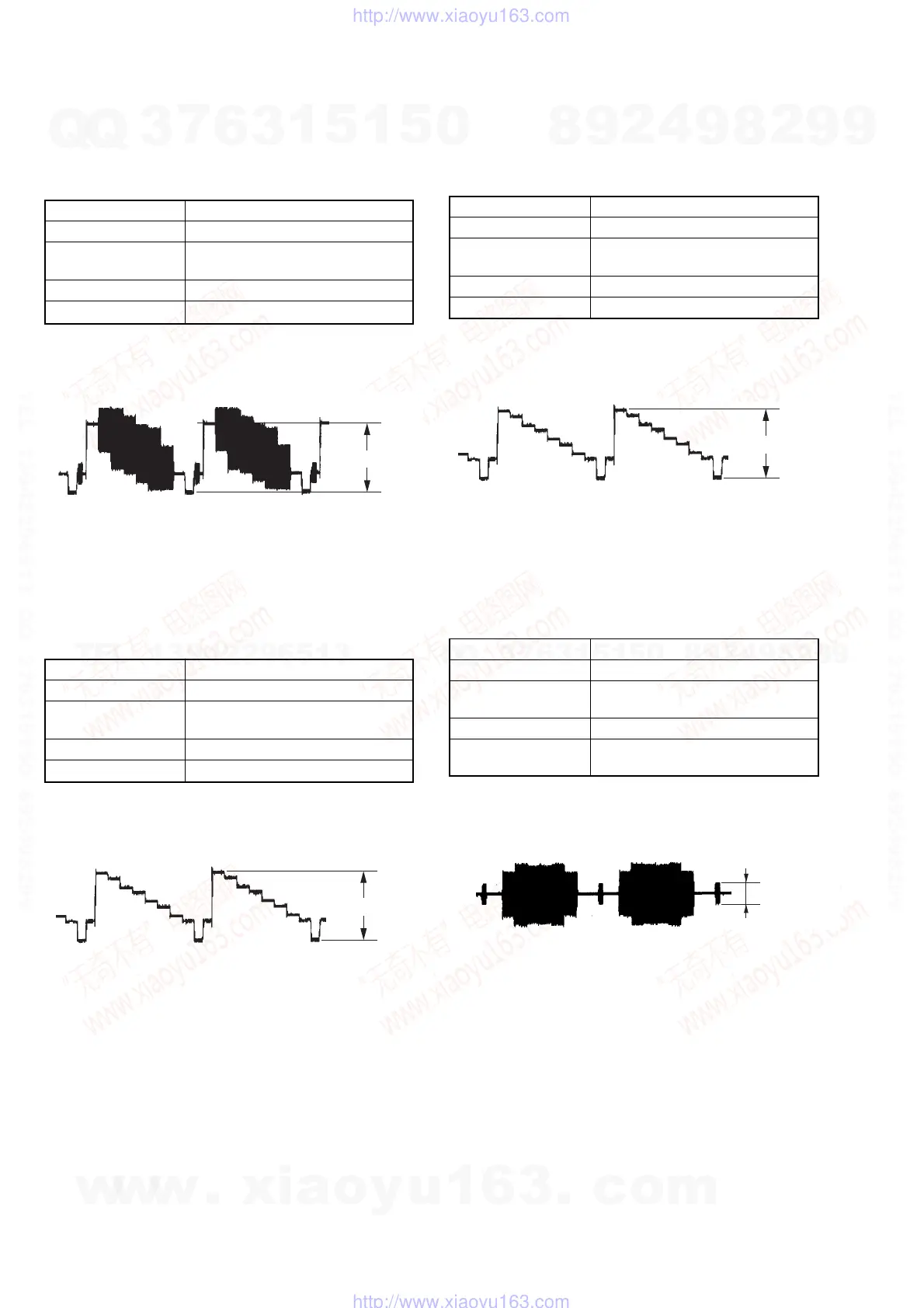

7-2. ADJUSTMENT OF VIDEO SYSTEM
1. Checking Video Level
<Purpose>
Checking Video Level the NTSC/PAL standard, and if not correct,
the brightness will be too large or small.
Mode HLX-504
Signal Color bars 100%
Test point LINE OUT (VIDEO) connector
(75 Ω terminated)
Instrument Oscilloscope
Specification 1.0 ± 0.08 Vp-p
Adjusting method:
1) In the Video Signal menu “1” Color Bar 100% play back.
2) Confirm that the Video Level is 1.0 ± 0.08 Vp-p.
Fig. 7-1.
2. Checking Progressive Video Output Level
<Purpose>
Check progressive video output level. If it is incorrect, correct
brightness will not be attained when connected to, for instance,
projector.
Mode HLX-504
Signal Color bars 100%
Test point COMPONENT VIDEO OUT (Y)
connector (75 Ω terminated)
Instrument Oscilloscope
Specification 1.0 ± 0.08 Vp-p
Adjusting method:
1) In the Video Signal menu “1” Color Bar 100% play back.
2) Confirm that the Y level is 1.0 ± 0.08 Vp-p.
Fig. 7-2.
3. Checking S Video Output S-Y
<Purpose>
Check S-terminal video output. If it is incorrect, pictures will not be
displayed correctly in spite of connection to the TV with a S-terminal
cable.
Mode HLX-504
Signal Color bars 100%
Test point S VIDEO OUT (S-Y) connector
(75 Ω terminated)
Instrument Oscilloscope
Specification 1.0 ± 0.08 Vp-p
Checking method:
1) In the Video Signal menu “1” Color Bar 100% play back.
2) Confirm that the S-Y level is 1.0 ± 0.08 Vp-p.
Fig. 7-3.
4. Checking S Video Output S-C
<Purpose>
This checks whether the S-C satisfies the NTSC/PAL standard. If it
is not correct, the colors will be too dark or light.
Mode HLX-504
Signal Color bars 100%
Test point S VIDEO OUT (S-C) connector
(75 Ω terminated)
Instrument Oscilloscope
Specification A = 286 ± 30 mVp-p (NTSC)
A = 300 ± 100 mVp-p (PAL)
Checking method:
1) In the Video Signal menu “1” Color Bar 100% play back.
2) Confirm that the S-C burst is “A”.
Fig. 7-4.
A
1.0 ± 0.08 Vp-p
1.0 ±0.08 Vp-p
w w w . x i a o y u 1 6 3 . c o m
Q Q
3
7
6 3
1 5 1 5
0 9 9
2
8 9
4 2
9 8
T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3
Q Q
TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
http://www.xiaoyu163.com

Sony DVP-NS32 Specifications

General

Audio decoders	DTS
Frequency response CD	2 - 20000 Hz
Audio dynamic range CD	99 dB
Frequency response DVD	2 - 44000 Hz
Audio dynamic range DVD	103 dB
I/O ports	1x Video out 1x SCART 1x Analog Stereo output Audio output(coaxial)
Dimensions (WxDxH)	430 x 237.7 x 43 mm
Power requirements	220–240 V, 50/60 Hz
Disc types supported	DVD+R, DVD+RW
Product color	Black
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	25 - 80 %
Power consumption (standby)	0.1 W
Power consumption (typical)	11 W

Weight and Dimensions

Weight	1950 g
