DVP-NS30/NS32/NS33/NS52P
4-27 4-28E
For Schematic Diagram
• Refer to page 4-25 for printed wiring board of Power Board.

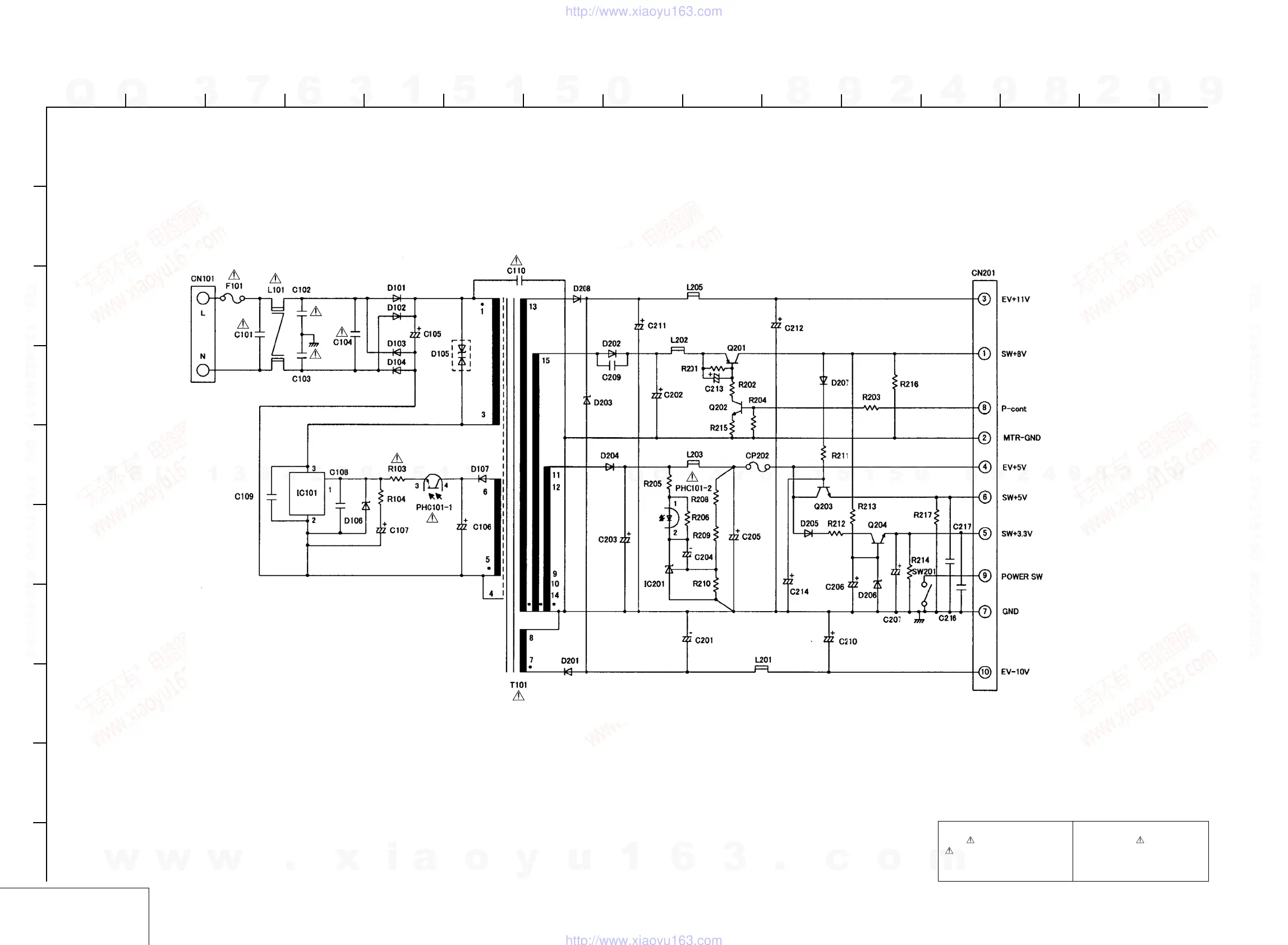

POWER BOARD
POWER BLOCK (2P-P1-9054F)
-REF.NO.:1000 SERIES-
XX MARK:NO MOUNT
NO MARK:PB MODE
MARKED:MOUNT TABLE
The components identified by
mark or dotted line with mark
are critical for safety.
Replace only with part
number specified.
Les composants identifiés par
une marque sont critiques
pour la sécurité. Ne les
remplacer que par une pièce
portant le numéro spécifié.
POWER BOARD
POWER BLOCK
