Sony EVI-D30 User Manual

11
EN
Focusing on a subject
To focus the camera on a subject
automatically
Press the AUTO button.
The camera focuses on the subject at the center of
the screen automatically.
To focus the camera on a subject
manually
After pressing the MANUAL button, press either
FAR or NEAR button to have the camera focus on
the subject.

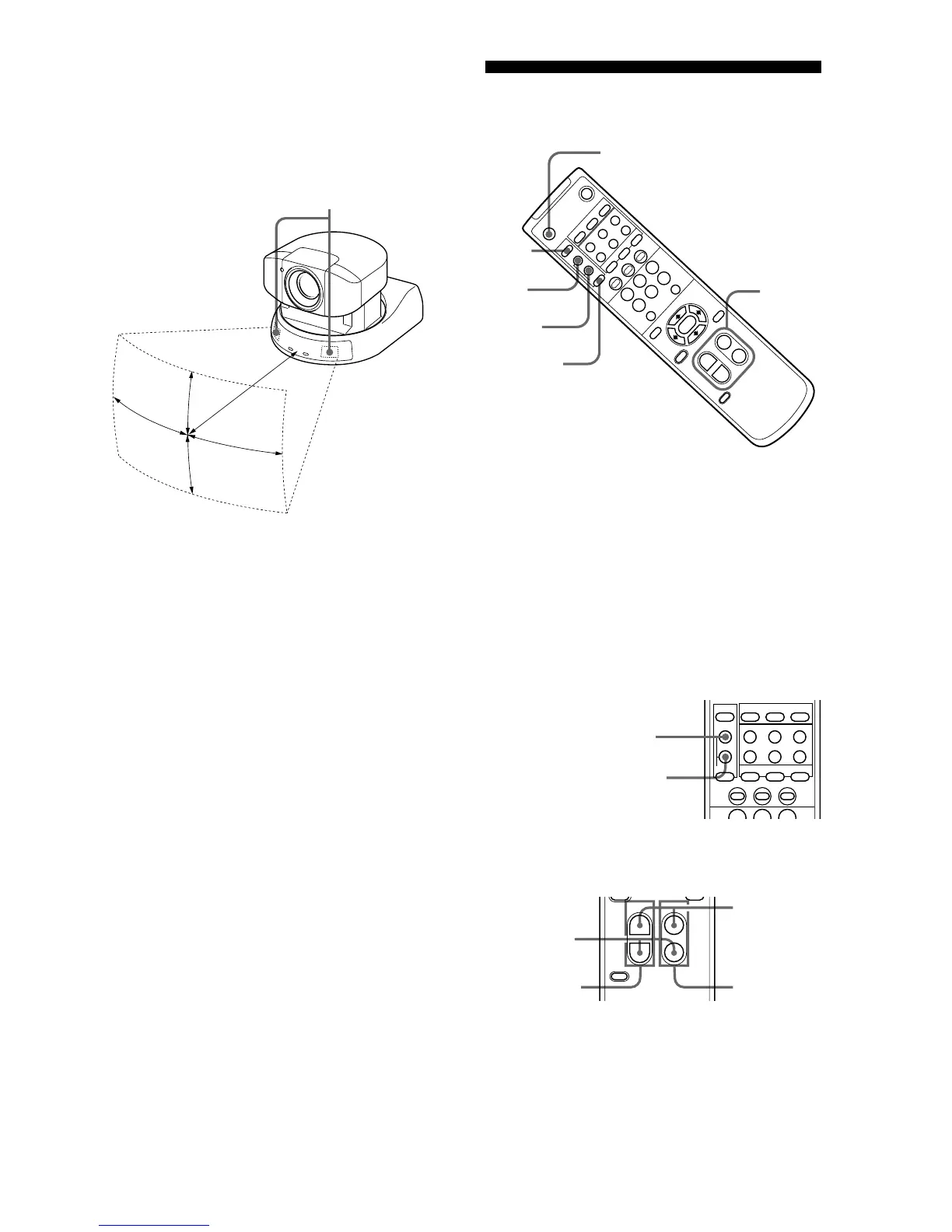

Operating range of the remote
commander
Use the remote commander within the range
described below, facing it toward the receptor for
the remote commander.
30°
30°
60°
7m
60°
Receptor for remote
commander
Operating more than one camera with
the remote commander
Notice the CAMERA NO. switch at the rear of the
camera to be operated.
Press a CAMERA SELECT button whose number
is the same as the number to which the CAMERA
NO. switch is set.
A pressed CAMERA SELECT button lights up
when either of the other button is pressed.
Adjusting the Camera
1 AUTO 2 3
CAEMRA SELECT
ON/OFFFAR ENTRYOFFSET
FOCUS
CHASE
AT
MD
NEAR AUTO ZOOM AE
ON/OFF
MANUAL DETECTFRAME
DATA SCREEN
STD REV
123
START/STOP FRAME DISPLAY
Focusing on a far subject
Focusing on a near subject
Zooming
Press either of the four ZOOM buttons.
L/R
DIRECTION SET
SLOW· ZOOM· FAST
TT
WW
Subject
appears
farther away.
(Wide angle)
Zooms in or
out of
subject fast.
(FAST side)
Subject
appears
closer.
(Telephoto)
Zooms in or
out of subject
slowly.
(SLOW side)
Shooting with back lighting
When you shoot a subject with a light source
behind it, the subject becomes dark. In such a case,
press the BACK LIGHT button.
To cancel the function, press the BACK
LIGHT button again.
AUTO
FAR
NEAR
BACK LIGHT
ZOOM
MANUAL
1
AUTO
2
3
CAMERA SELECT
ON/OFFFAR ENTRYOFFSET
FOCUS
POWER
BACK LIGHT
CHASE
AT
MD
NEAR
MENU
HOME
CURSOR
L/R
DIRECTION SET
PAN-TILT
RESET
AUTO ZOOM
AE
ON/OFF
MANUAL
DETECTFRAME
PRESET
RESET
POSITION
PAN-TILT/CURSOR
SLOW·
ZOOM·
FAST
TT
WW
DATA SCREEN
STD REV
123
456
START/STOP FRAME DISPLAY
