22
EN
General

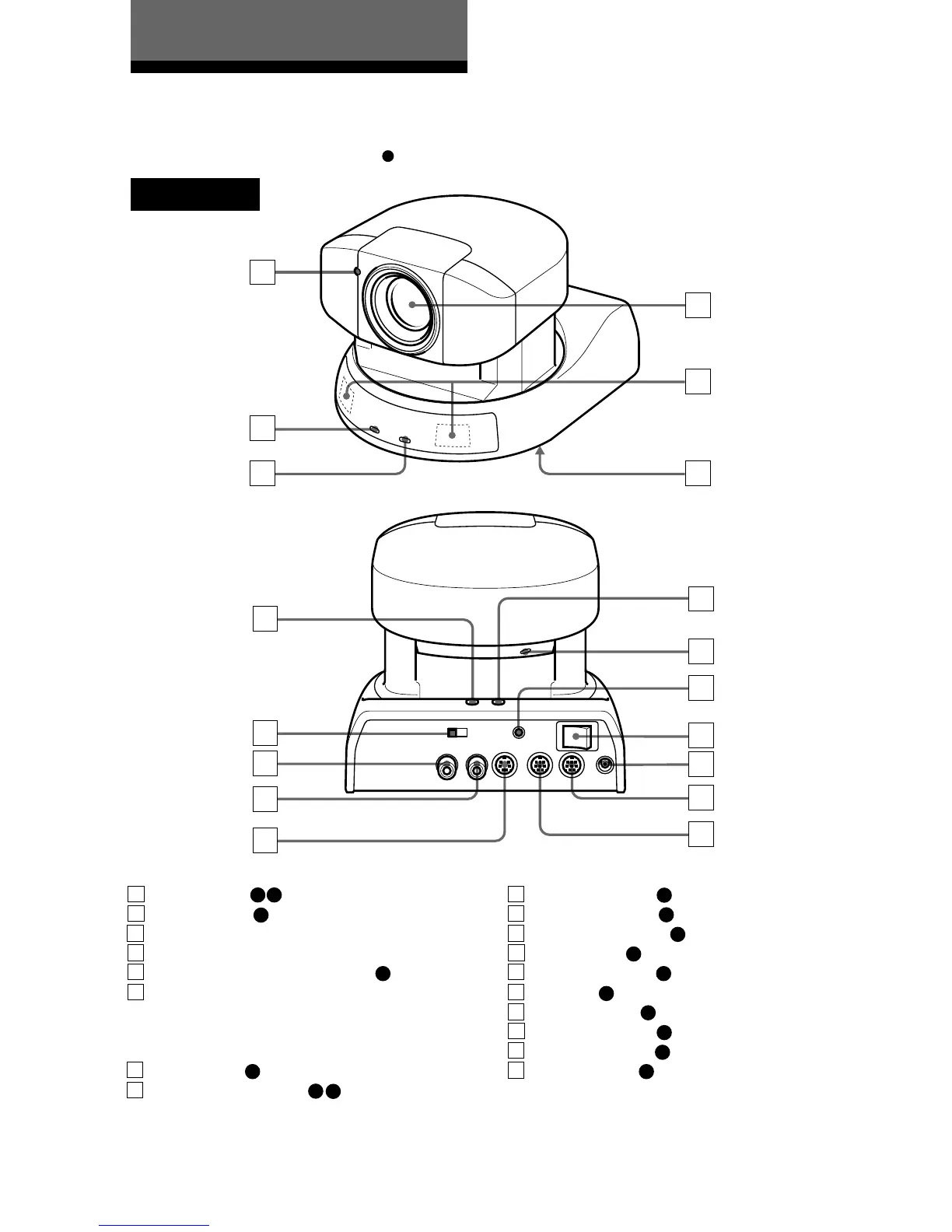

Locations of Controls
1 Caution lamp
10 15
2 POWER lamp 8
3 RECEIVE lamp
4 Lens
5 Receptor for remote commander
11
6 IR OUT switch
Use when equipment such as a VTR and
personal computer, and/or another Color Video
Camera are connected with a VISCA cable.
7 TIME button
8
8 CAMERA NO. switch 7
11
For details, see the pages indicated in .
Main unit
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
18
9 VIDEO OUT jack 6
10
AUDIO OUT jack 6
11
S VIDEO OUT jack 6
12
DATE button 8
13
BACK UP switch
25
14
MIC jack 6
15
POWER switch 8
16
DC IN 13.5V jack 6
17
VISCA OUT jack 6
18
VISCA IN jack 6

Table of Contents

Other manuals for Sony EVI-D30

Preview: Service Manual
Service Manual114 pages

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Sony EVI-D30 and is the answer not in the manual?

Sony EVI-D30 Specifications

EVI-D30

Camera Specifications IconCamera Specifications
video signalNTSC Color, EIAJ standards
picture element countApprox. 410, 000
effective picture element countApprox. 380, 000
Lens IconLens
zoom lensElectromotion twelve fold
focal length5.4 to 64.8mm
apertureF1.8 to F2.7
Video Performance IconVideo Performance
horizontal angle4.4° to 48.8°
minimum illumination7 lux (F1.8) with 50IRE
horizontal resolution460 TV
Input/Output Terminals IconInput/Output Terminals
video outputRCA pin jack, 1Vpp, 75 ohm unbalanced
s video output4 pin mini DIN
audio outputRCA pin jack, monaural
Power and Environmental IconPower and Environmental
input voltageDC 12 to 14 V
power consumption11 W
operating temperature0° to 40° (32° to 104°F)
Dimensions and Weight IconDimensions and Weight
camera dimensionsApprox 142 × 109 × 164 mm
remote commander dimensionsApprox 56 × 26 × 210 mm
camera massApprox. 1, 200 g

EVI-D31

Camera Specifications IconCamera Specifications
video signalPAL Color, CCIR standards
picture element countApprox. 470, 000
effective picture element countApprox. 440, 000
Lens IconLens
zoom lensElectromotion twelve fold
focal length5.4 to 64.8mm
apertureF1.8 to F2.7
Video Performance IconVideo Performance
horizontal angle4.4° to 48.8°
minimum illumination7 lux (F1.8) with 50IRE
horizontal resolution450 TV
Input/Output Terminals IconInput/Output Terminals
video outputRCA pin jack, 1Vpp, 75 ohm unbalanced
s video output4 pin mini DIN
audio outputRCA pin jack, monaural
Power and Environmental IconPower and Environmental
input voltageDC 12 to 14 V
power consumption11 W
operating temperature0° to 40° (32° to 104°F)
Dimensions and Weight IconDimensions and Weight
camera dimensionsApprox 142 × 109 × 164 mm
remote commander dimensionsApprox 56 × 26 × 210 mm
camera massApprox. 1, 200 g
