Preparations

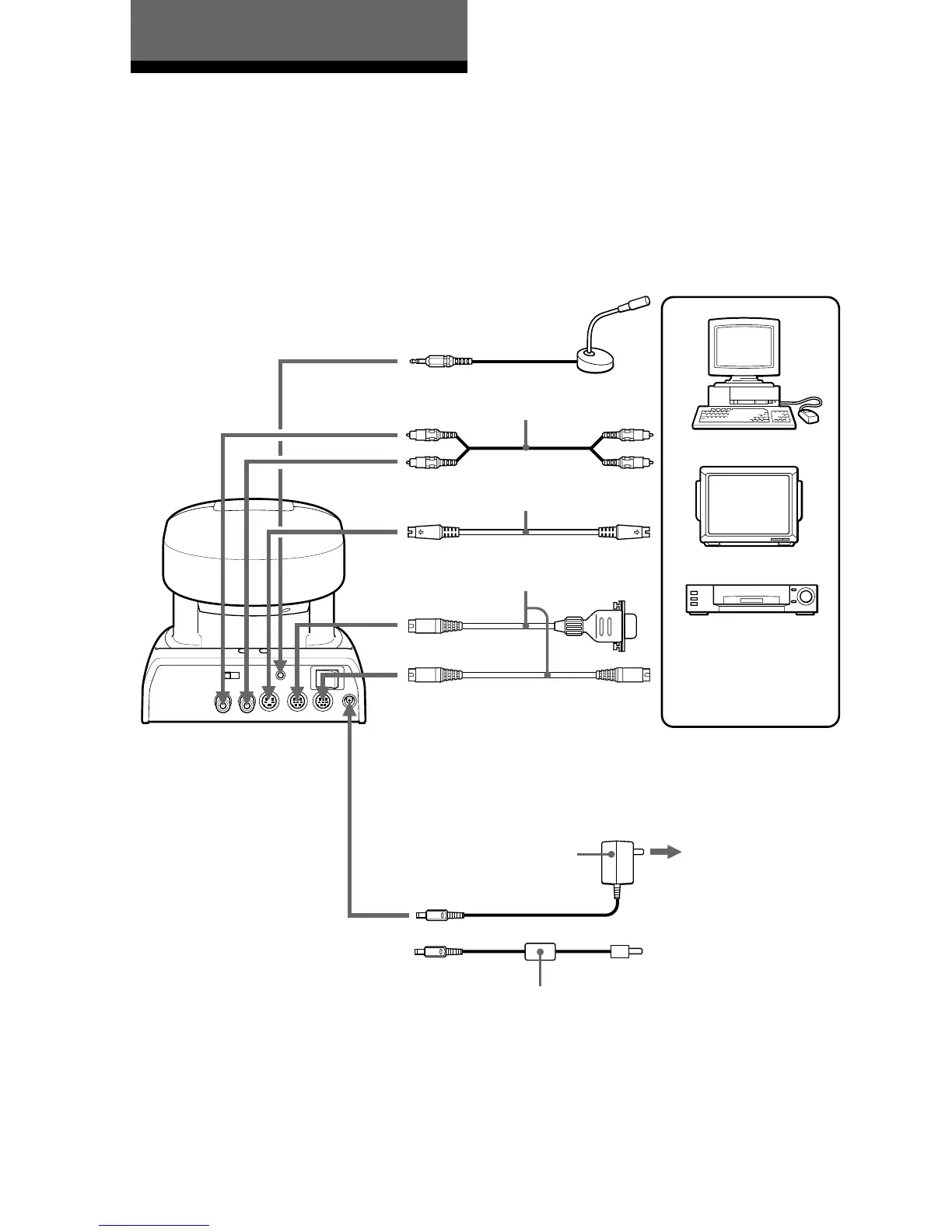

Connections
Connect your Color Video Camera to a personal
computer, TV or VCR equipped with an audio/
video input. Some connections may require extra
cables. Refer to the instructions manual of the
equipment to be connected.
to S-Video input
Microphone
(not supplied)
Personal computer, TV
or VCR with an audio/
video input jack
to Audio
input (black)
to Video input
(yellow)
to AUDIO
OUT (black)
to MIC
to VIDEO
OUT (yellow)
VISCA cable (not supplied)*
to VISCA IN
to S VIDEO OUT
S-Video cable
(not supplied)
Audio/Video
cable (supplied)
to RS-232C
to VISCA OUT To VISCA IN of other
EVI-D30
(in case of connecting
to more cameras)
to DC IN 13.5V
AC power adaptor AC-EV2
(supplied with EVI-D30)
to AC outlet
* When the video camera is connected to a personal computer with a VISCA cable, you can operate the video camera
with the personal computer.
AC power adaptor AC-EV3
(supplied with EVI-D31)
