Sony Handycam DCR-HC28 User Manual

24

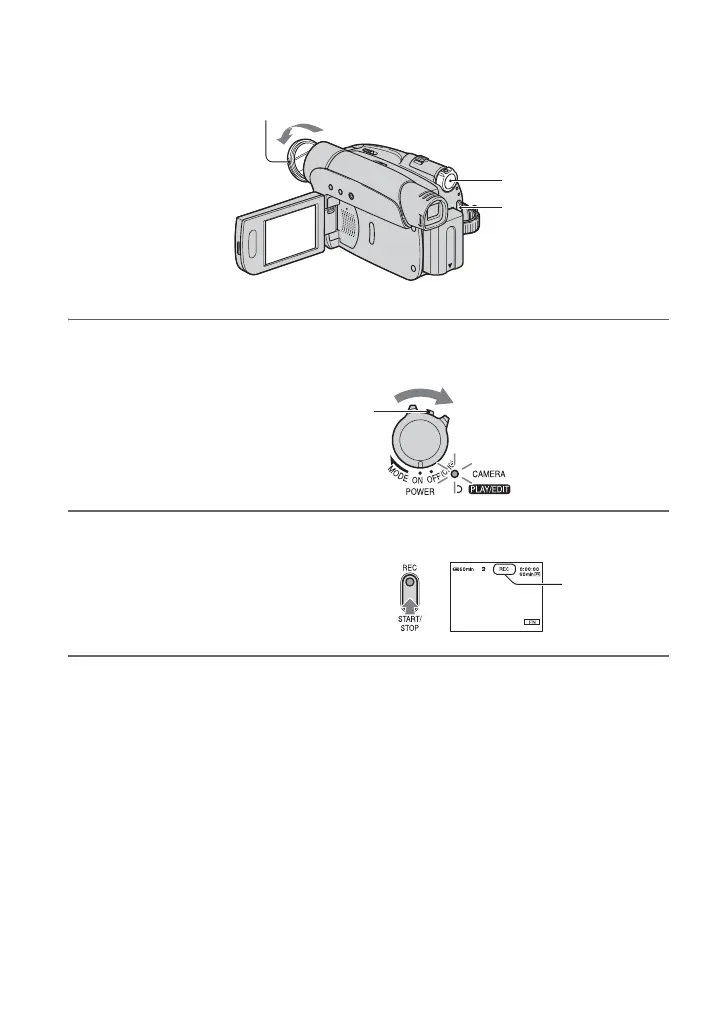

Recording
1 Slide the POWER switch in the direction of the arrow repeatedly to turn on
the CAMERA lamp.
2 Press REC START/STOP to start recording.
To stop movie recording
Press REC START/STOP again.
Lens cap
Remove the lens cap by pressing both knobs
on the sides of the cap
POWER switch
REC START/
STOP
If the POWER switch is set to OFF(CHG),
slide it while pressing the green button.
A
The indicator (A) changes [STBY] to [REC].

Sony Handycam DCR-HC28 Specifications

Imaging

imaging device	1/6" CCD
pixel gross	680K
video actual	340K Pixels

Convenience

steadyshot image stabilization	Yes
minimum illumination	5 Lux
low light capability	NightShot Plus system

Inputs and Outputs

analog audio/video outputs	Yes (Multi A/V)
digital audio/video inputs	Yes (via i.LINK)
digital audio/video outputs	Yes (via i.LINK)

Display

lcd size	2.5"
lcd resolution	123K Pixels
viewfinder resolution	123K Pixels

Optics and Lens

35mm equivalent	44-880mm (4:3), 48-960mm (16:9)
aperture	f1.8-3.1
optical zoom	20X

Power

power consumption	1.8W/2.1W (VF/LCD)
battery type	InfoLITHIUM (NP-FP30)
power requirements	7.2V (battery), 8.4V (AC Adaptor)

Dimensions and Weight

weight	14 oz (420g)
measurements	2 5/8" x 3 1/8" x 4 1/2" (65 x 79 x 113mm)
