Sony HBD-TZ130 - CONTROL Board, STANDBY Board; USB Board

HBD-TZ130
11

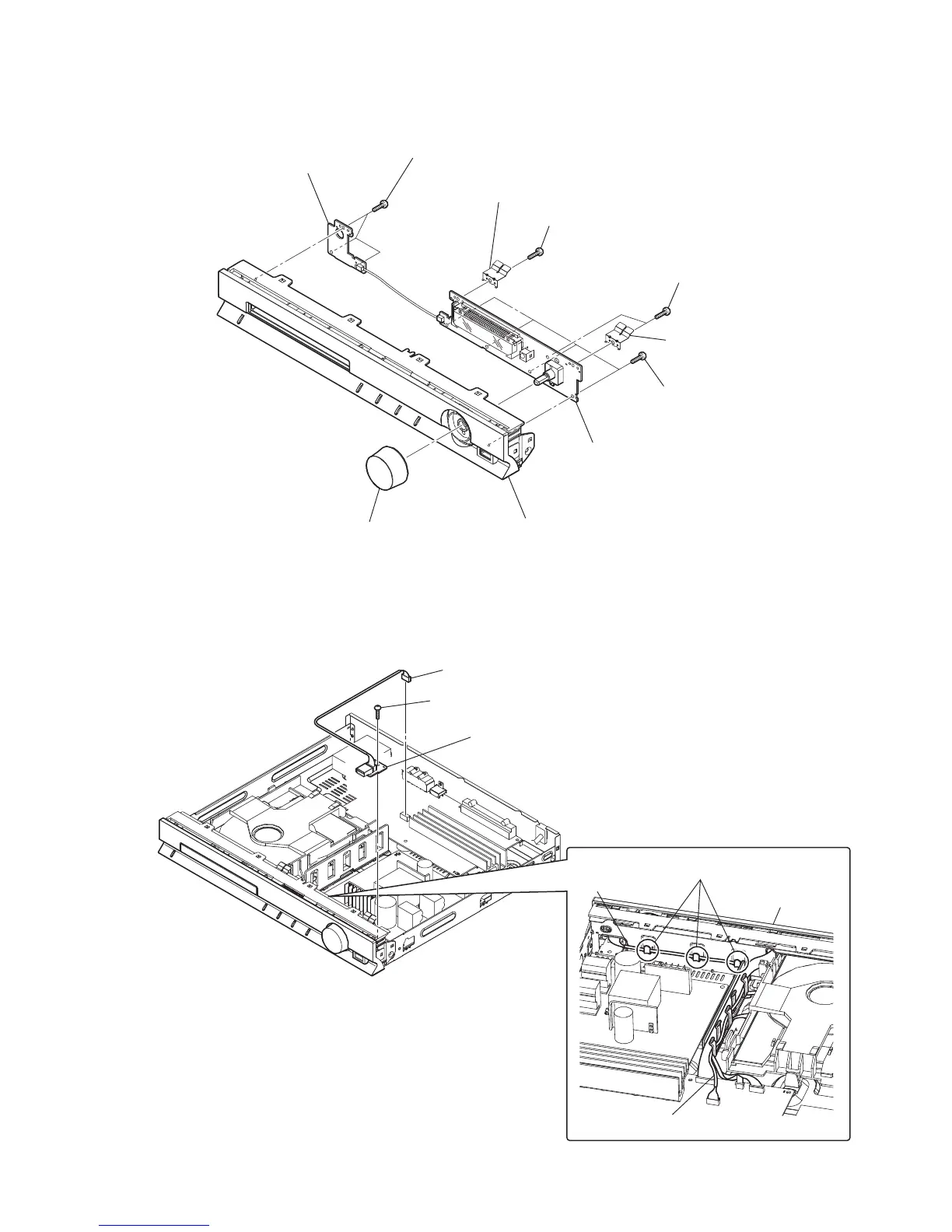

2-4. CONTROL BOARD, STANDBY BOARD
2-5. USB BOARD
1 volume knob
7 CONTROL board
3 grounding spring
5 grounding spring
9 STANDBY board
0 front cabinet assy
2 screw
(+BVTP 2.6 (3CR))
4 two screws
(+BVTP 2.6 (3CR))
6 four screws
(+BVTP 2.6 (3CR))
8 three screws
(+BVTP 2.6 (3CR))
Have the USB wire spread on the inside
of the claws of the chassis.
USB wire
Arranging the USB wire
USB wire
front cabinet
1 CON103 (5P)
2 screw
(+BVTT 3 u7)
3 USB board
