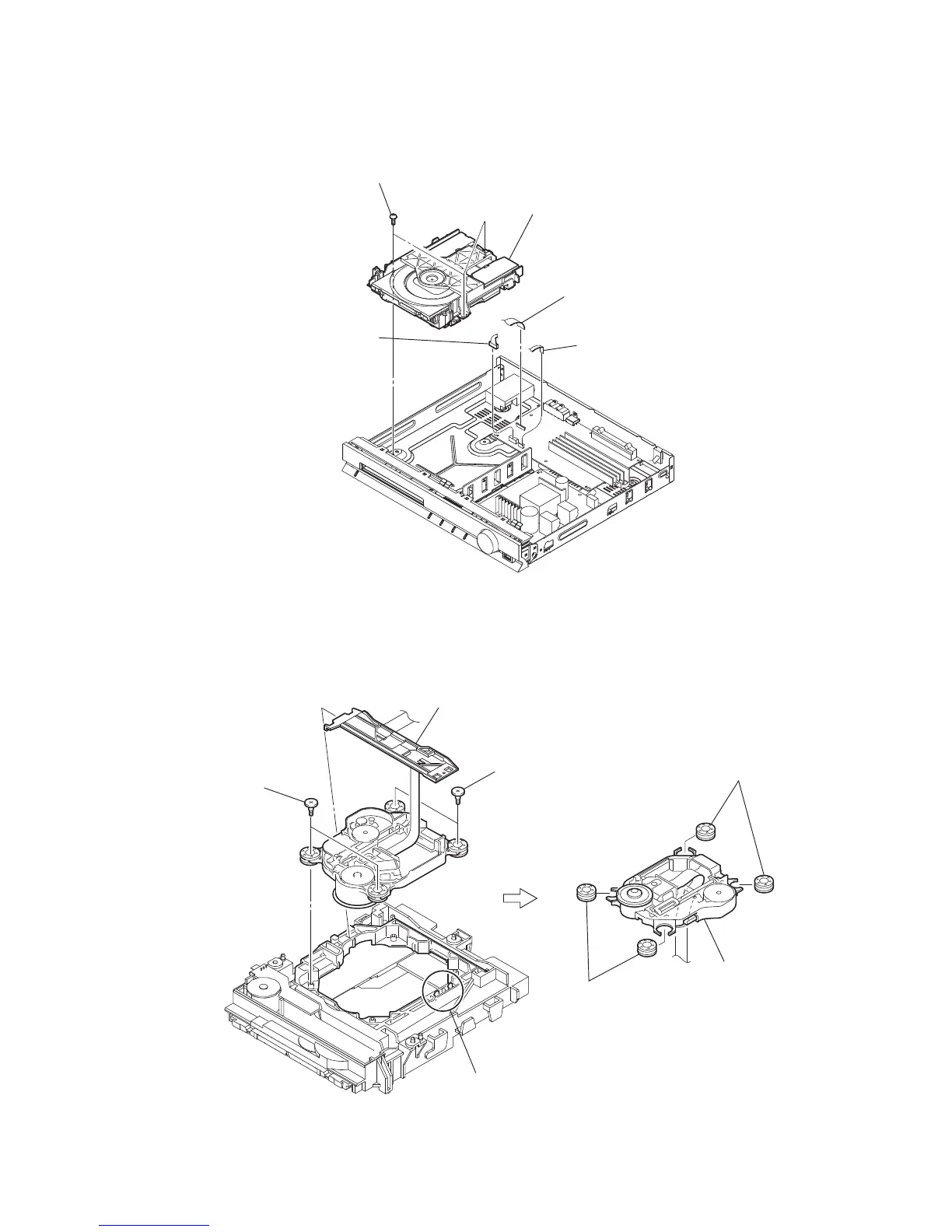

2-8. DVD MECHANISM DECK SECTION
2-9. OPTICAL PICK-UP
4 three screws
(+BVTT 3 u7)
5 DVD mechanism deck section
2 wire (flat type) (5 core)
(CON101)
3 CON102 (6P)
1 wire (flat type) (24 core)
(CON100)
2 FFC holder
5 two insulators
6 two insulators
7 optical pick-up
(KHM-313)
1 two claws
3 two screws
(PTP 2 u 5)
4 two screws
(PTP 2 u 5)
