HBD-TZ130
HBD-TZ130
2424
1
2
3
3
2
2
4
front cabinet section
chassis section
SECTION 4
EXPLODED VIEWS
1 9-885-148-07 DOOR
2 9-885-144-64 +BVTT 3X6 BZN3
3 9-885-149-85 CASE SCREW
4 9-885-148-14 TOP COVER
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
Note:
• Items marked “*” are not stocked since
they are seldom required for routine ser-
vice. Some delay should be anticipated
when ordering these items.
• The mechanical parts with no reference
number in the exploded views are not sup-
plied.
• Accessories are given in the last of the
electrical parts list.
• Abbreviation
AR : Argentina model
AUS : Australian model
BR : Brazilian model
CH : Chinese model
CND : Canadian model
E3 : 240V AC area in E model
E12 : 220 – 240V AC area in E model
E32 : 110 – 240V AC area in E model
SAF : South African model
SP : Singapore model
TH : Thai model

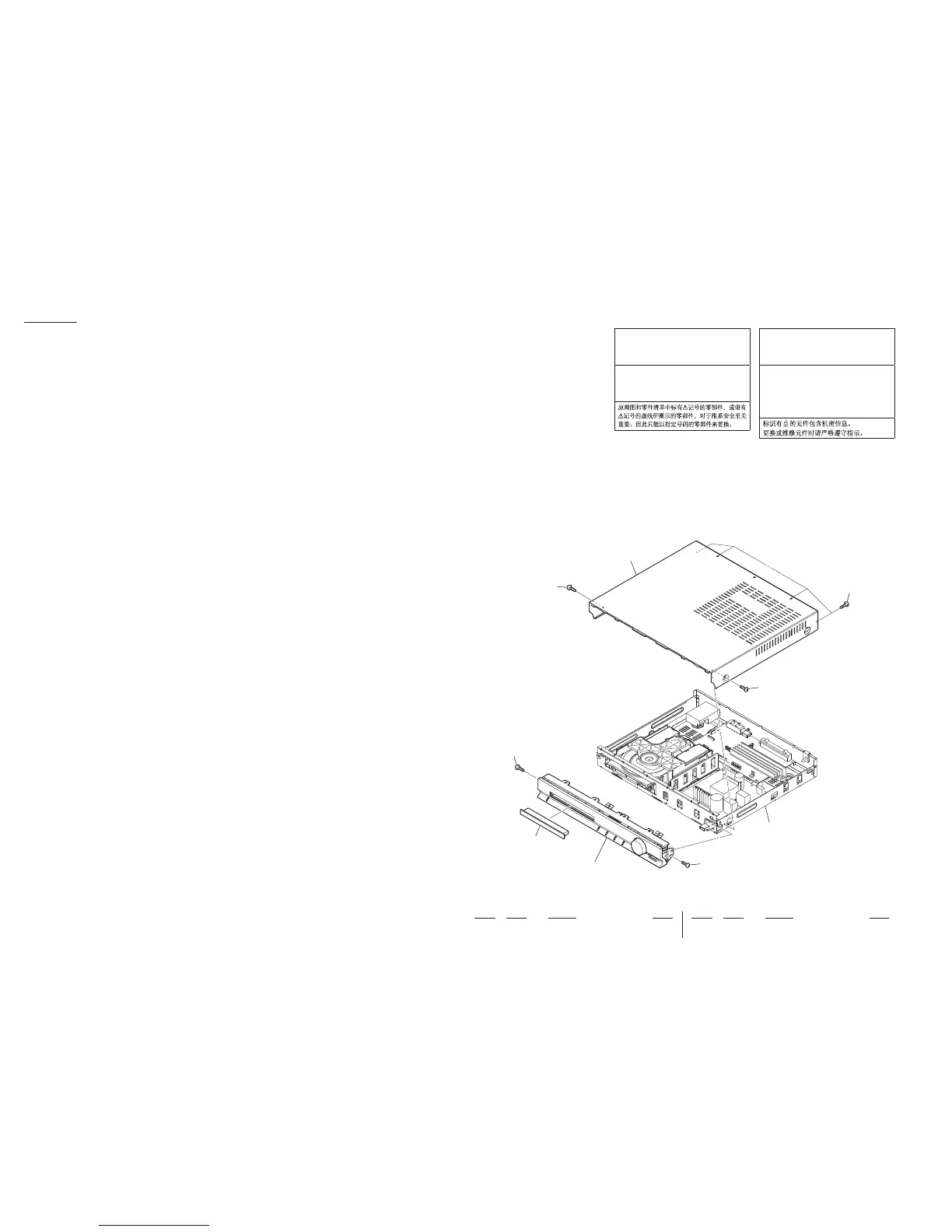

4-1. OVERALL SECTION
The components identifi ed by mark 0
or dotted line with mark 0 are critical for
safety.
Replace only with part number specifi ed.
Les composants identifi és par une marque
0 sont critiques pour la sécurité.
Ne les remplacer que par une pièce por-
tant le numéro spécifi é.
The components identifi ed by mark 9 con-
tain confi dential information.
Strictly follow the instructions whenever the
components are repaired and/or replaced.
Les composants identifi és par la marque
9 contiennent des informations confi den-
tielles.
Suivre scrupuleusement les instructions
chaque fois qu’un composant est remplacé
et / ou réparé.
MEMO
To Next Page
