HBD-TZ130
Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark
51 9-885-148-08 VOLUME KNOB
52 9-885-149-61 FRONT CABINET ASSY (EXCEPT US)
52 9-885-149-62 FRONT CABINET ASSY (US)
53 9-885-150-24 VFD PCB ASM
54 3-087-053-01 +BVTP2.6 (3CR)
55 9-885-144-66 +BVTT 3X7 CZN3 (POINT CIRCLE)
56 9-885-150-27 FLEXIBLE CABLE (15 CORE)

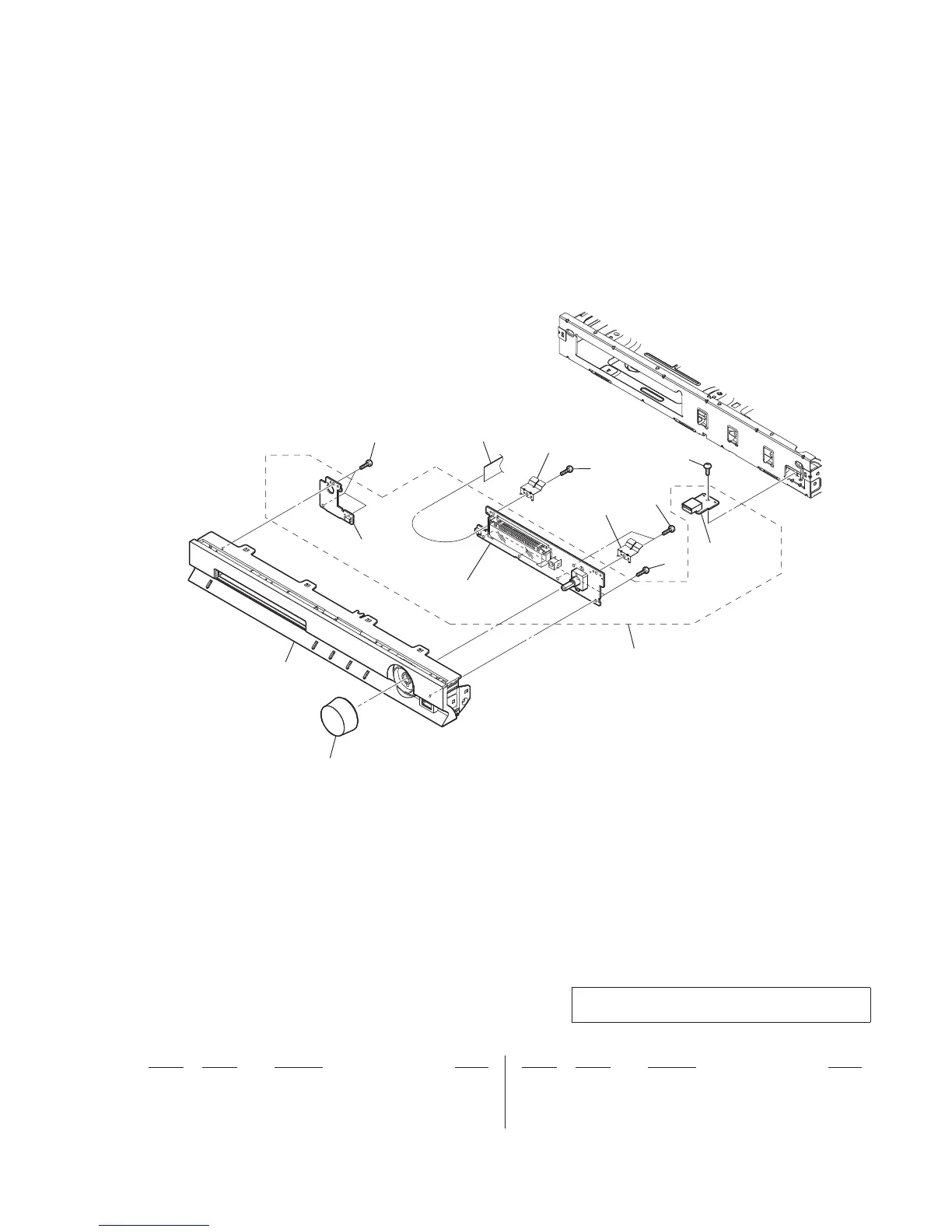

4-2. FRONT CABINET SECTION
51
52
53
54
54
54
54
55
56
not supplied
not supplied
not supplied
(STANDBY board)
not supplied
(CONTROL board)
not supplied
(USB board)
Note: If the wire (fl at type) was replaced, fold it some as the
wire (fl at type) before replacement.
