HBD-TZ130

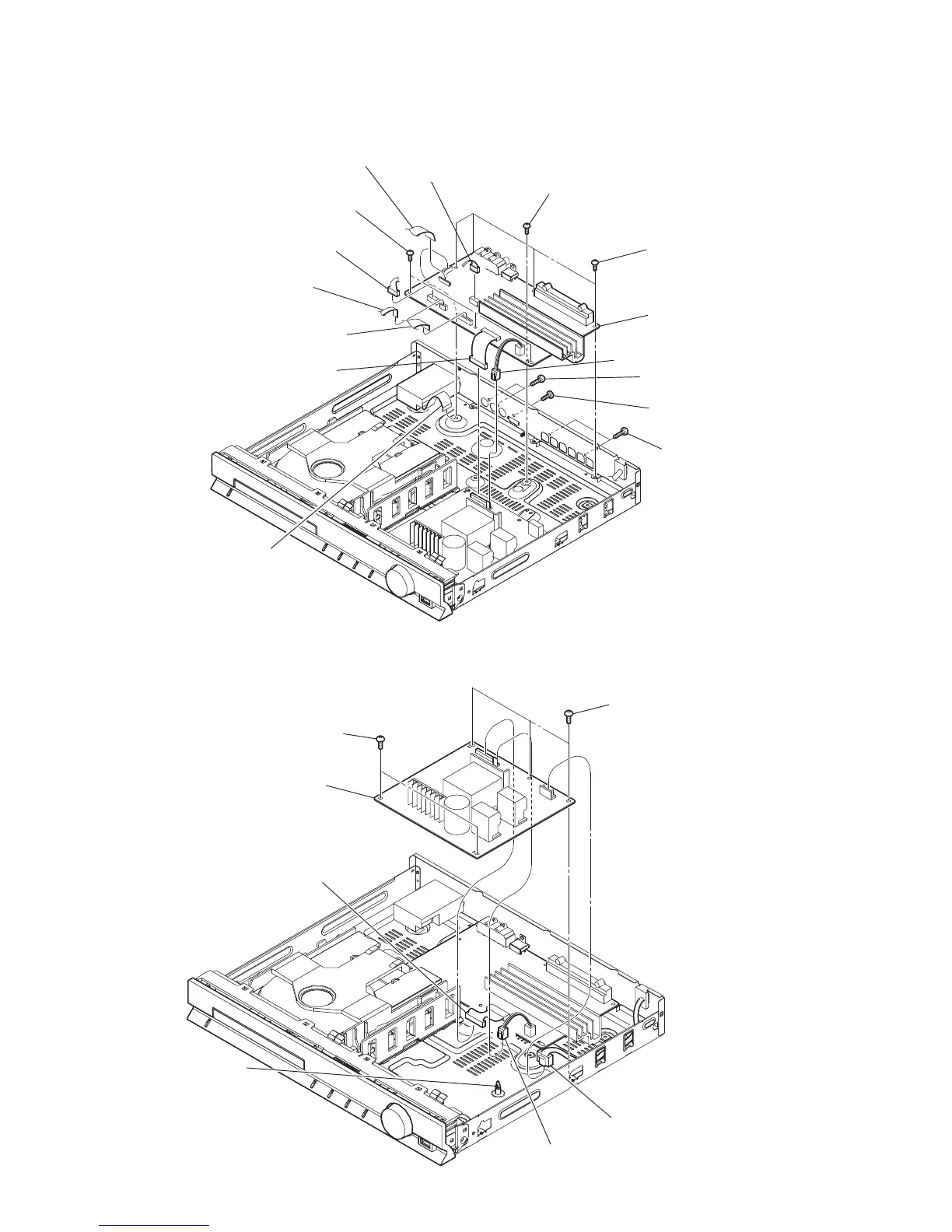

2-6. MAIN BOARD

2-7. POWER BOARD

9 four screws

(+BVTT 3 u7)

qa heat sink screw

qs two screws

(+P 3 u10)

qf two screws

(+P 3 u10)

qd screw

(+BVTT 3 u6)

0 three screws

(+BVTT 3 u7)

3 wire (flat type) (15 core)

(CON302)

4 wire (flat type) (5 core)

(CON101)

6 wire (flat type) (24 core)

(CON100)

7 wire (flat type) (9 core)

(CON301)

1 CN902 (2P)

8 CON103 (5P)

qg MAIN board

5 CON102 (6P)

2 CN901 (11P)

5 three screws

(+BVTT 3 u7)

4 two screws

(+BVTT 3 u7)

7 POWER board

1 CN900 (2P)

2 CN902 (2P)

3 CN901 (11P)

6 spacer
